| Printer specification parameter table | ||
| project | Project Description | Specifications |
| Model | Resolution | 8 dots/mm(203DPI) |
| Printing method | Direct thermal | |

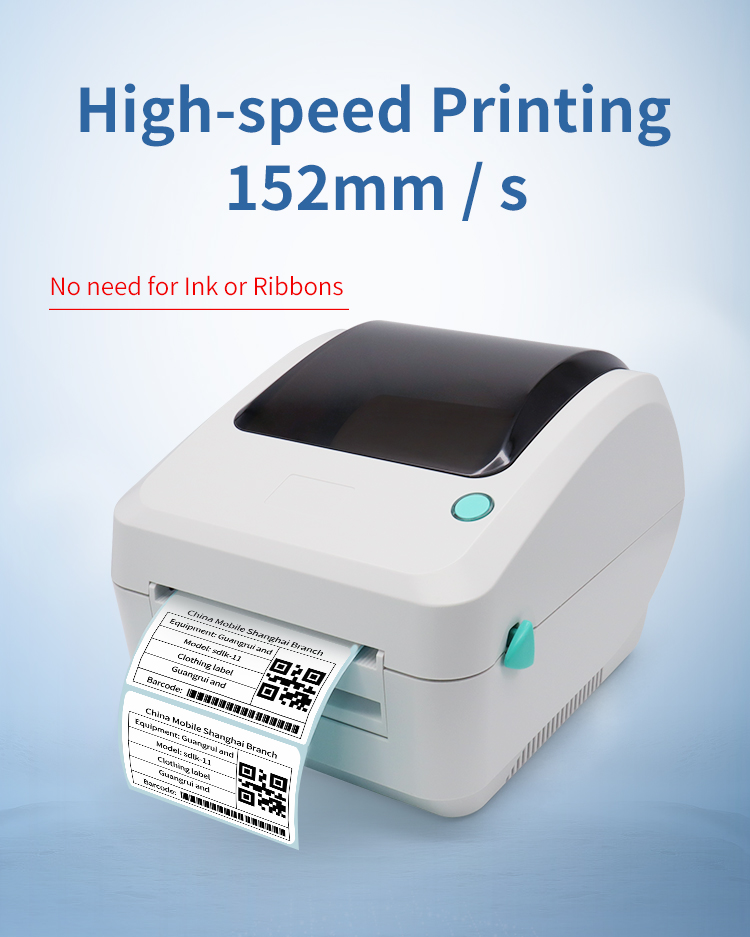

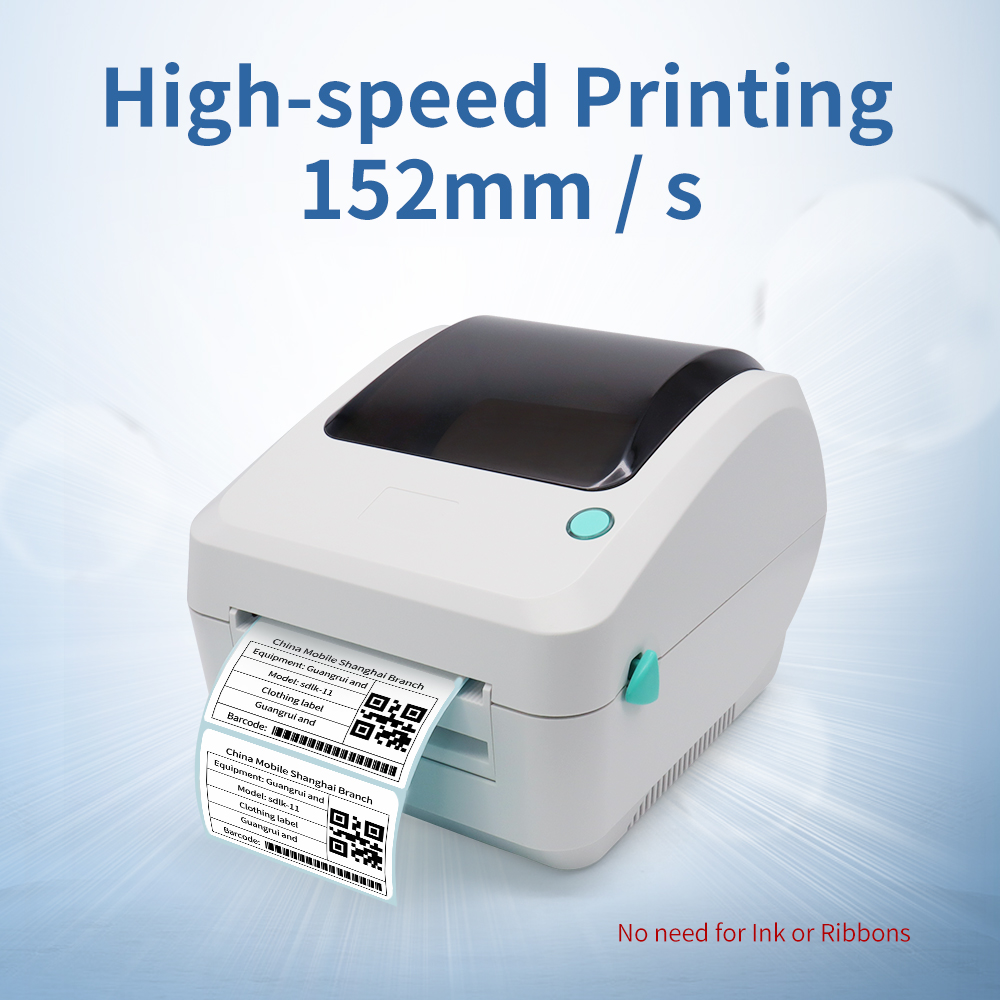

| Printing speed | 152 mm (6”)/S | |
| Max.print width | 108 mm (4.25”) | |

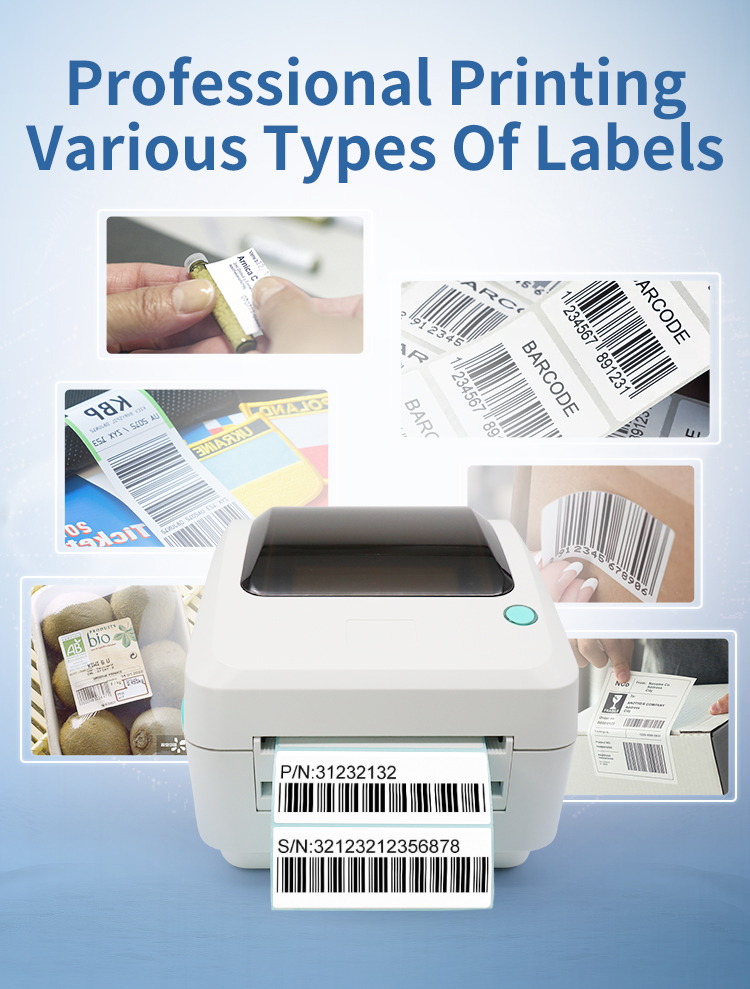

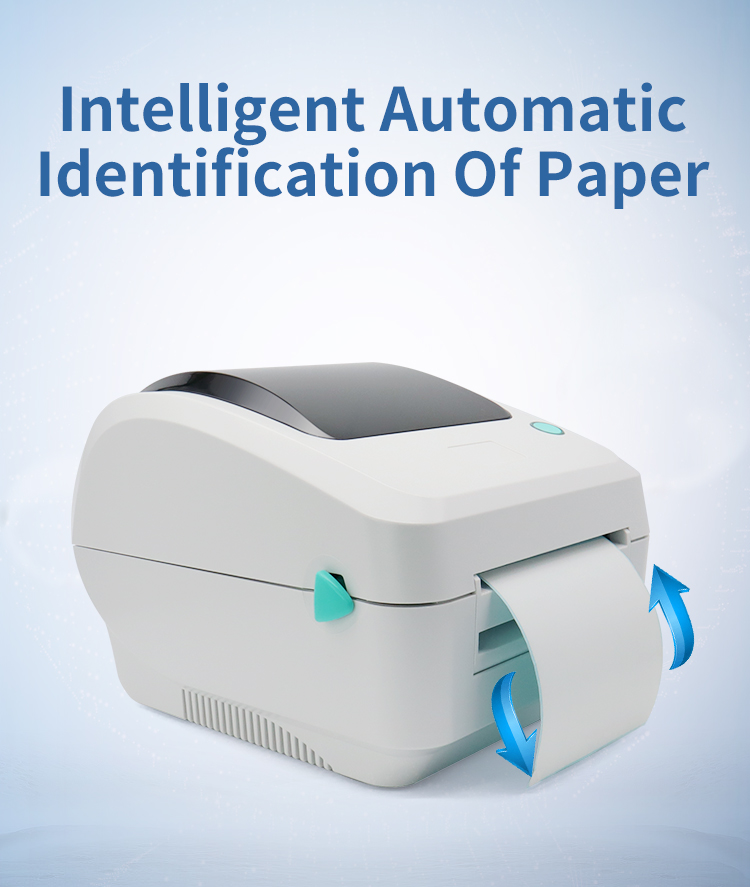

| Media type | Continuous, gap, black mark, fan-fold and punched hole | |

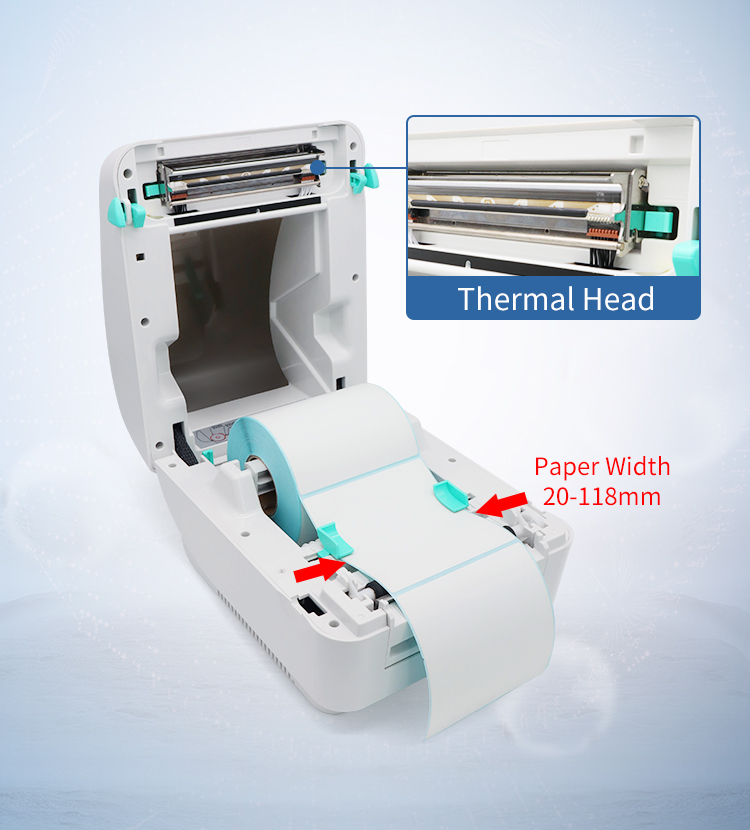

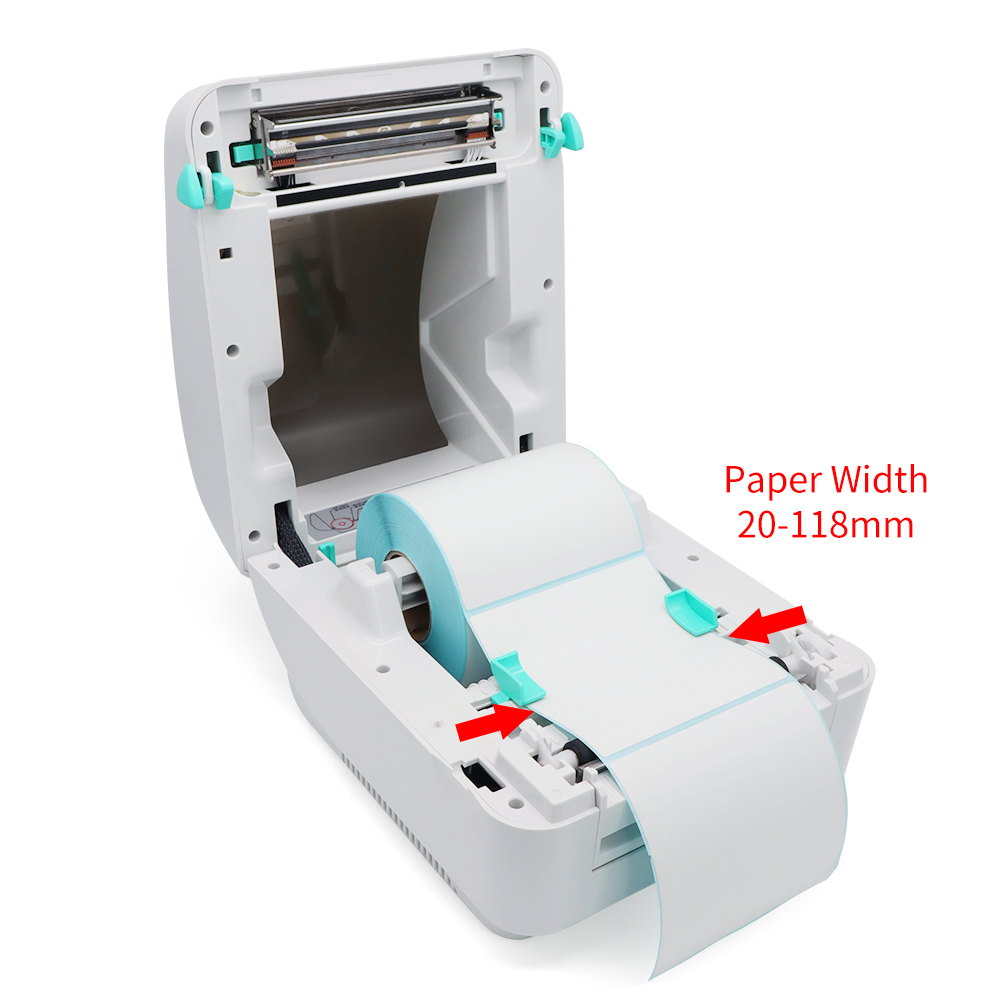

| Media width | 20-118mm (0.78”-4.4”) | |
| Media thickness | 0.06~0.25mm | |
| Label length | 10~1,778mm(0.4''~90'') | |
| Label roll capacity | 127 mm (5“) OD (outside wound) | |
| Enclosure | Double-walled plastic | |

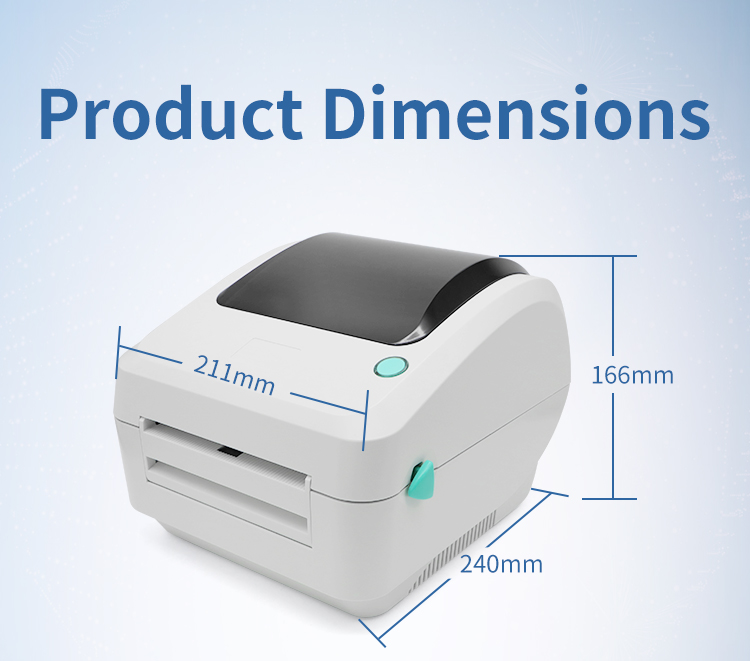

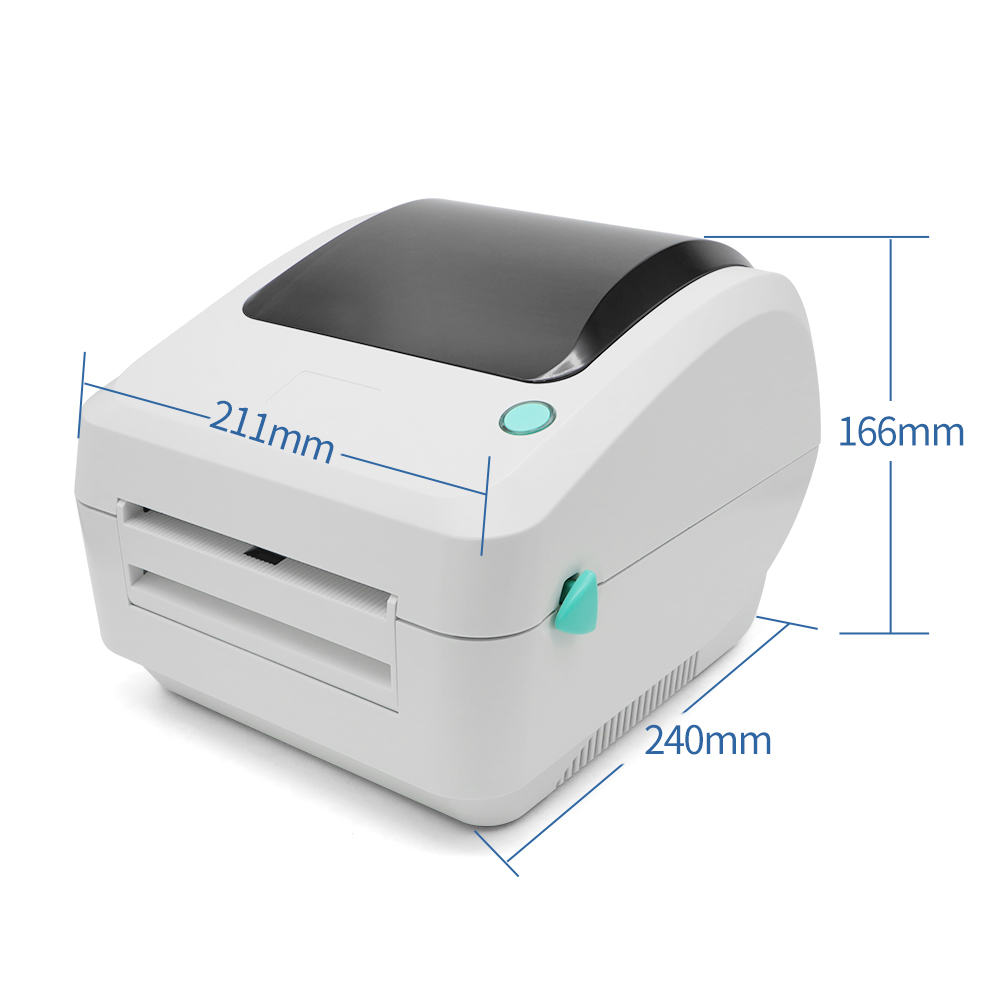

| Physical dimension | 211(D)×240)W)×166)H)mm | |
| Weight | 2.15 kg | |
| Processor | 32-bit RISC CPU | |
| Memory | 4MB Flash Memory, 8MB SDRAM, SD card reader for Flash memory expansion, up to 4 GB | |

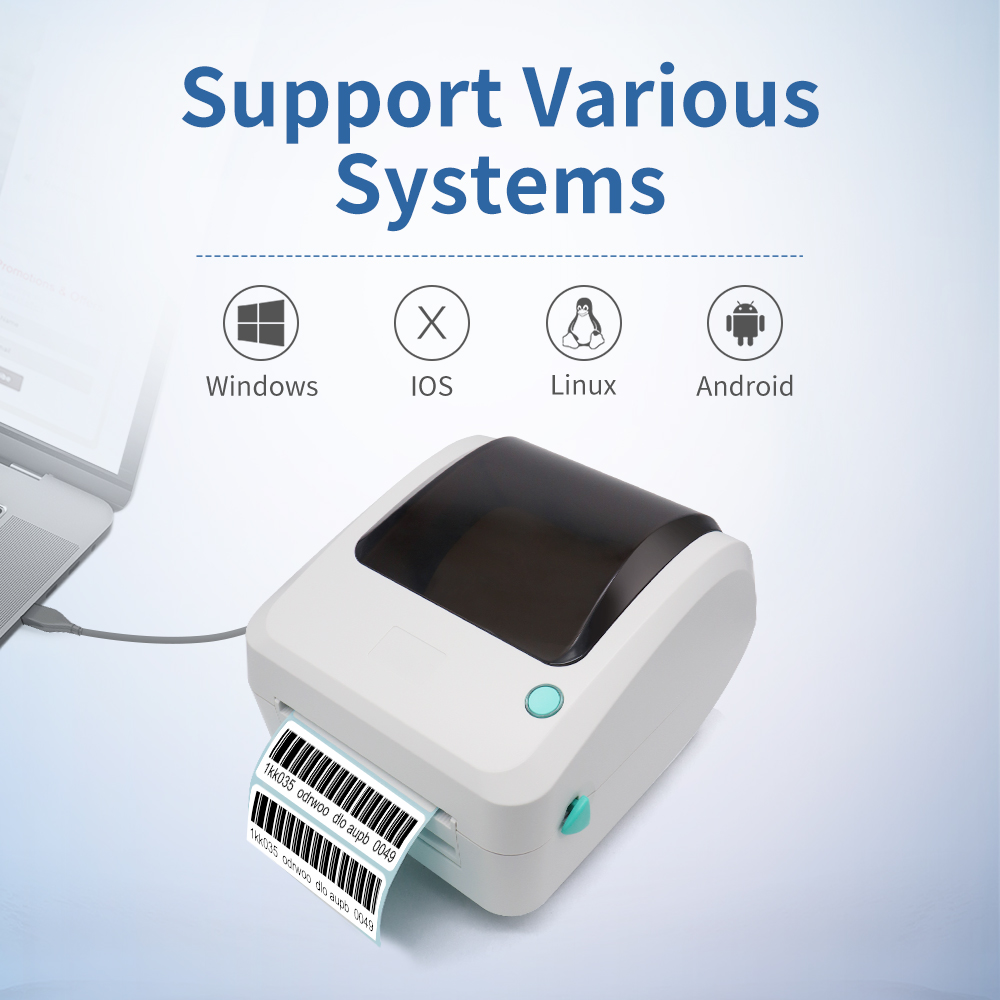

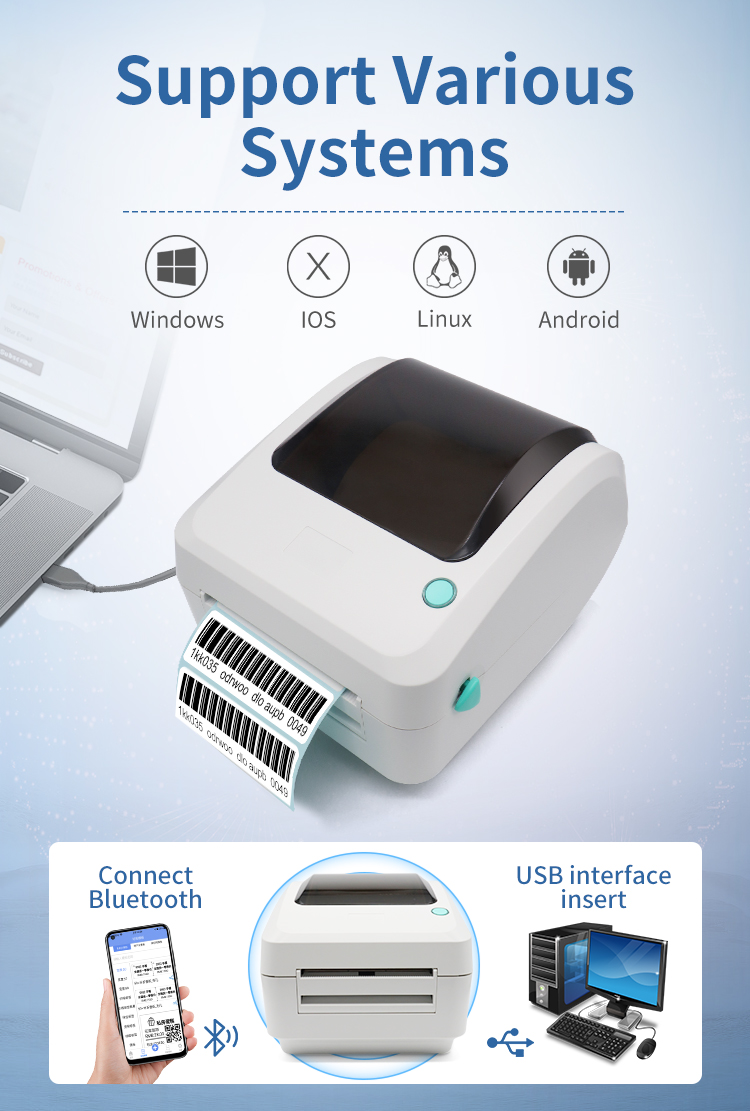

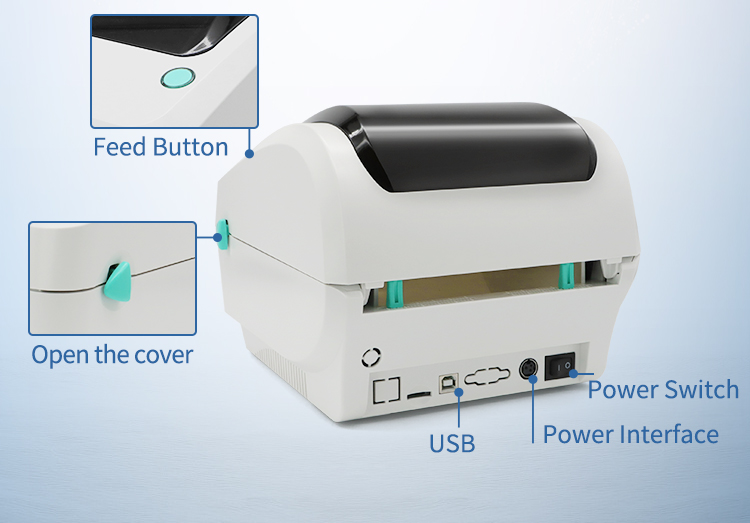

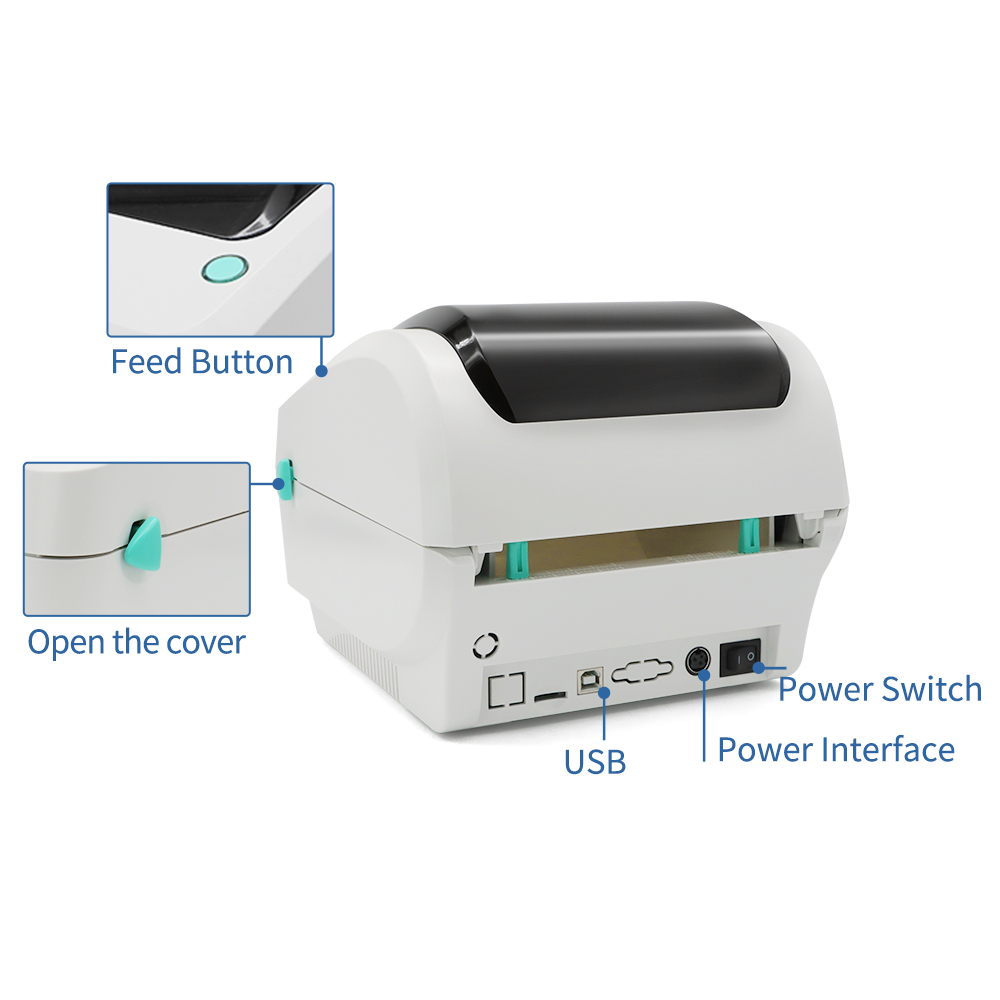

| Interface | USB(LAN/Serial/Bluetooth/Wifi Optional) | |
| Internal fonts | ||
| Barcode Character | Barcode | 1D bar code:Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST 2D bar code: PDF-417, Maxicode, Data Matrix, QR code |
| Font and barcode rotation | 0° / 90° / 180° / 270° | |
| Commands | TSPL / EPL / ZPL / DPL | |
| Environment condition | Operation: 5 ~ 40°C, 25 ~ 85% non-condensing, Storage: -40 ~ 60°C, 10 ~ 90% (non-condensing) | |
