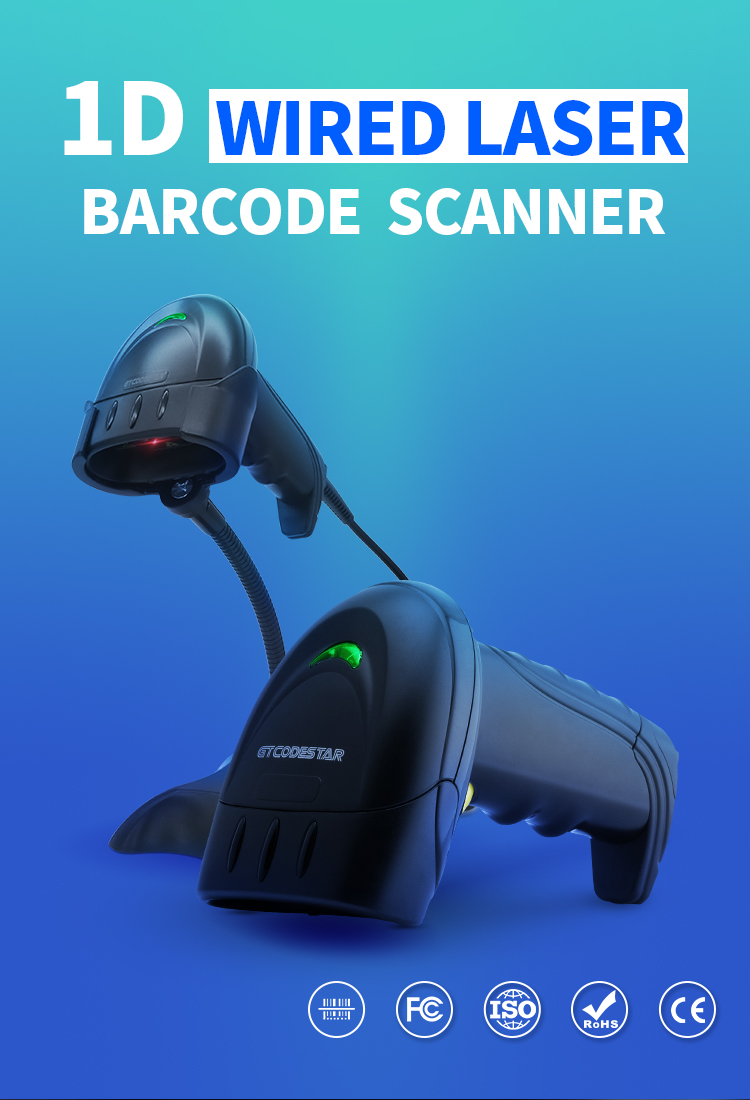

X-520AT 1D Automatic Laser Wired Handhold Barcode Scanner With Stand

Details

Parameter

Video

FAQ


Model		X-9100	X-520AT	X-9100N	X-620U	X-620F	X-660B
Precision		3mil	3mil	4mil	3mil	3mil	3mil
Decoding speed		300	300	400	300	300	300
Reading Mode		Laser	Laser	Laser	Laser	Laser	Laser
Transmission distance		≤1.8M	≤1.8M	≤1.8M	≤80M	≤80M	Wireless≤80M BT≤10M
Decoding Capability	1D Paper Bar code	√	√	√	√	√	√
	1D Screen Bar code	×	×	×	×	×	×
	2D Paper Screen Code	×	×	×	×	×	×
Connections	USB	√	√	√	√	√	√
	Wireless	×	×	×	√	√	√
	BT	×	×	×	×	×	√
Work pattern	Instant Upload Mode	√	√	√	√	√	√
Work pattern	Storage Mode	×	×	×	√	√	√
Scanning Mode	Manual Trigger	√	√	√	√	√	√
	Continuous Scanning	√	√	×	√	√	√
	Auto-sensing	×	√	×	×	×	×
Battery Capacity		/	/	/	800mAh	800mAh	800mAh
Continuous working time		/	/	/	24H	24H	24H
storage space		/	/	/	512K	512K	512K
Anti-Shock		1.5M	1.5M	1.5M	1.5M	1.5M	1.5M
IP		IP52	IP52	IP52	IP52	IP52	IP52
Vibration		×	×	×	×	×	×
Buzzer NO/OFF		√	√	√	√	√	√
Compatible Devices		PC Laptop Pos	PC Laptop Pos	PC Laptop Pos	PC Laptop Pos	PC Laptop Pos	PC Laptop Phone Tablet Pos
Compatible System		WIN XP/7/8/10 Mac OS AndroidIOS Linux	WIN XP/7/8/10 Mac OS AndroidIOS Linux	WIN XP/7/8/10 Mac OS AndroidIOS Linux	WIN XP/7/8/10 Mac OS AndroidIOS Linux	WIN XP/7/8/10 Mac OS AndroidIOS Linux	WIN XP/7/8/10 Mac OS Android IOS Linux

X-520AT 1D Automatic Laser Wired Handhold Barcode Scanner With Stand_11.jpg

Product Advantage

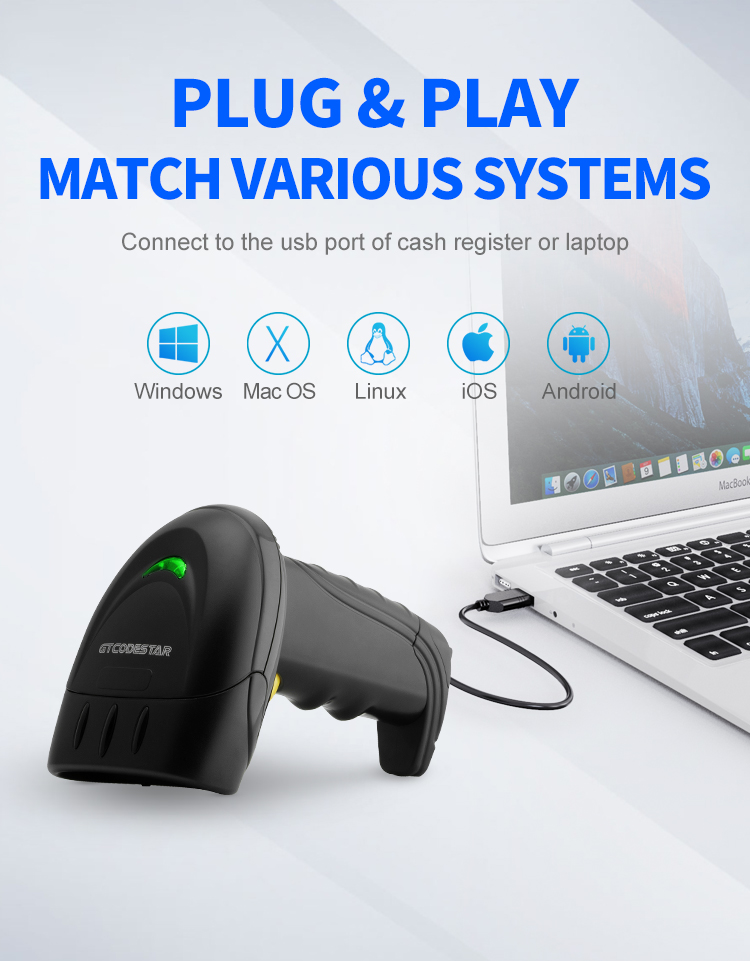

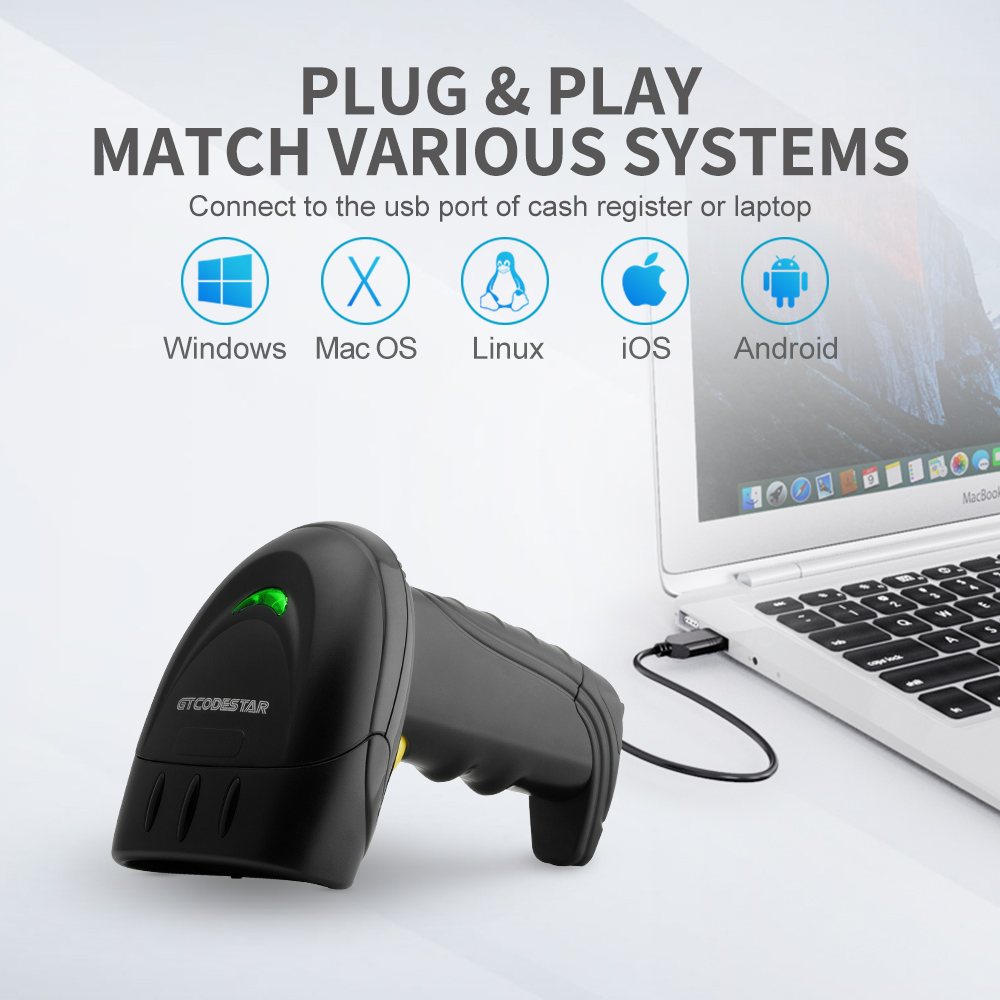

Product features	● Stable performance and no after-sales. ● Support Brazilian bank code. ● Support continuous scanning and automatic scanning. ● Support COM interface customization. ● Independent research and development, efficient decoding. ● Drive-free, plug and play. ● Responsive and fast scanning.
Decoding Capability	1D Code: Code25-Interleaved,Code25-Standard,Code25-Matri,Code39,Code93,Code128,EAN/GS1/UCC128,Codabar,EAN/JAN-13,UPC-A,EAN-8,Code11,UPCE *Scanning mobile phone screen barcode is not supported.
Applicable Place	● Express logistics ● Warehouse ● Shop ● Supermarket ● Medical treatment
Export Country	Europe: Italy, Germany, Spain, Poland South: America: Brazil, Paraguay, Chile North: America: Mexico Asia: India, Israe

Model		X-520AT
Item		Self-induction laser has line code scanner
Physical Parameter
Material		ABS+PVC+PC
Power Supply		DC 5V ±5%
Current		50mA（working）；30mA（standby）；100mA（maximum）
Maximum Power Consumption		0.5W
Weight		132±5g（With cable）

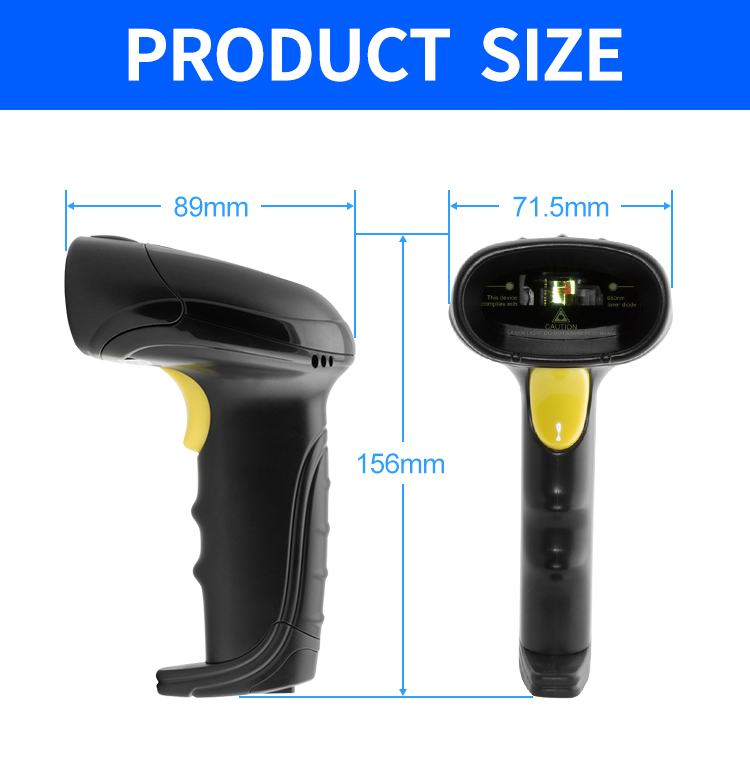

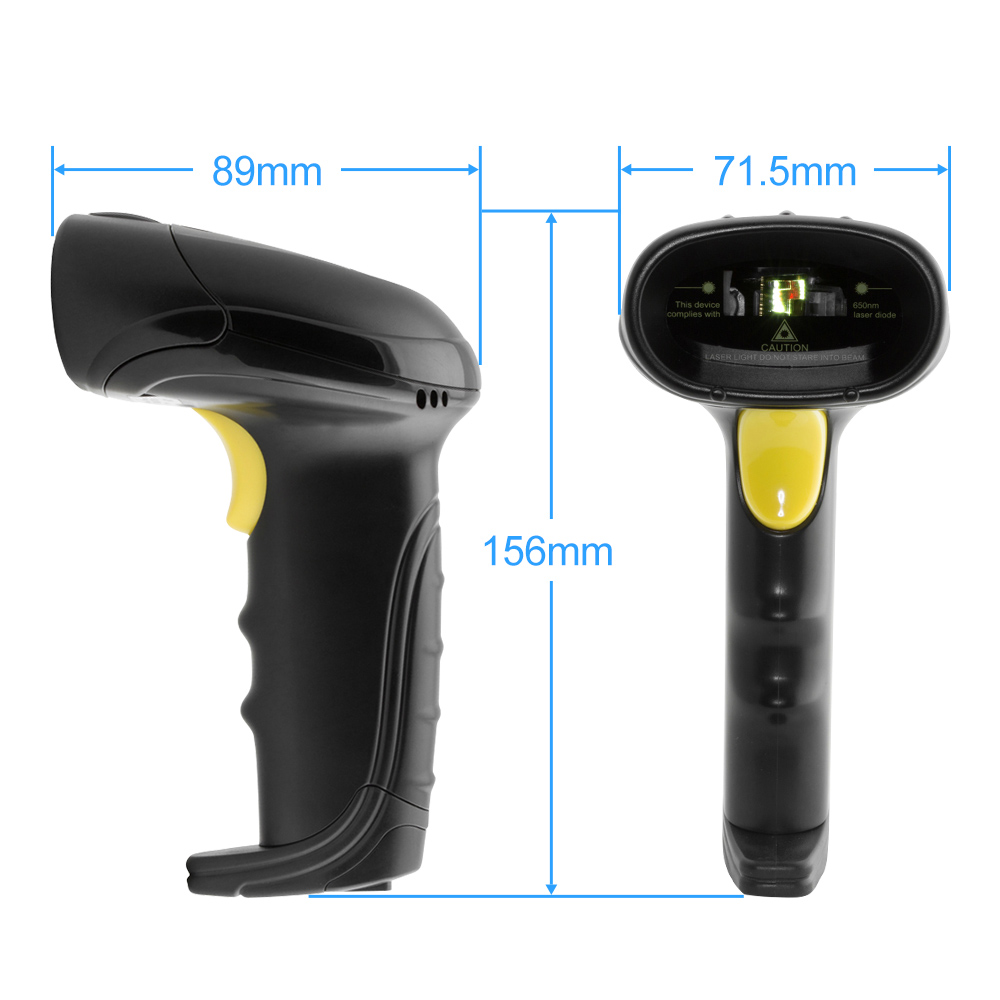

Size		L * W * H：168.970.794.7（unit/mm）
Color		Black;Grayish white
Button Lifespan		＞100000times
Performance Parameter
Interface		USB、PS/2；（RS232 customizable）
System Supported		Linux，Android，Windows XP、7、8、10，MAC
Language Supported		English; French; Dutch; Spanish (International); Italian (Italy 142); German
Light Source		Visable laser 650nm
Resolution		4mil
Bit Error Rate		1/5000000
Scanning speed		300times/sec
Reading Mode		laser
Trigger Mode		Manual mode; continuous scan mode; self-sensing mode
Scanning Distance		10mm-600mm
Prompt Mode		Buzzer, Indicator Light（LED）
Print Contrast		30%

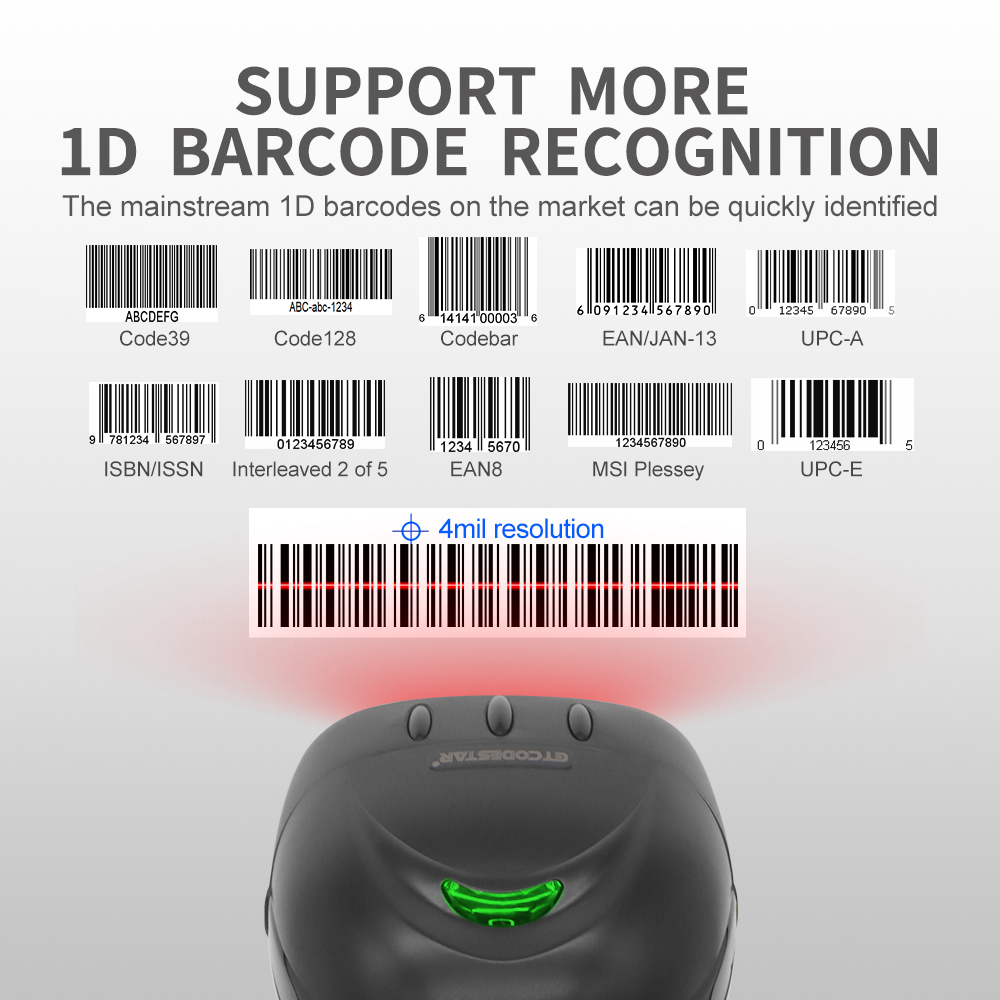

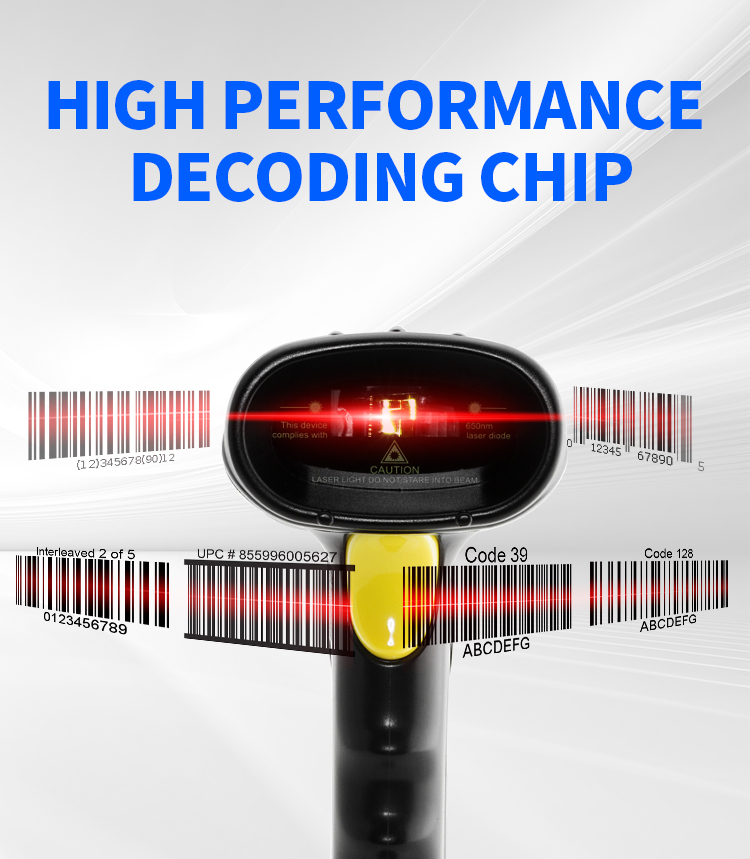

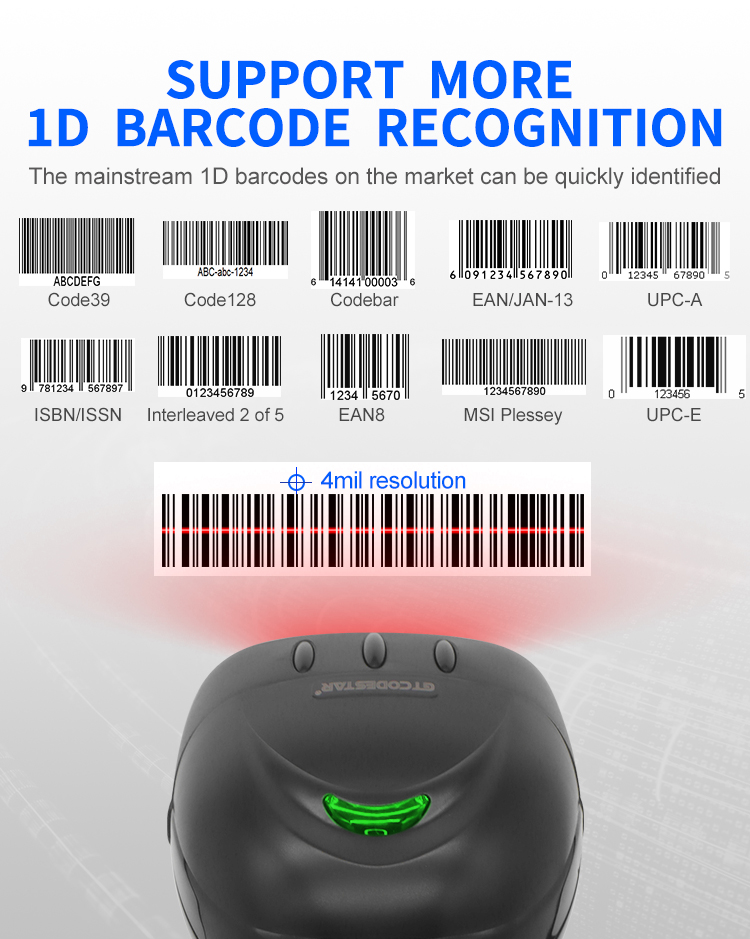

Decoding Capability		●Code25-Interleaved ●Code25-Standard ●Code25-Matri ●Code39-Regular ●Code39-FullASCII ●Code32 ●Code93-Regular ●Code93-FullASCII ●Code128 ●EAN/GSL/UCC-128Auto ●Codabar ●MSI ●EAN/JAN-13 ●UPC-A ●JAN-8 ●Code11 ●UPCE0
Scanning Angel		Roll30°、Pitch65°、Yew65°
Scanning Depth		Code39 4.17mil（15 byte）：1cm - 9cm Code39 7.50mil（15 byte）：3cm - 18cm Code128 4.17mil（15 byte）：1cm - 9cm
Environment Parameter
IP Grade		IP52
Operating Temp.		0 to 50℃ / 32 to 122℉
Storage Temp.		0 to 50℃ / 32 to 122℉
Operating Humidity		20% to 85%（No Condensation）
Storage Humidity		20% to 85%（No Condensation）
ESD Protection		15KV air discharge

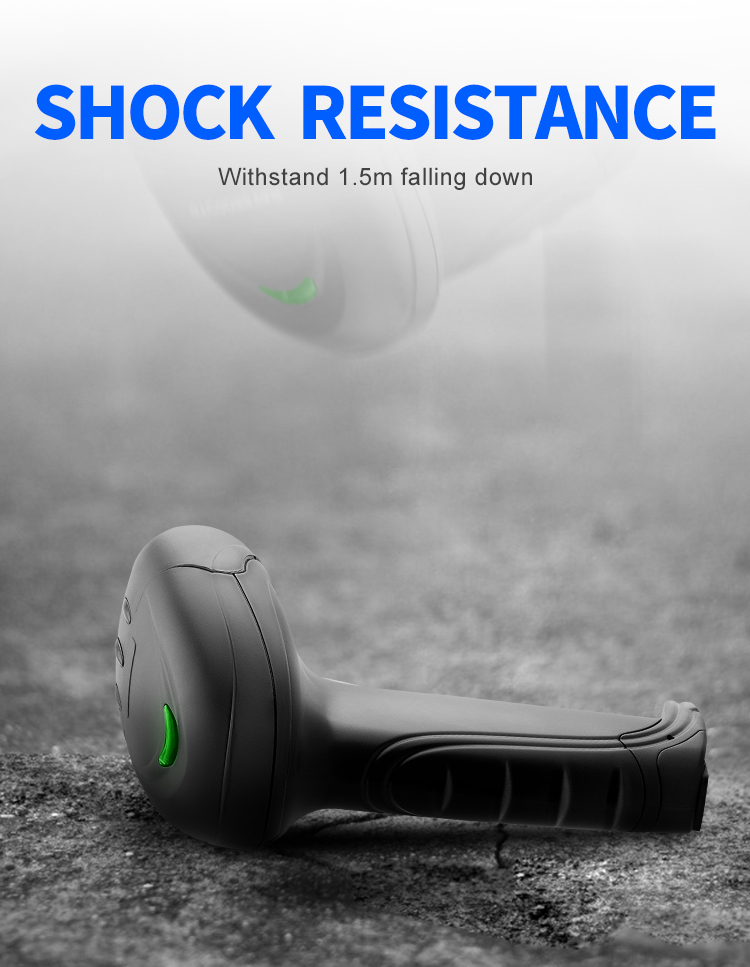

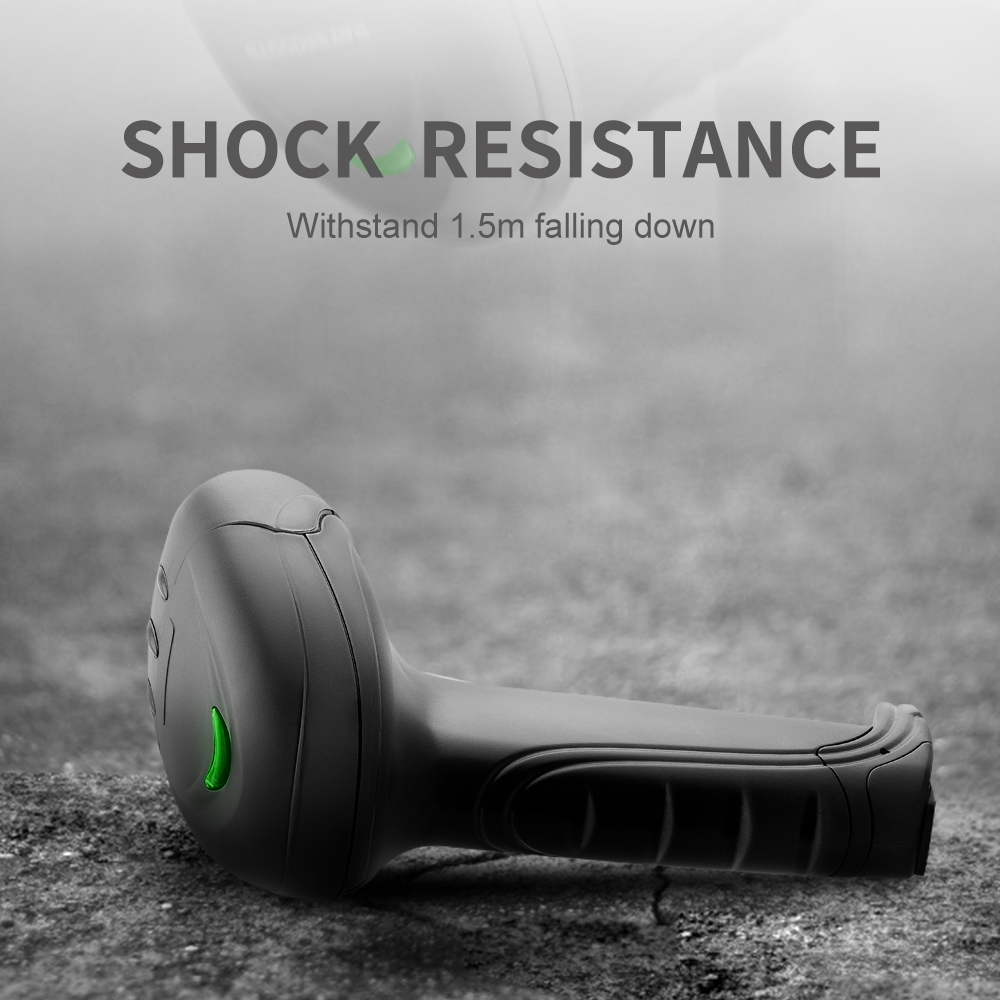

Shock Resistance		1.5m free fall on concrete surface

Solutions FAQ
Q：Can not turn on or turn off immediately after turning on
A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged)

Q：Barcode data is not uploaded
A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range)

Q：There is a laser line, but can't read the bar code.
A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual.

Q：The scanned data is displayed incorrectly on the host
A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center.

Q：Other cases cannot be decoded
A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again.
