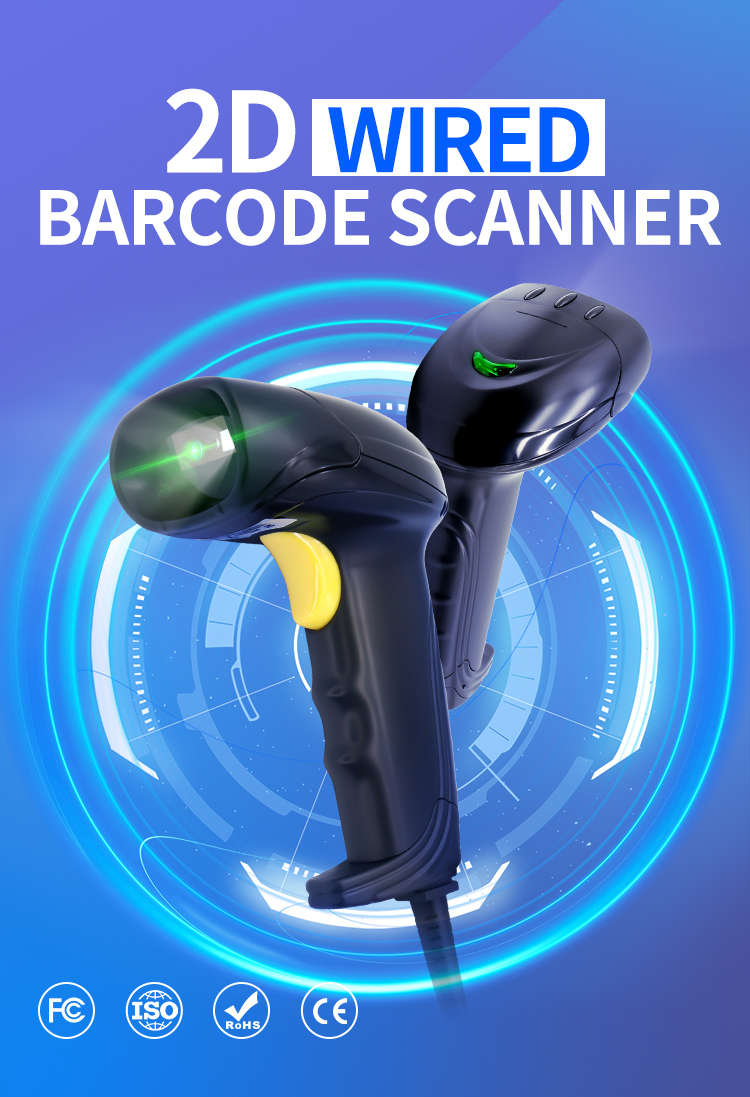

X-760K 2D Wired Handhold Barcode Scanner

Details

Parameter

Video

FAQ


Model		X-760H	X-760K	X-760E	X-3301V	X-1800S	X-3310L
Precision		5mil	4mil	4mil	4mil	3mil	3mil
Decoding speed		200	200	220	300	300	350
Optical Resolution		640*480	*640480**	640*480	640*480	1280*800	1280*800
Reading Mode		CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Sensor	Global Camera	√	√	√	×	×	×
Sensor	Roller Shutter	×	×	×	√	√	√
Transmission distance		≤1.8M	≤1.8M	≤1.8M	≤1.8M	≤1.8M	≤1.8M
Decoding Capability	1D Paper Bar code	√	√	√	√	√	√
	1D Screen Bar code	√	√	√	√	√	√
	2D Paper Screen Code	√	√	√	√	√	√
Connections	USB	√	√	√	√	√	√
	Wireless	×	×	×	×	×	×
	BT	×	×	×	×	×	×
Work pattern	Instant Upload Mode	√	√	√	√	√	√
Work pattern	Storage Mode	×	×	×	×	×	×
Scanning Mode	Manual Trigger	√	√	√	√	√	√
	Continuous Scanning	√	√	√	√	√	√
	Auto-sensing	√	√	√	√	√	√
Anti-Shock		1.5M	1.5M	1.5M	1.5M	1.5M	1.5M
IP		IP52	IP52	IP52	IP52	IP52	IP52
Vibration		×	×	×	×	×	√
Buzzer NO/OFF		√	√	√	√	√	√
Compatible Devices		PC Laptop Pos	PC Laptop Pos	PC Laptop Pos	PC Laptop Pos	PC Laptop Pos	PC Laptop Pos
Compatible System		WIN XP/7/8/10 Mac OS AndroidIOS Linux	WIN XP/7/8/12 Mac OS AndroidIOS Linux	WIN XP/7/8/13 Mac OS AndroidIOS Linux	WIN XP/7/8/15 Mac OS AndroidIOS Linux	WIN XP/7/8/17 Mac OS AndroidIOS Linux	WIN XP/7/8/18 Mac OS AndroidIOS Linux

X-760K 2D Wired Handhold Barcode Scanner_01.jpg

Product Advantage

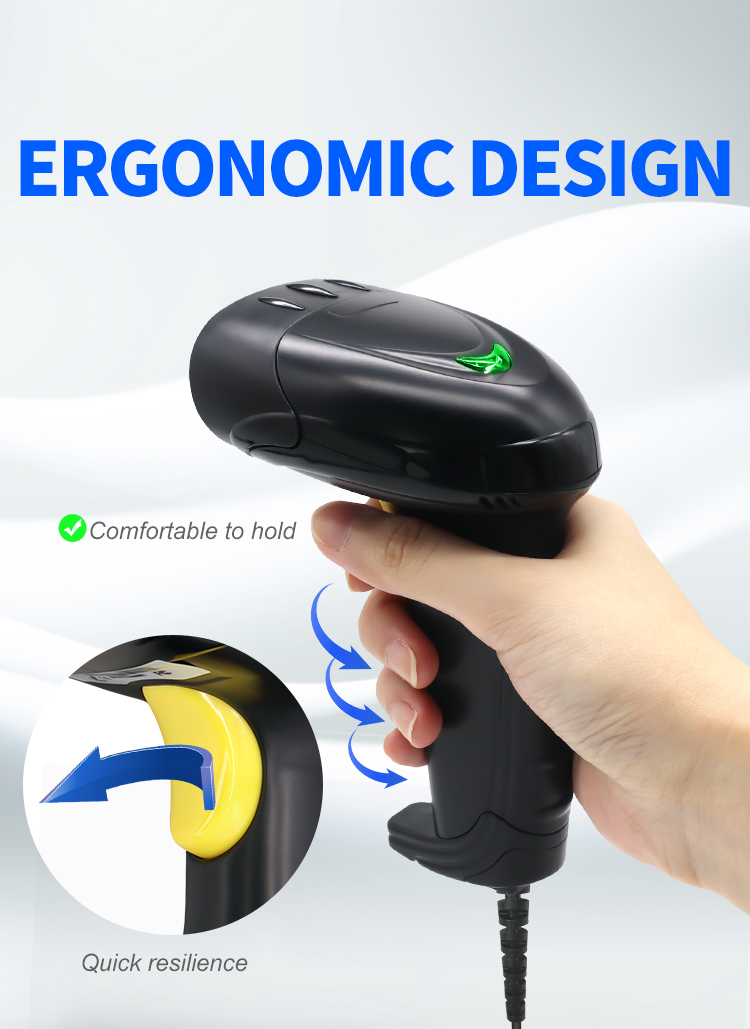

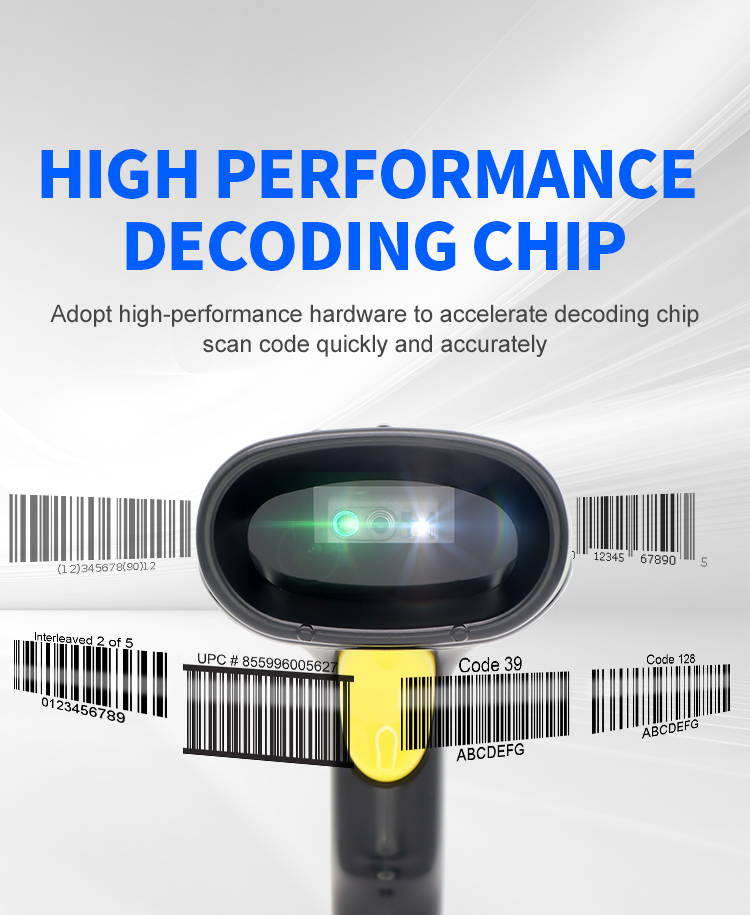

Product features	●Powerful CMOS image decoding capability, well and fastly read 1D and 2D barcode from paper and electronic screen ●Compatible with many kinds of device/system, plug and play ●Ergonomic design, comfortable operation, not easily fatigued for long time operation ●LED indicator light and beep sound for quick feedback on working conditions ●Simple and fast screen payment code capture ability, which can accurately cope with various mobile payment scenarios.

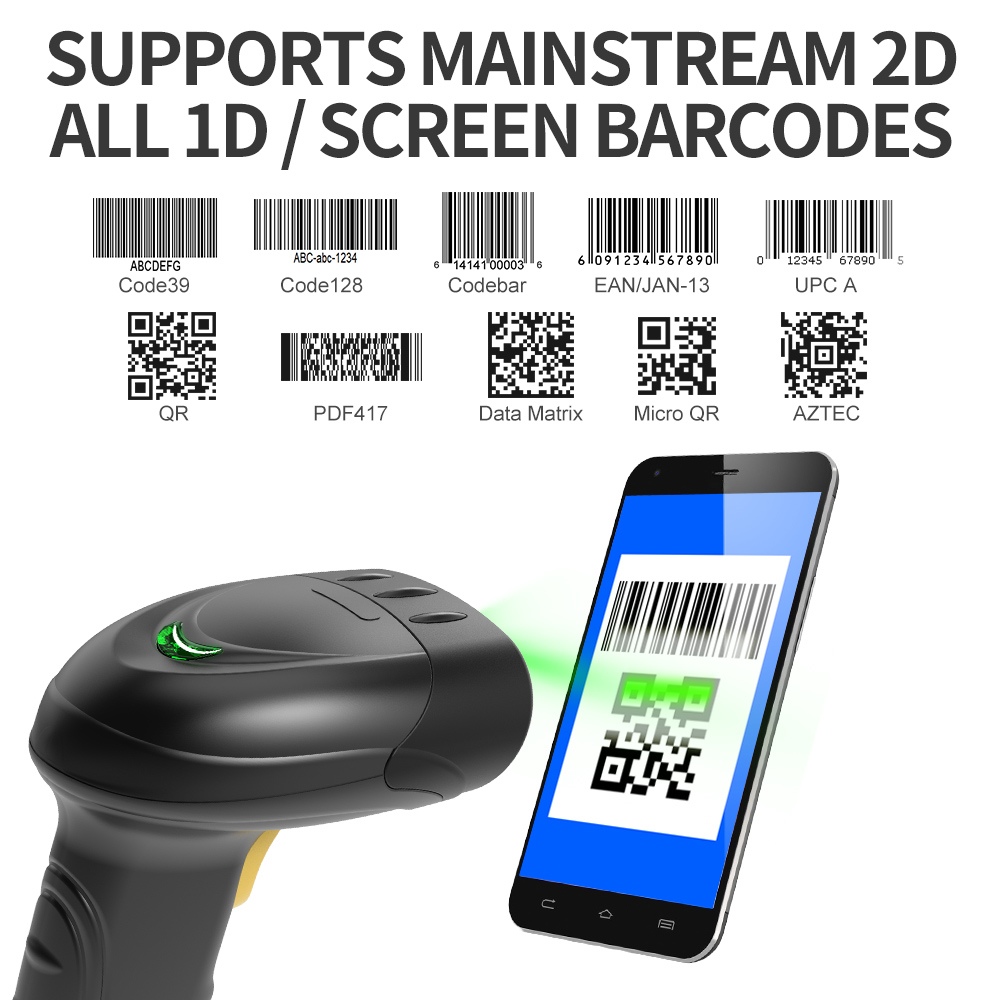

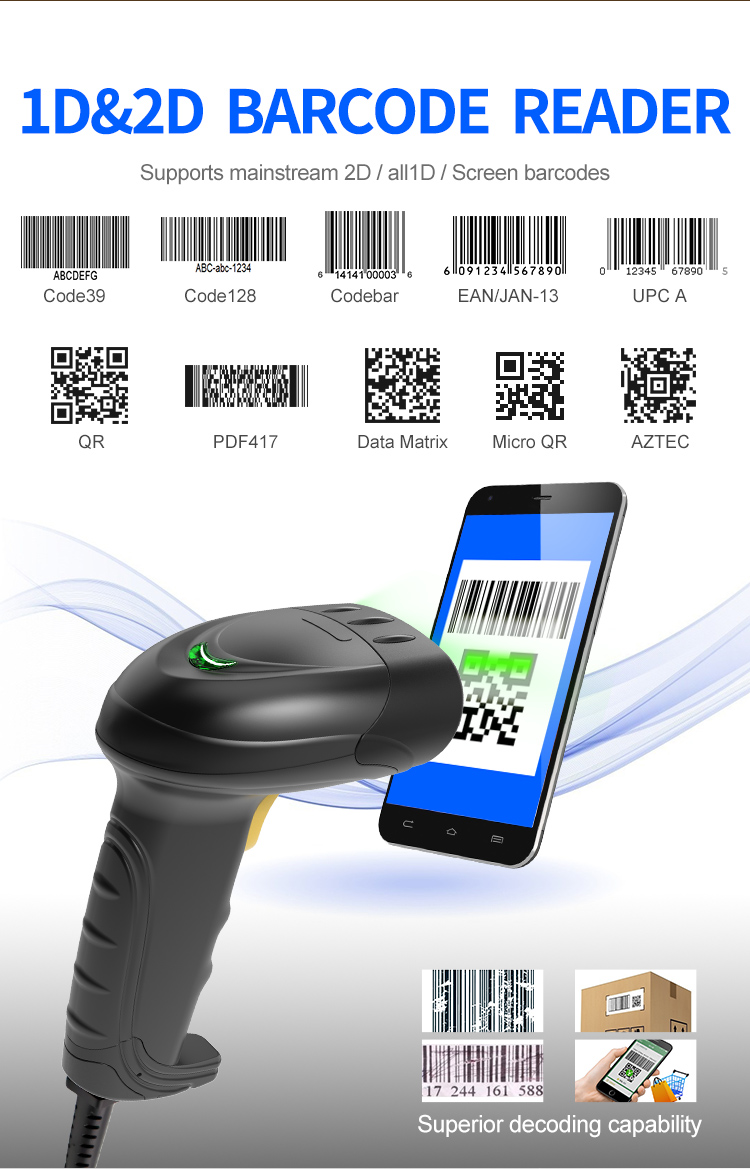

Decoding Capability	1D Code: EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar， Interleaved 2 of 5, ITF-6,ITF-14,ISBN,ISSN, MSI-Plessey,GS1 Databar,Code 11,Industrial 25, Standard 25,Plessey, Matrix 2 of 5 2D Code： QR Code,Mrico QR, Data Matrix, PDF417,Mrico PDF417，Aztec * Support scanning screen barcode.

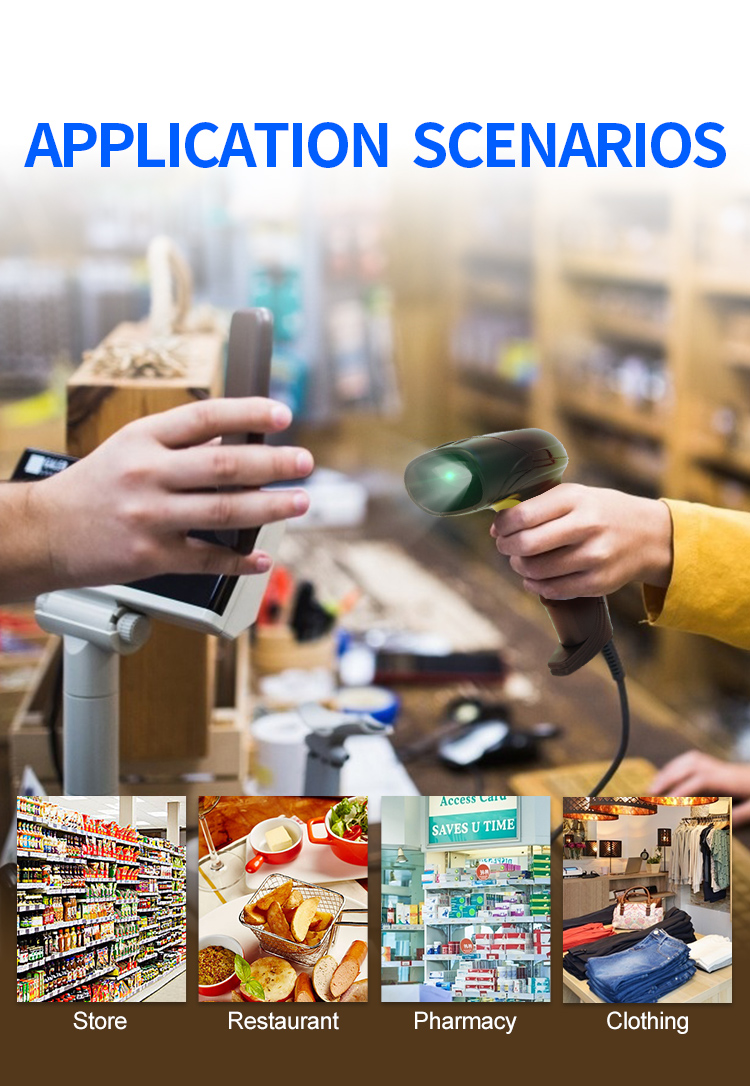

Applicable Place	● Shop ● Supermarket ● Catering ● Mobile payment
Export Country	Europe: Italy, Germany, Spain, Poland; South: America: Brazil, Paraguay, Chile; North: America: USA, Mexico; Asia: India, Israel;

Model		X-760K
Item		Wired 2D Barcode Scanner
Physical Parameter
Material		ABS+PC
Power Supply		DC 5V ±5%
Power Consumption		815mW（working）；480mW（standby）；1105mW（maximum）【Average power consumption】
Weight		112g±5g（Without Cable）

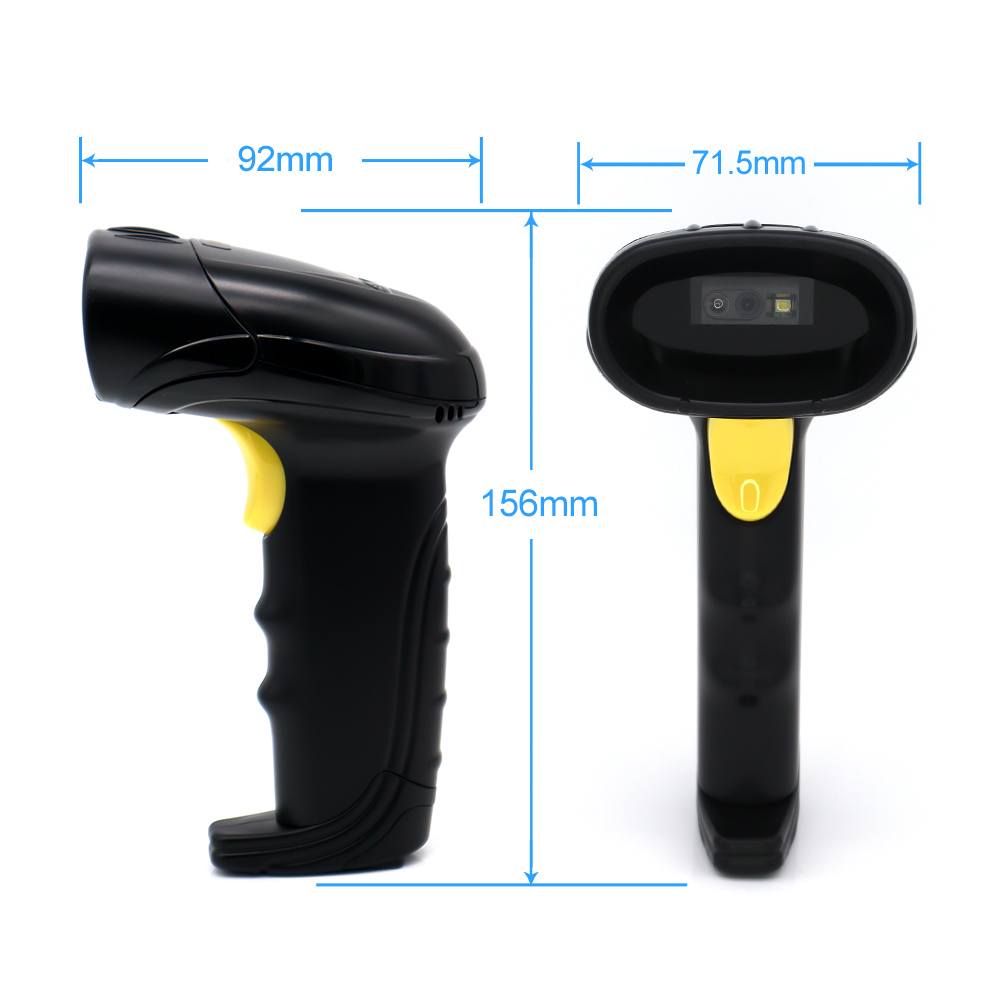

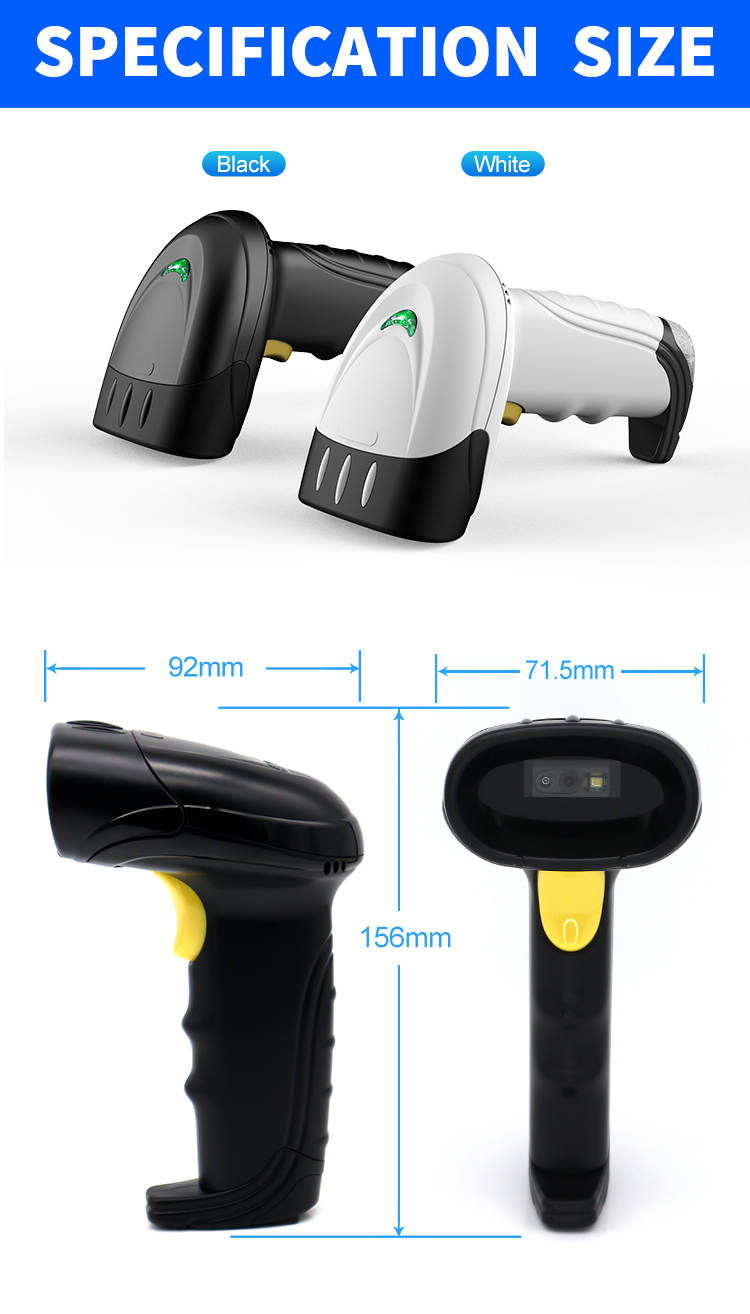

Size		L * W * H：168.9mm* 70.7 mm* 94.7mm
Color		Graywhite，Black
Performance Parameter

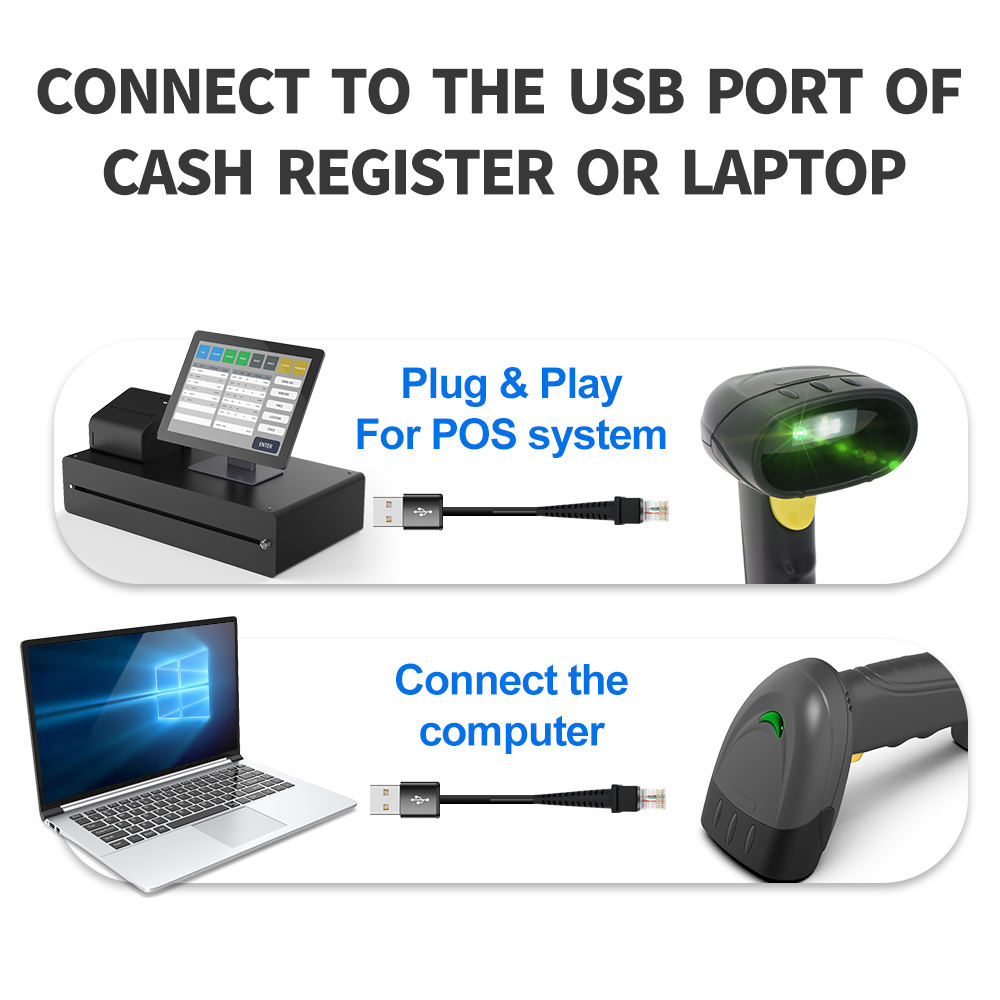

Interface		USB；（RS232 can be customized）

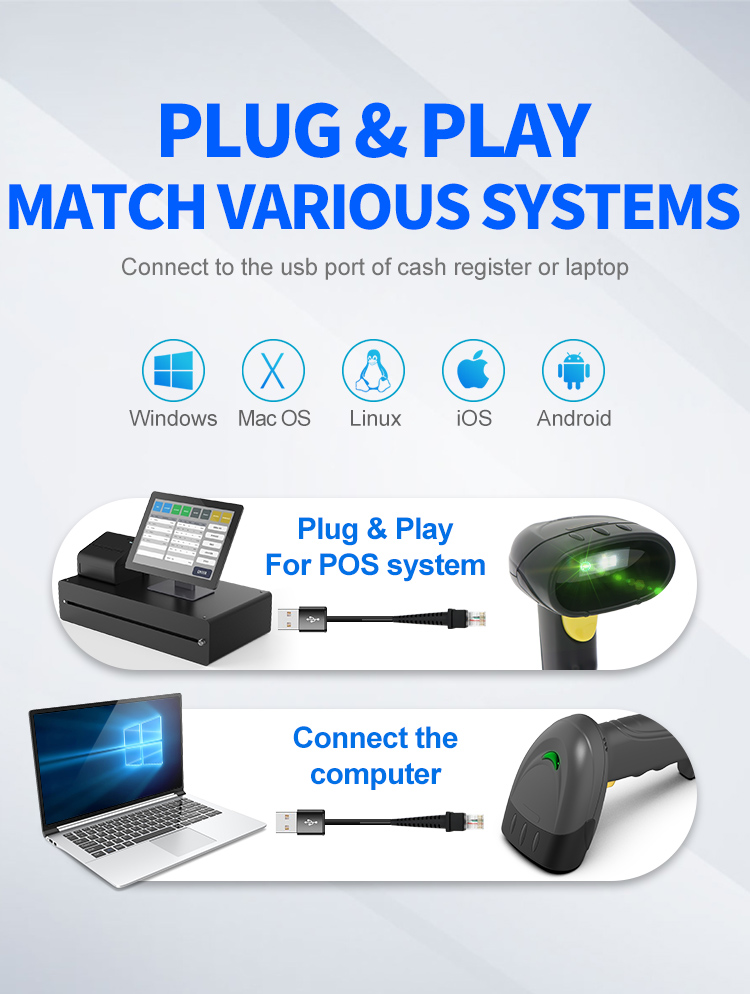

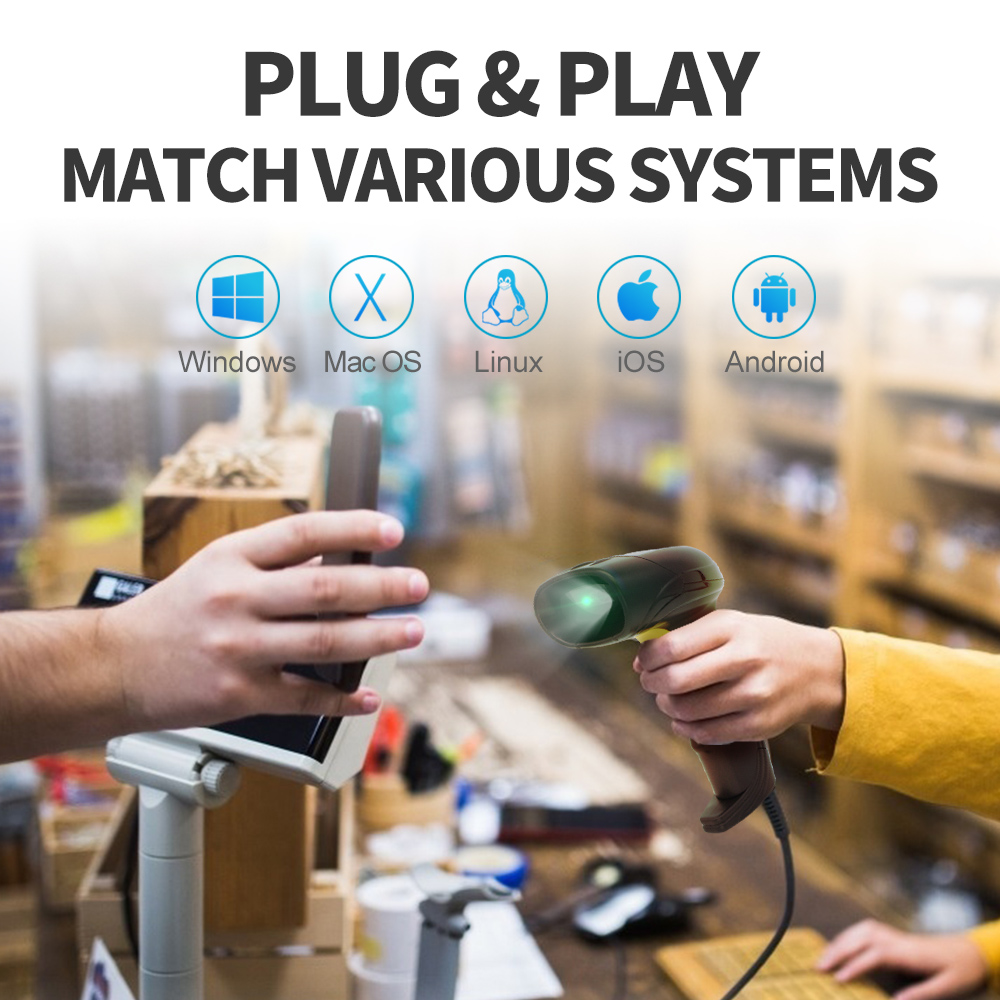

System Supported		Linux，Android，Windows XP、7、8、10，MAC
Language Supported		American English；Belgium；Finland；France；Germany；Italy；Sweden；United Kingdom；Denmark；Norway；Spain；Portugal；TurkeyF；TurkeyQ；Japan；Russia 【Support virtual keyboard】
Sensor		sensor 640×480 CMOS
Light Source		White light LED illumination + Green light LED Focus
Processor		32-bit ARM MCU + BGA
Motion tolerance		QR： 25cm/sec
Resolution		5mil
Bit error rate		1/5000000
Reading Mode		Image
Trigger Mode		Manual;Auto-Sensing;Continuous scanning
Prompt Mode		Buzzer, Indicator Light（LED）
Print Contrast		25%
Decoding Capability	1D	EAN-13 EAN-8 UPC-E UPC-A Code 39 Code 93 Code 128 UCC/EAN 128 Codabar Interleaved 2 of 5 ITF-6 ITF-14 ISBN ISSN MSI-Plessey GS1 Databar Code 11 Industrial 2 of 5 Standard 2 of 5 Plessey Matrix 2 of 5
	2D	Data Matrix QR PDF417 Mrico QR Aztec Mrico PDF417
Scanning Angel		Roll360°， Pitch55°，Yew55°
Scanning Depth		EAN-13 50mm-200mm (12.50byte) Code39 40mm-90mm （5mil 10 byte） QR Code 25mm-240mm (20mil 16 byte) Data Marix 50mm-90mm （10mil 20 byte） PDF 417 30mm-130mm (7.50mil 7 byte)
Environment Parameter
IP Grade		IP52
Operating Temp.		0 to 50℃ / 32 to 122℉
Storage Temp.		0 to 50℃ / 32 to 122℉
Operating Humidity		20% to 85%（No Condensation）
Storage Humidity		20% to 85%（No Condensation）
ESD Protection		15KV air discharge

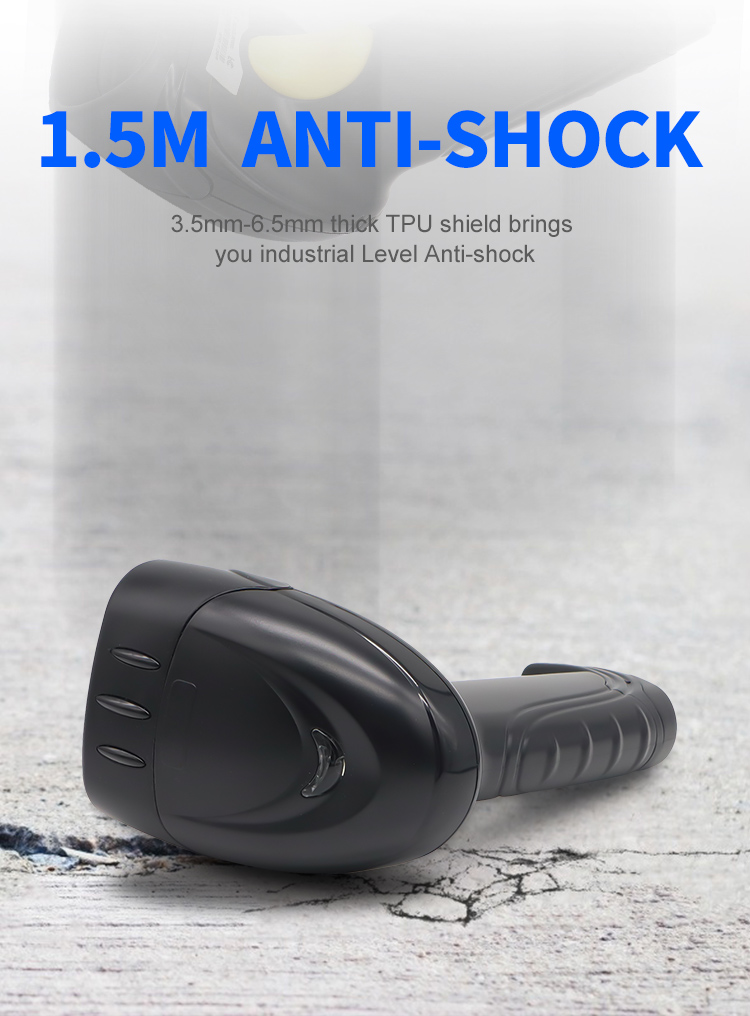

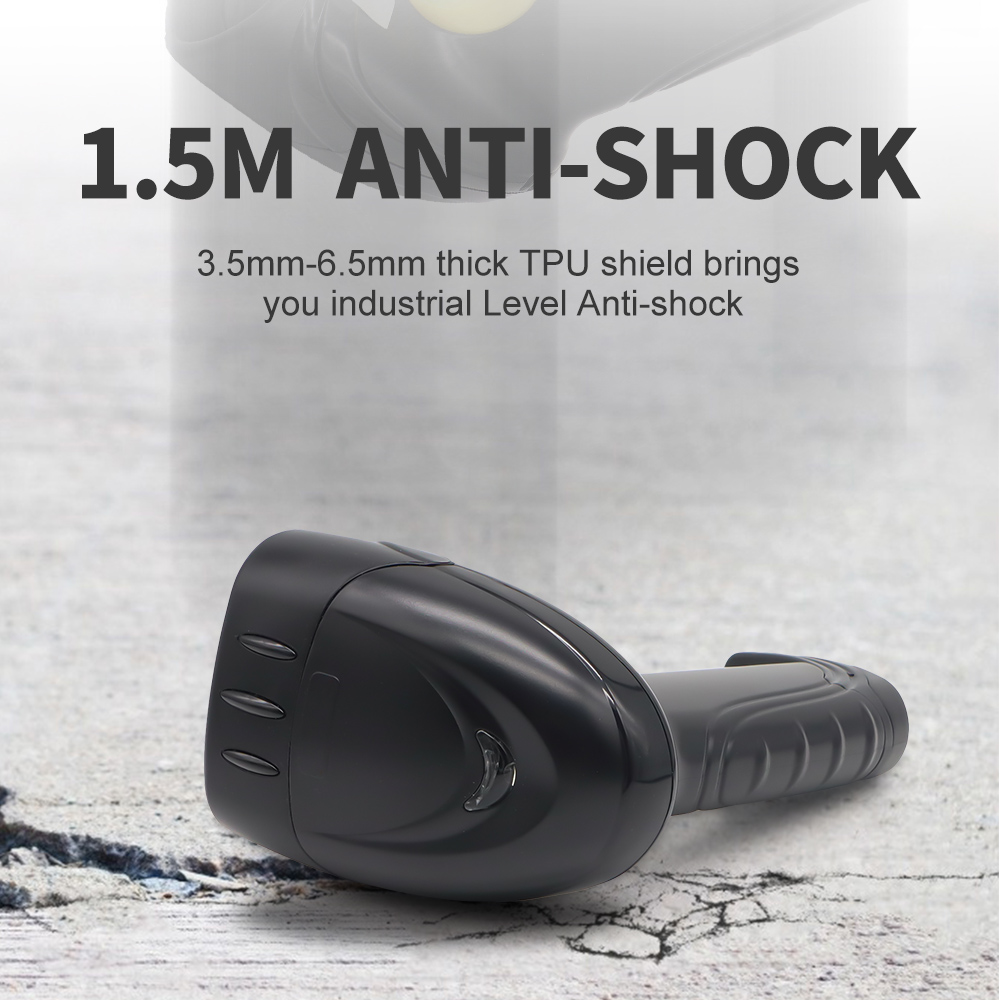

Shock Resistance		1.2m free fall on concrete surface

Solutions FAQ
Q：Can not turn on or turn off immediately after turning on
A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged)

Q：Barcode data is not uploaded
A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range)

Q：There is a laser line, but can't read the bar code.
A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual.

Q：The scanned data is displayed incorrectly on the host
A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center.

Q：Other cases cannot be decoded
A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again.
