Brazilian banks code barcode solution
With the development of the digital age, people have higher requirements for the data carrying capacity of barcodes. At present, in the global market, some countries and regions use one-dimensional barcodes. Because of the large data storage capacity, the length of the barcodes also increases accordingly. In South America, the Brazilian banks code is one of the representative barcode types.

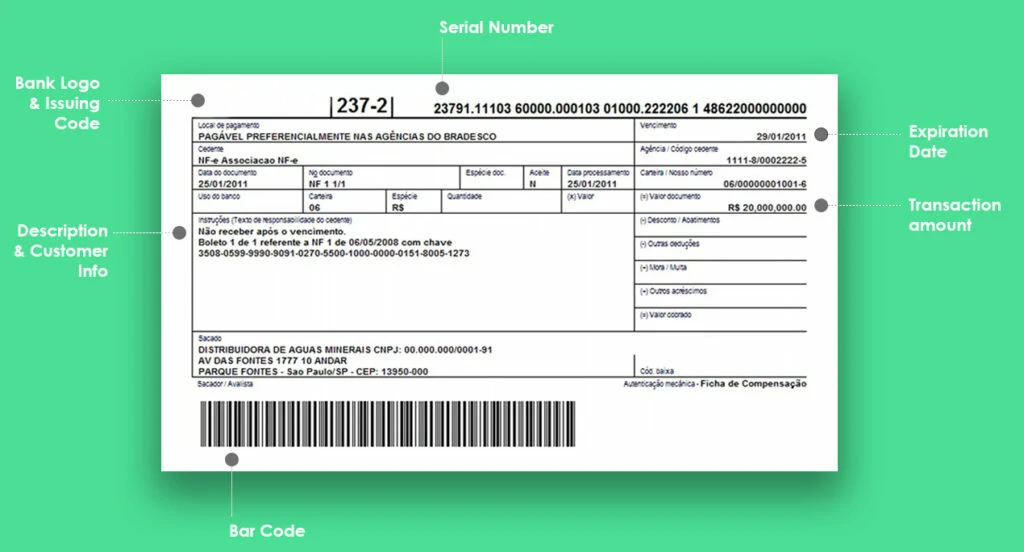

Brazilian bank code - this long barcode has a recording capacity of up to 40-50 numbers. If the data is entered manually, it is very easy to cause data entry errors and is time-consuming and laborious. Such ultra-long barcodes cannot be correctly recognized by ordinary barcode scanners. They need an efficient, fast, and accurate barcode scanner to solve the reading and recognition of long barcodes such as Brazilian bank codes.

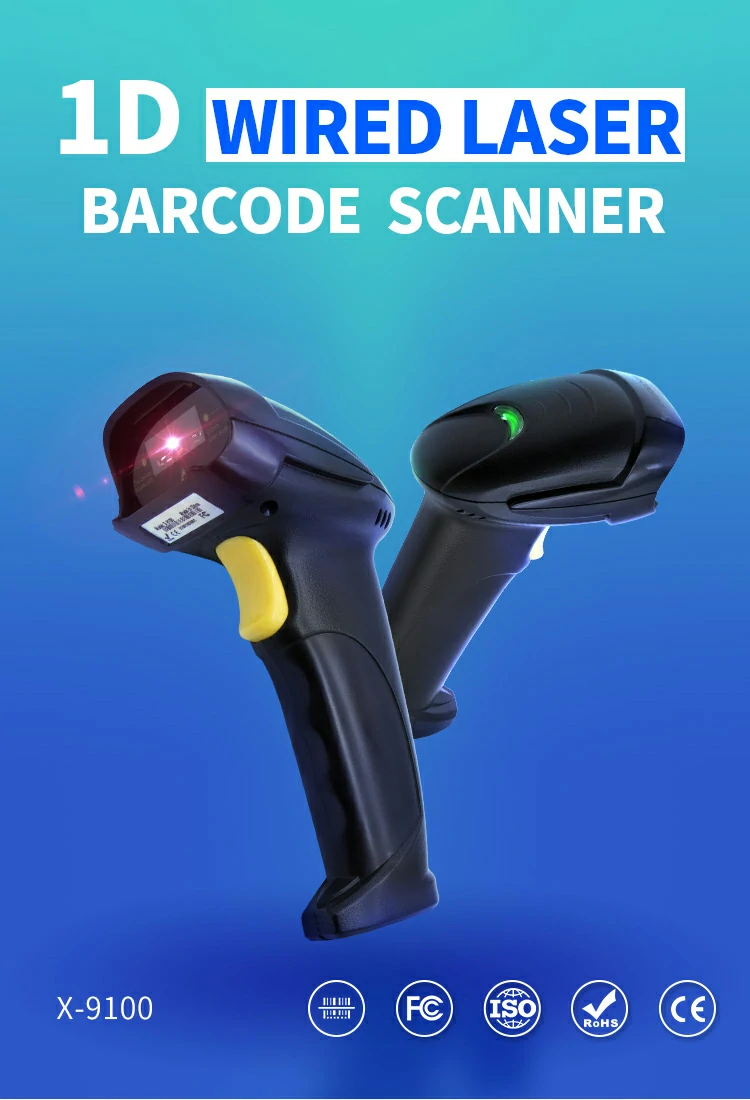

Xincode barcode scanner X-9100 is a 1D wired laser barcode scanner, equipped with a 32-bit processor, efficient decoding, and supports Brazilian government codes, Brazilian bank codes and other complex barcodes. Fully adaptable and easy to read, long barcodes like the Brazilian bank codes reduce entry errors caused by manual data entry.
X-9100 Technical Parameter
| X-9100 Technical Parameter | |||||||
| Model | X-9100 | ||||||
| Item | wired Laser Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PVC+PC | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Operating Current | 50mA（Standby）；30mA（Operating）；100mA（Max） | ||||||
| Safety | According to China National Laser Safety Standard Class2 | ||||||
| Weight | 131±5g（Including wire） | ||||||
| Size | L * W * H：167 * 65 * 97（unit：mm） | ||||||
| Color | Black | ||||||
| Button life | ＞100000frequency | ||||||
| Performance Parameter | |||||||
| Interface | Built-in PS/2 keyboard, RS-232 serial, Standard 2.0USB interface | ||||||
| System supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language supported | English ；Support multi-languages | ||||||
| light source | Visible laser 650nm | ||||||
| Resolution | 3mil | ||||||
| Error Rate | 1/5000000 | ||||||
| Decoding speed | 300/sec | ||||||
| Reading mode | laser | ||||||
| Triggle Mode | Trigger buttons; Automatic successive scanning; Automatic scintillation scanning | ||||||
| Reading distance | 10~600mm Elevation angle 60°, Inclination angle 45° | ||||||
| Baud rate | RS232baudrate: 1200-115200 | ||||||
| Quiescent current | 20mA | ||||||
| Decoding Capability | 1D barcode like UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Codabar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code128, Code 93, Code 11, MSI/PIESSEY, UK/PLESSEY, UCC/EAN128 code, etc. | ||||||
| Scanning Angle | Roll 30°、Pitch 75°、Yew 75° | ||||||
| Scanning Depth | 2~9cm(0.1mm bar width);3~50cm(0.3mm bar width) | ||||||
| Environment Parameter | |||||||
| Dustproof waterproof | According to IEC529,IP42 standard | ||||||
| Operating Temp. | -20℃ to 50℃ | ||||||
| Storage Temp. | -20℃ to 50℃ | ||||||
| Operating Humidity | 0~95% | ||||||
| Storage Humidity | 5%~95% | ||||||
| Electromagnetic interference | According to EN8001,Par1 standard | ||||||
| Earthquake resistance | Free fall 1.5m (concrete floor) | ||||||
