GT-P800 80mm Receipt&Label Desktop Thermal Printer

Printing method: Direct thermal Resolution: 8 dots/mm(203DPI) Print width: 20-80 mm Printing speed: 127 mm/s Media type: Continuous, Gap, Black mark Media width :20-84mm Media thickness: 0.06~0.19mm Inner diameter of paper roll: 25~38mm Memory: RAM:4M , FLASH:4M Interfaces: USB/LAN Emulation： ESC/POS/TSPL Physical dimension： 187（D）×162（W）×146（H）mm Weight 1.1 kg Power supply ： Input AC 100~240V，2A，50~60Hz Output DC 24V, 2.5A

Details

Parameter

Video

FAQ

GT-A80B详情-8月_01.jpg GT-A80B详情-8月_02.jpg GT-A80B详情-8月_03.jpg GT-A80B详情-8月_04.jpg GT-A80B详情-8月_05.jpg GT-A80B详情-8月_06.jpg GT-A80B详情-8月_07.jpg GT-A80B详情-8月_08.jpg GT-A80B详情-8月_09.jpg GT-A80B详情-8月_10.jpg GT-A80B详情-8月_11.jpg

GT-P800 PRINTER PRODUCT SPECIFICATION
Printer specification parameter table
project	Project Description	Specifications
Printing	Printing method	Direct Thermal
	Resolution	203 DPI

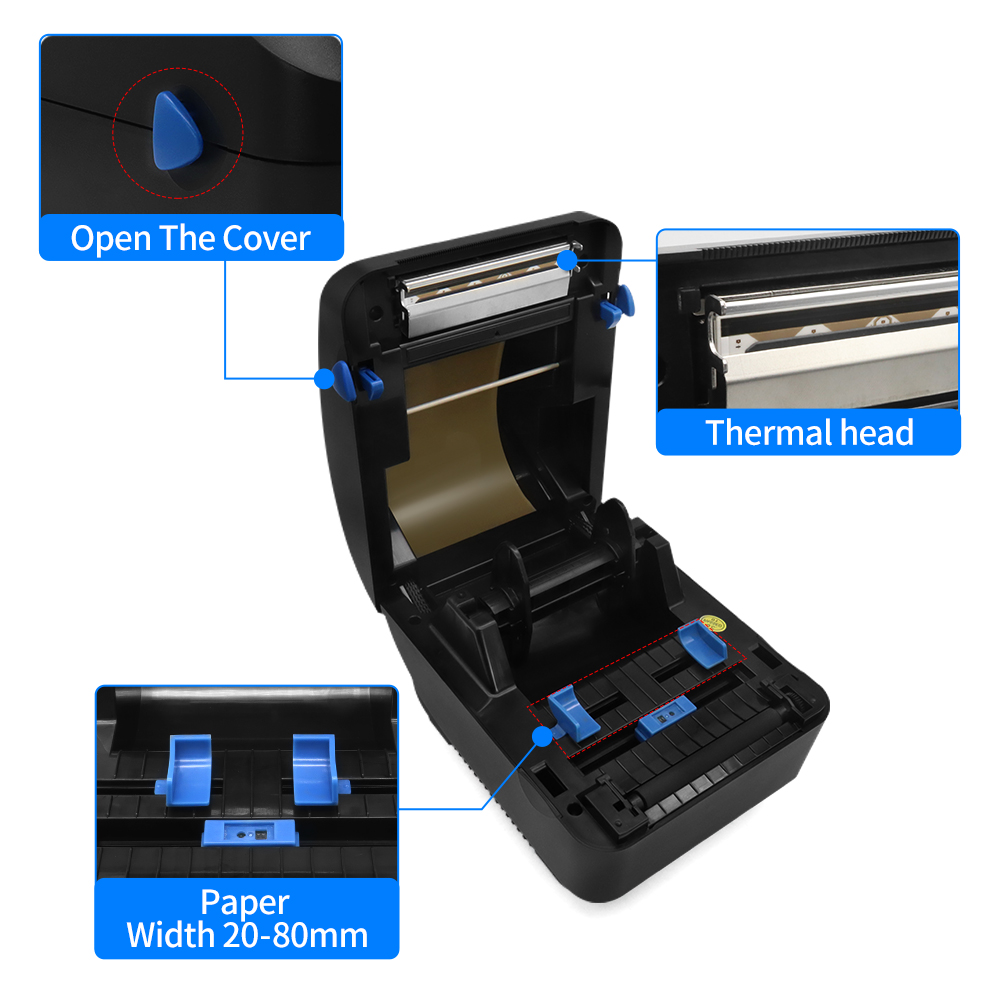

	Print width	20~80mm

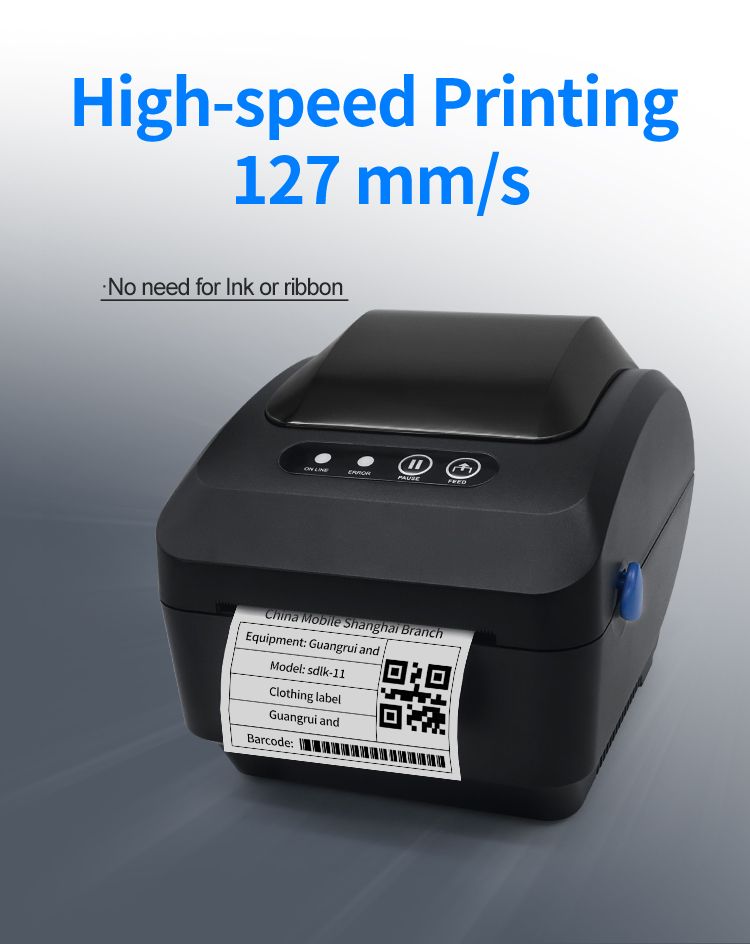

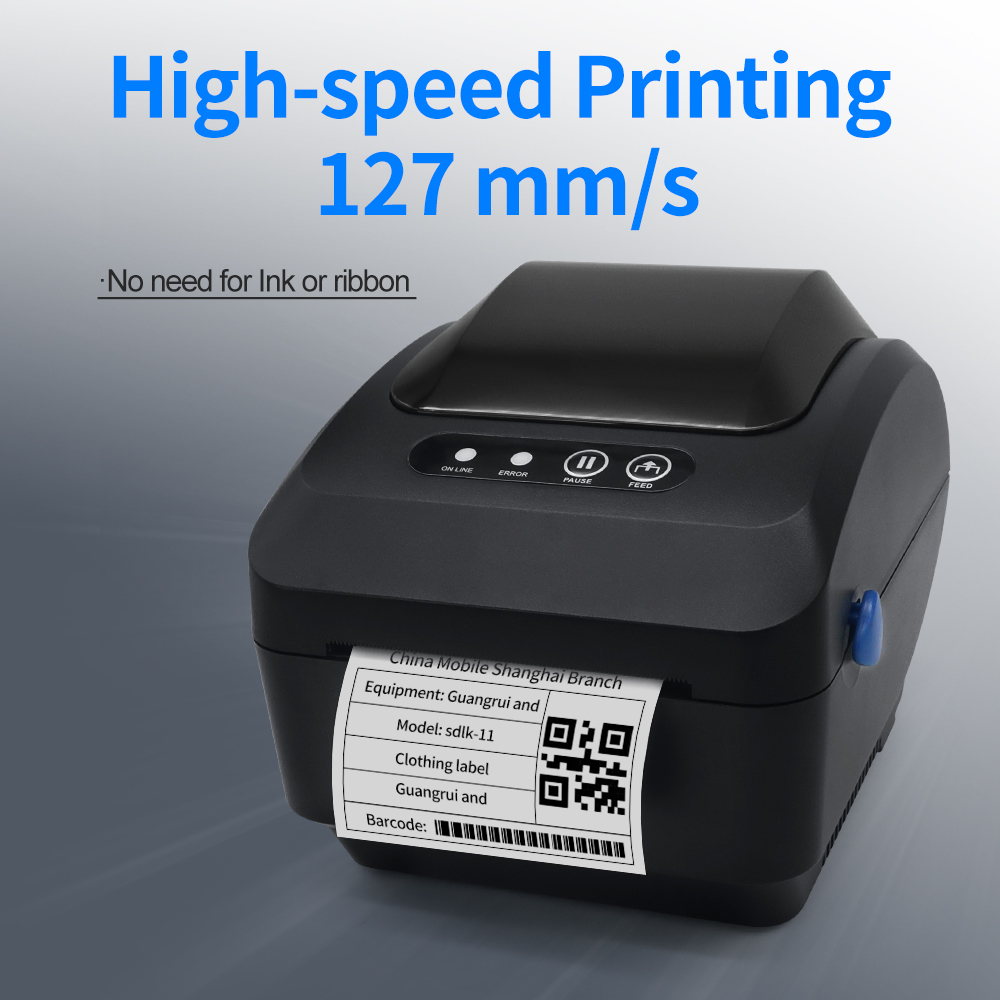

	Printing speed	127mm/s
Media	Media type	Continuous, Gap, Black mark
	Media width	20~84 mm
	Media thickness	0.06 ~ 0.19 mm
	Inner diameter of media	25mm~38mm
Performance Features	Memory	RAM:4M; FLASH:4M

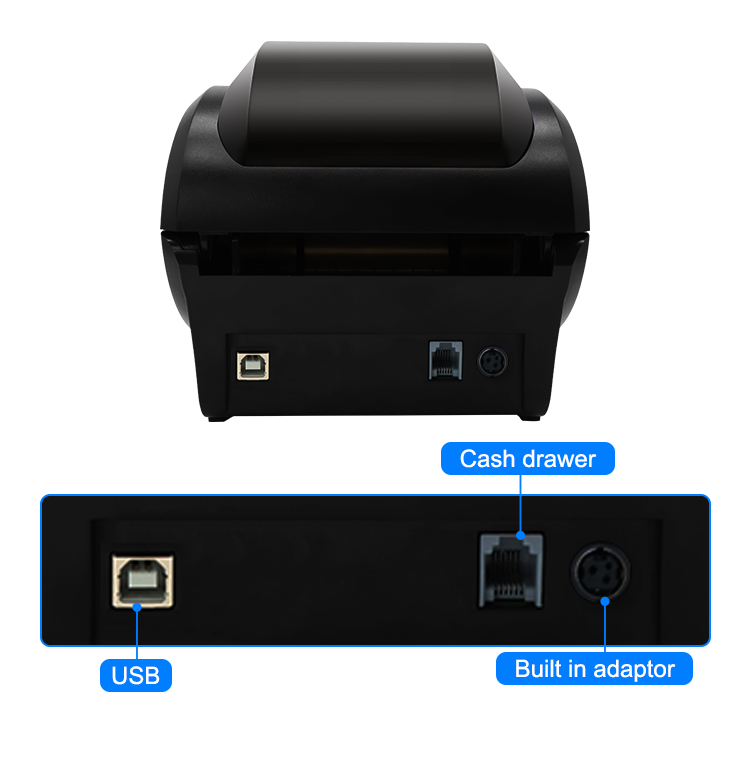

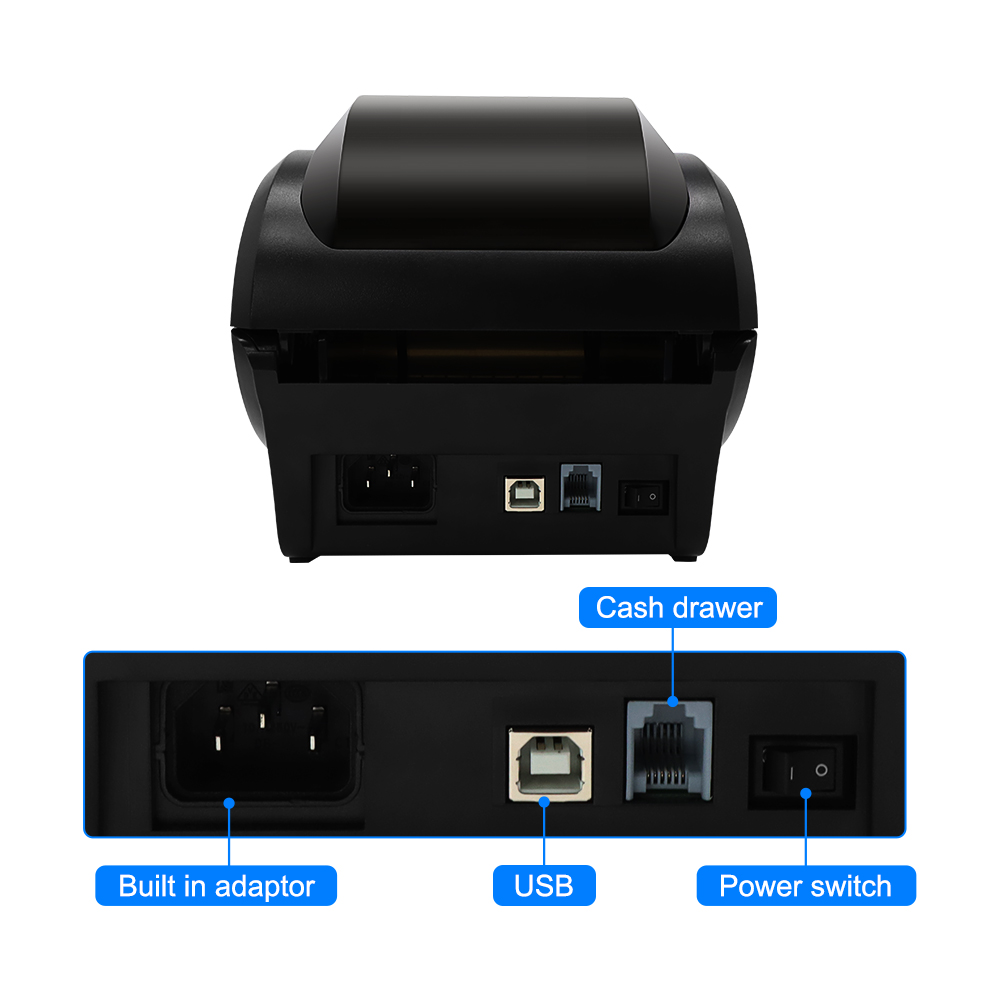

	Interfaces	USB / LAN

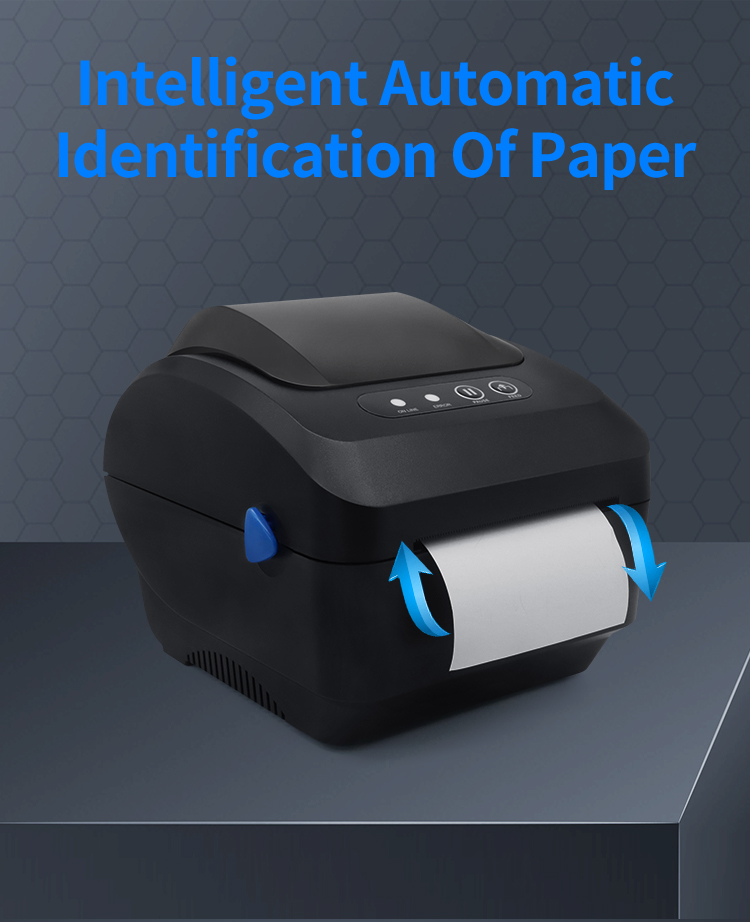

	Sensors	Gap sensor ; Cover sensor ; Black mark sensor
Fonts/Graphics/Symbologies	Character set	FONT 1 to FONT 8; K; TST24.BF2 ; TSS24.BF2
	1D barcode	CODE128、EAN128、ITF、CODE39、CODE39C、CODE39S、CODE93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPCA+2、UPCA+5、UPCE、UPCE+2、UPCE+5、MSI、MSIC、PLESSEY、ITF14、EAN14
	2D bar code	PDF417 / QRCODE / DataMatrix
	RotationRotation	0°; 90°; 180°; 270°
	Graphics	Monochrome PCX, BMP and other image files can be downloaded to FLASH
	Emulation	ESC/POS

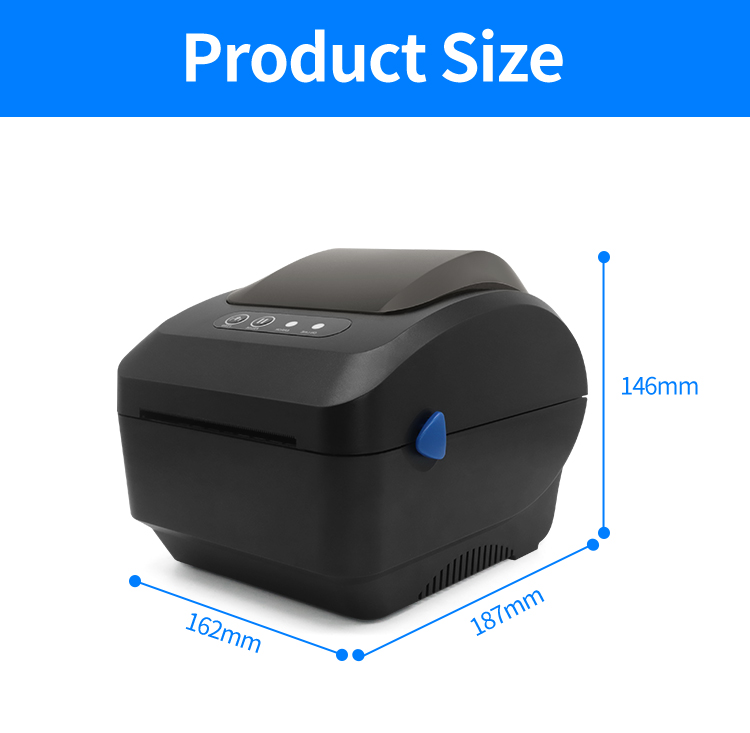

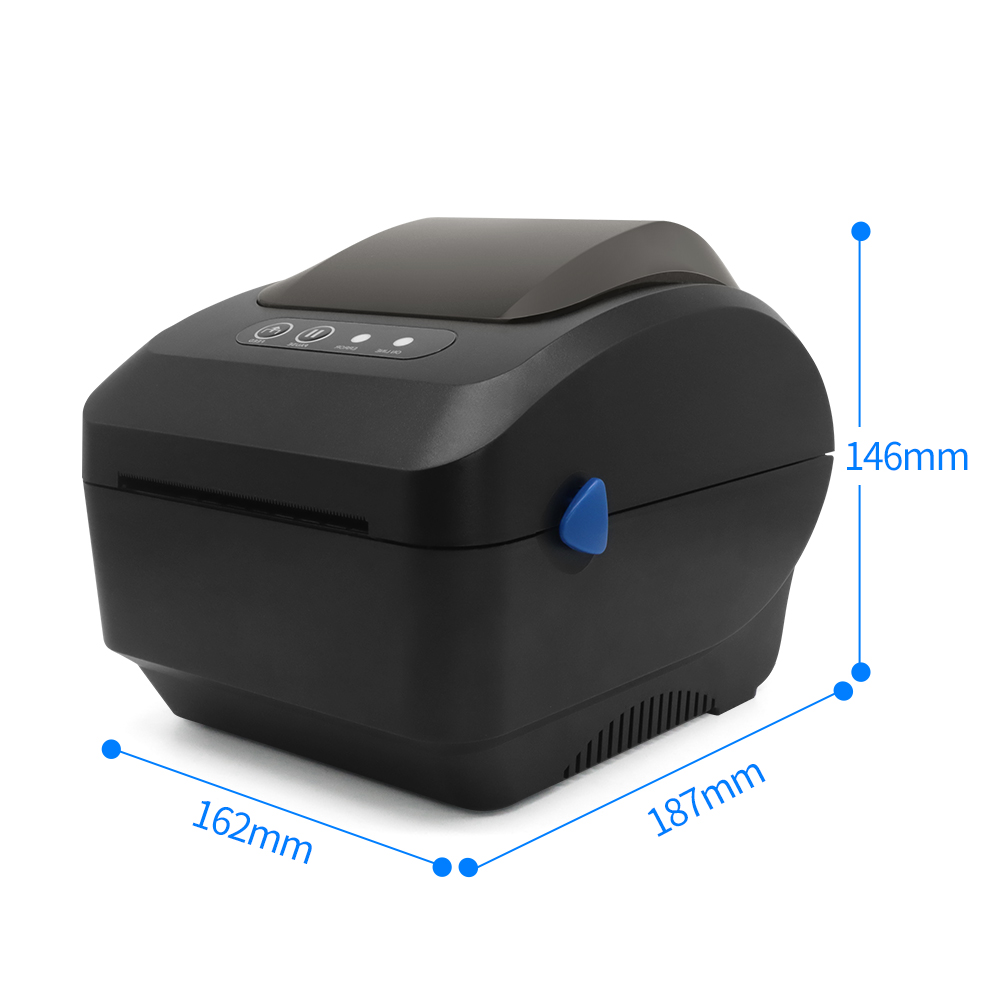

Physical Features	Dimension	187162146mm(DWH)
Physical Features	Weight	1.1 KG
Power supply	Input	AC 100~240V, 2A, 50~60Hz
Power supply	Output	DC 24V, 2.5A
Environmental Conditions	Operation	5~45℃，20~80%RH,no condensing
Environmental Conditions	Storage environment	-40~55℃，≤93%RH(40℃)
