| Printer specification parameter table | ||
| project | Project Description | Specifications |
| printing method | Thermal printer | |
| Print width | 72mm | |
| Print instructions | ESC | |
| printing speed | 70mm/S | |
| Print density | 384 dots/line | |
| Character size | 12*24,24*24 | |
| Connection method | Android & iOS & Windows columns | |
| Print interface | Bluetooth+USB | |

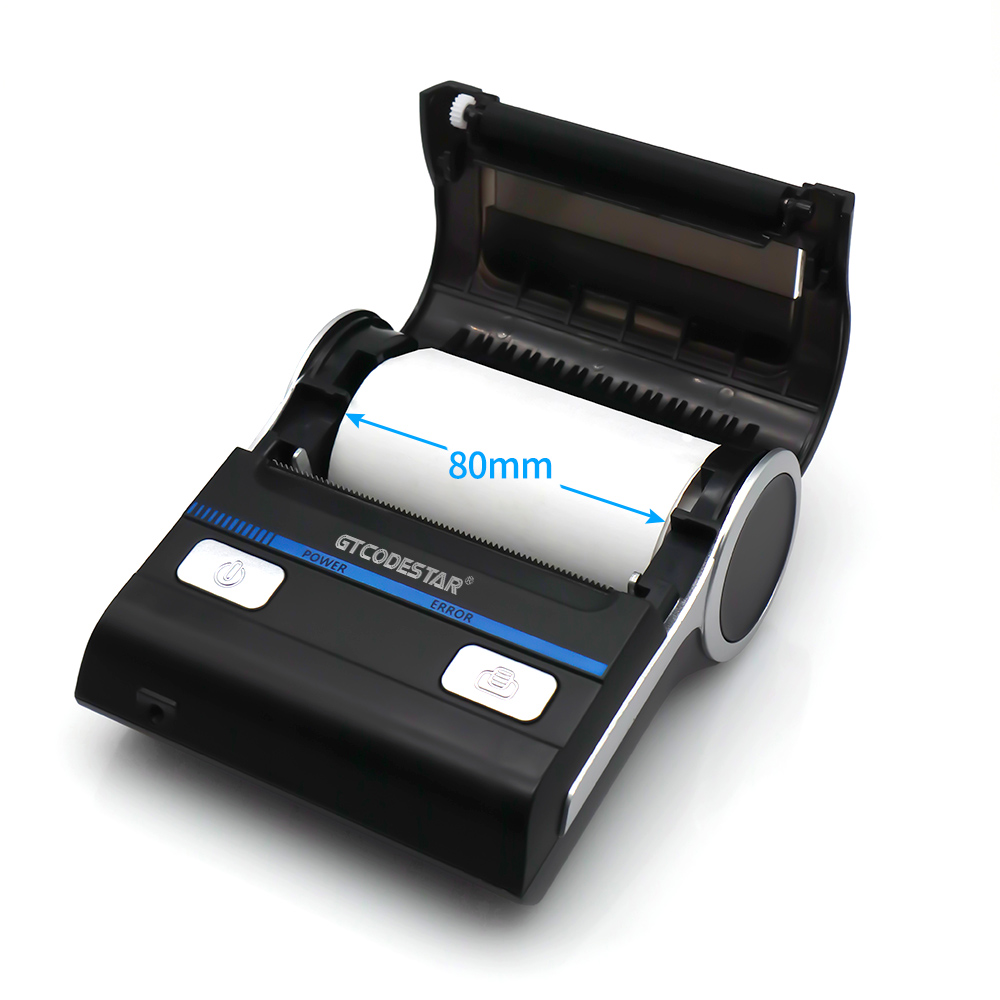

| Paper | Maximum paper width | 80mm |
| Support paper | Thermal paper/adhesive label | |
| Diameter of paper bin | ≦50mm | |
| Paper thickness | 0.05-0.15mm | |
| Paper loading method | Easy paper loading structure | |
| Targeting | Photoelectric sensor | |
| Print type | Barcode type | Code39,CODE128,QR Code |
| Font library content | GBK-Chinese and English UTF-8 (customized) CP437 - American/Canada English CP737 - Greek CP775 - Baltic CP850 - including Western European languages (German, Spanish, Italian) CP852 - including Central and Eastern European languages (Albanian, Croatian, Czech, English, Finnish, Hungarian, Irish, German, Polish, Romanian, Serbian, Slovak, Slovenian, Sorbian) CP855 - Cyrillic CP857 - Turkish CP858 - "Multilingual CP860 - Portuguese CP862 - Hebrew CP863 - Canadian CP865 - Germanic languages CP866 - Cyrillic/Russian CP1251 - Old Cyrillic CP1253 - Greek CP1254 - Turkish CP1255 - Hebrew | |
| reliability | Standby time | 34 hours |
| Print head life | 50KM | |
| Full power printing | 180m | |
| Charging time | 3 hours | |
| Out of paper detection | Optocoupler detection | |
| lithium battery | 1800mAh | |
| USB type | MicroUSB interface | |
| RAM memory | 48Kb | |
| ROM flash | 2M | |
| Processor frequency | 120M | |
| Software adaptation | Self-developed label & receipt app | |
| adapter | DC 9V / 1A 3.5mm round hole charging | |
| Pass the certification | Appearance patent/CCC/CE/ROHS | |

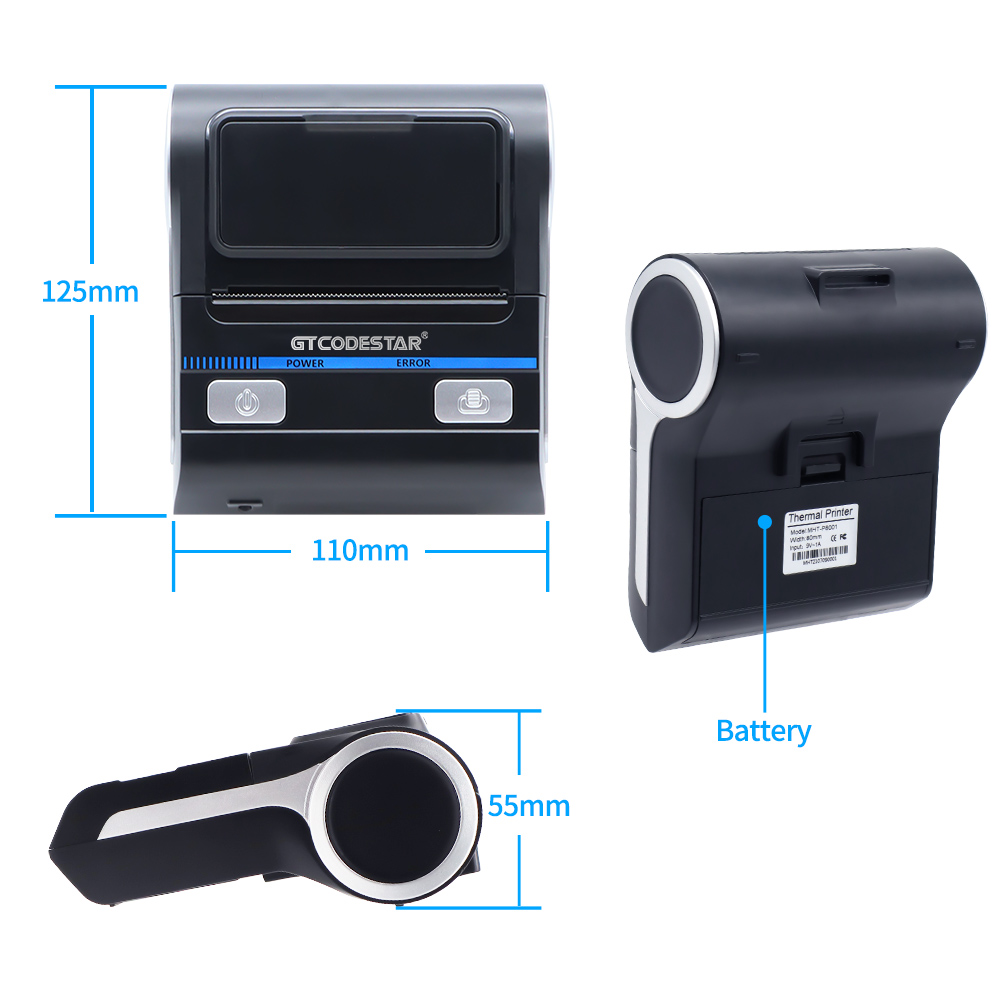

| size | Dimensions | 122*110*54mm |
| Outer box size | 150*125*112mm | |
| weight | 0.4kg | |
| working environment | Temperature: 0-45℃ Humidity: 20-90% | |
| Storage environment | Temperature: -10-60℃ Humidity: 10-90% (except paper rolls) | |
