| Model | X-520 | X-520AT | X-9100N | X-620U | X-620F | X-660B | |
| Precision | 3mil | 3mil | 4mil | 3mil | 3mil | 3mil | |
| Decoding speed | 300 | 300 | 400 | 300 | 300 | 300 | |
| Reading Mode | Laser | Laser | Laser | Laser | Laser | Laser | |
| Transmission distance | ≤1.8M | ≤1.8M | ≤1.8M | ≤80M | ≤80M | Wireless≤80M BT≤10M | |
| Decoding Capability | 1D Paper Bar code | √ | √ | √ | √ | √ | √ |
| 1D Screen Bar code | × | × | × | × | × | × | |
| 2D Paper Screen Code | × | × | × | × | × | × | |
| Connections | USB | √ | √ | √ | √ | √ | √ |
| Wireless | × | × | × | √ | √ | √ | |
| BT | × | × | × | × | × | √ | |
| Work pattern | Instant Upload Mode | √ | √ | √ | √ | √ | √ |
| Storage Mode | × | × | × | √ | √ | √ | |
| Scanning Mode | Manual Trigger | √ | √ | √ | √ | √ | √ |
| Continuous Scanning | √ | √ | × | √ | √ | √ | |
| Auto-sensing | × | √ | × | × | × | × | |
| Battery Capacity | / | / | / | 800mAh | 800mAh | 800mAh | |
| Continuous working time | / | / | / | 24H | 24H | 24H | |
| storage space | / | / | / | 512K | 512K | 512K | |
| Anti-Shock | 1.5M | 1.5M | 1.5M | 1.5M | 1.5M | 1.5M | |
| IP | IP52 | IP52 | IP52 | IP52 | IP52 | IP52 | |
| Vibration | × | × | × | × | × | × | |
| Buzzer NO/OFF | √ | √ | √ | √ | √ | √ | |
| Compatible Devices | PC Laptop Pos | PC Laptop Pos | PC Laptop Pos | PC Laptop Pos | PC Laptop Pos | PC Laptop Phone Tablet Pos | |
| Compatible System | WIN XP/7/8/10 Mac OS AndroidIOS Linux | WIN XP/7/8/10 Mac OS AndroidIOS Linux | WIN XP/7/8/10 Mac OS AndroidIOS Linux | WIN XP/7/8/10 Mac OS AndroidIOS Linux | WIN XP/7/8/10 Mac OS AndroidIOS Linux | WIN XP/7/8/10 Mac OS Android IOS Linux | |
Application Industry
Express logistics / Warehouse / Supermarket / Medical treatment
● Read all common 1D barcodes on paper.
● Support to add prefixes or suffixes, hiding barcode characters
● Using a high-speed laser scanning engine to efficiently read various ultra long
1D barcode

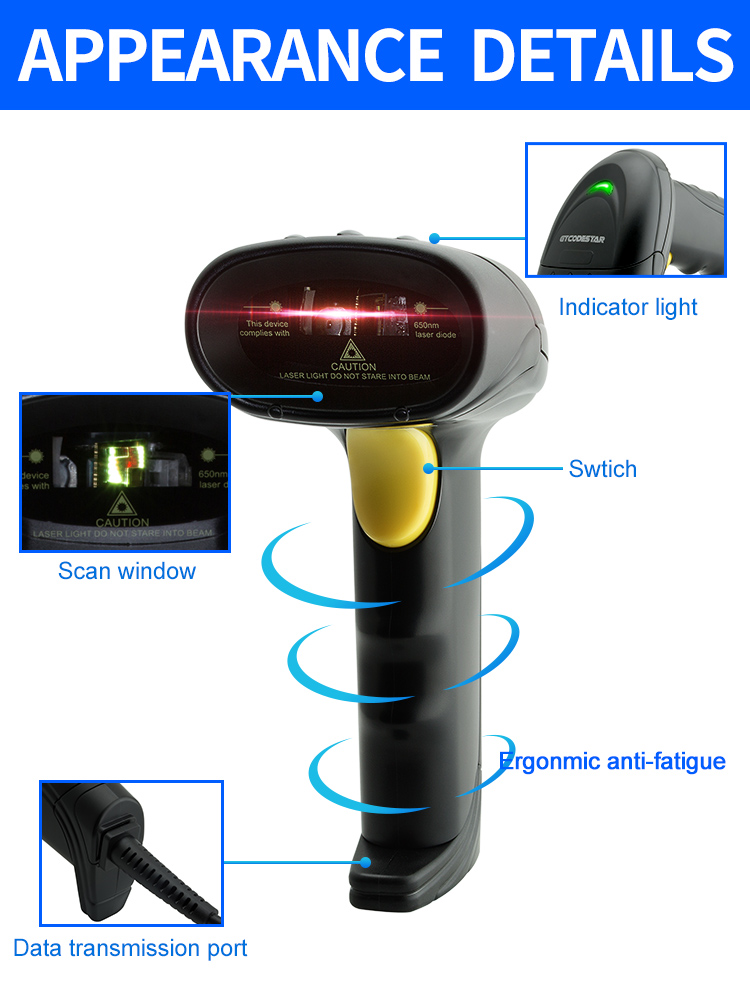

● LED indicator light and beep sound for quick feedback on working conditions
● Drive-free, plug and play.

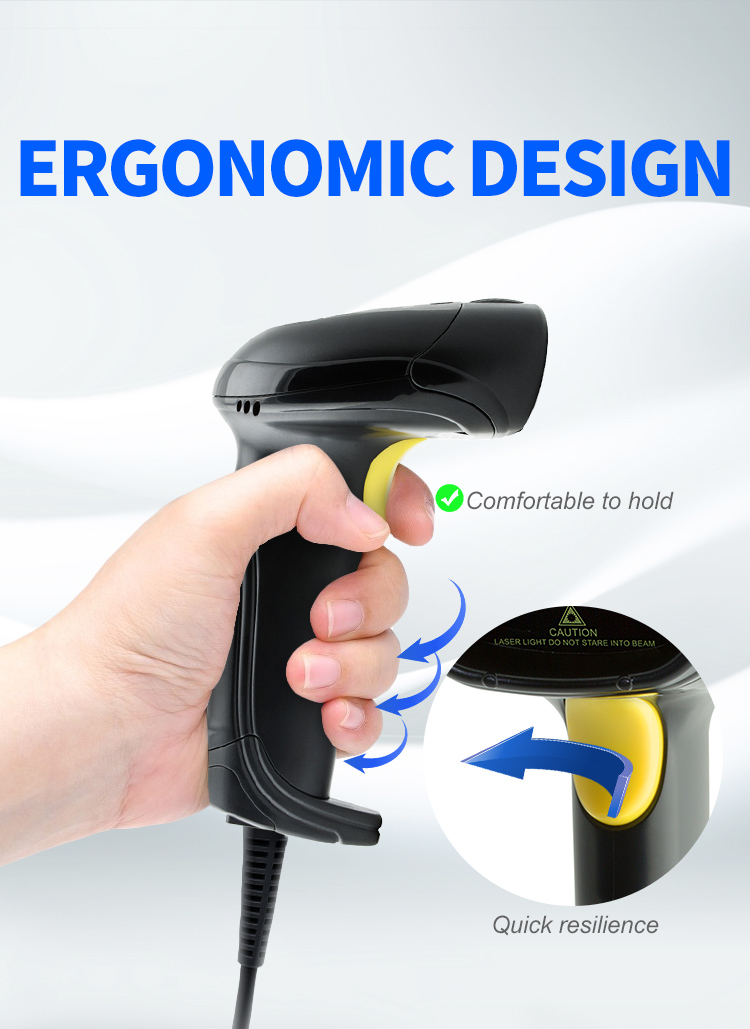

● Patented ergonomic design, comfortable to hold
Application Industry
Express logistics / Warehouse / Supermarket / Medical treatment
● Read all common 1D barcodes on paper.
● Support to add prefixes or suffixes, hiding barcode characters
● Using a high-speed laser scanning engine to efficiently read various ultra long
1D barcode
● LED indicator light and beep sound for quick feedback on working conditions
● Drive-free, plug and play.
● Patented ergonomic design, comfortable to ho
| Model | X-520 | ||||||
| Item | wired Laser Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PVC+PC | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Operating Current | 50mA（Standby）；30mA（Operating）；100mA（Max） | ||||||
| Power consumption | 0.5W | ||||||
| Weight | 131±5g（Including wire） | ||||||

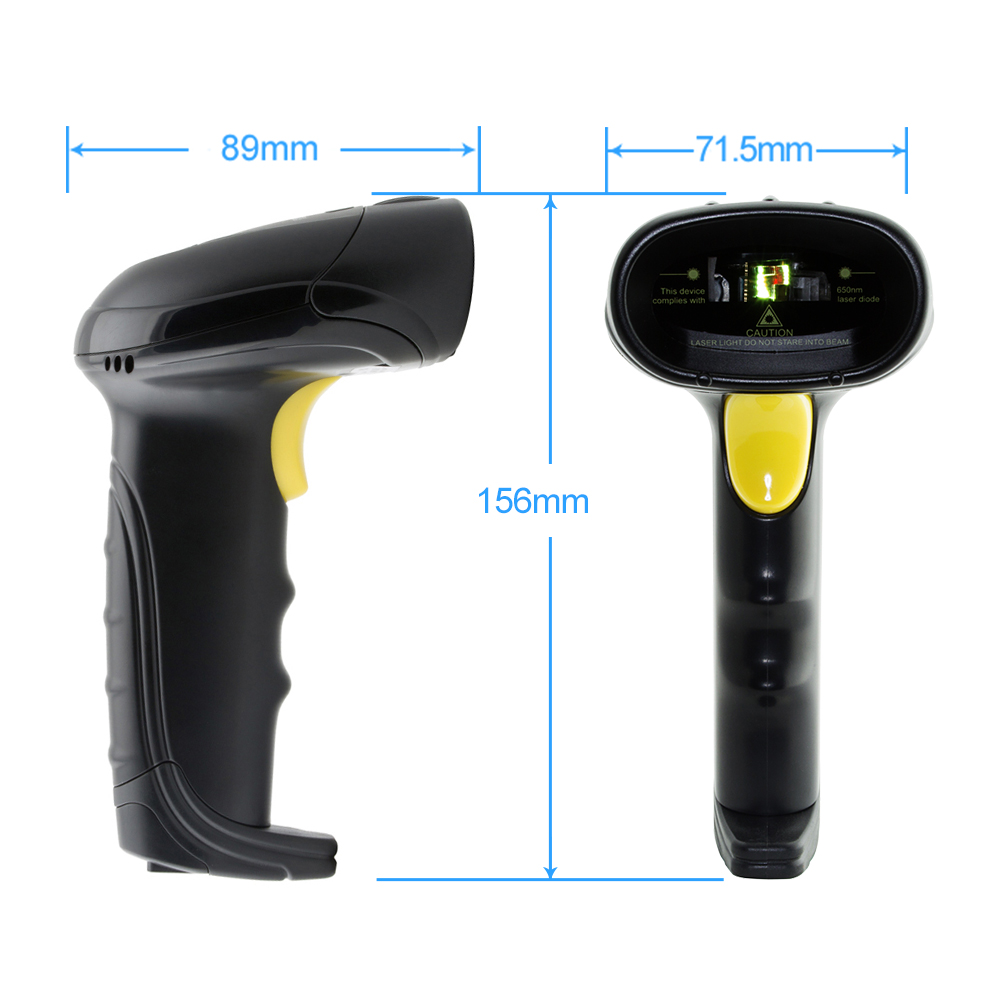

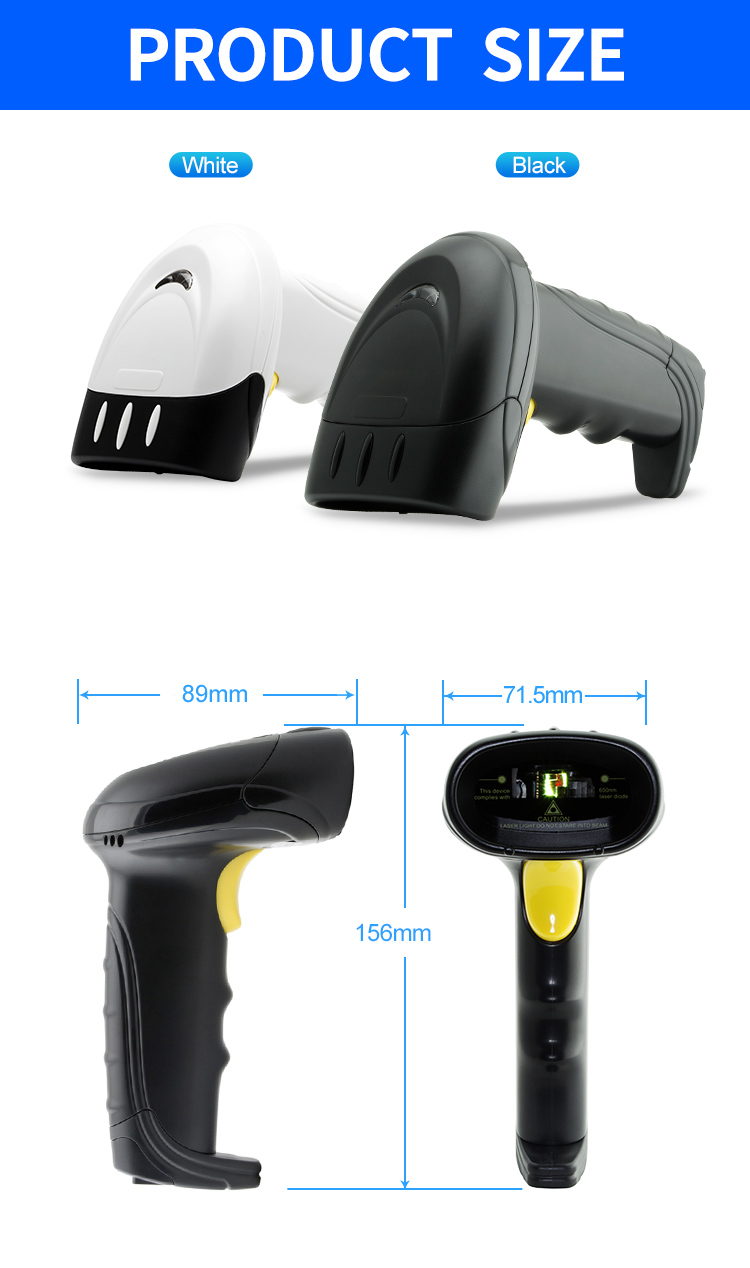

| Size | L * W * H：156 * 71.5 * 89（unit：mm） | ||||||
| Color | Black and gray | ||||||
| Button life | ＞100000frequency | ||||||
| Performance Parameter | |||||||
| Interface | USB；（RS232 customizable） | ||||||
| System supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language supported | English ；French；German | ||||||
| light source | Visible laser 650nm | ||||||
| Resolution | 4mil | ||||||
| Error Rate | 1/5000000 | ||||||
| Decoding speed | 100/sec | ||||||
| Reading mode | laser | ||||||
| Triggle Mode | Manual mode | ||||||
| Reading distance | 10mm-600mm | ||||||
| Prompt Mode | Buzzer+Indicator Light(LED) | ||||||
| Print Contrast | 30% | ||||||

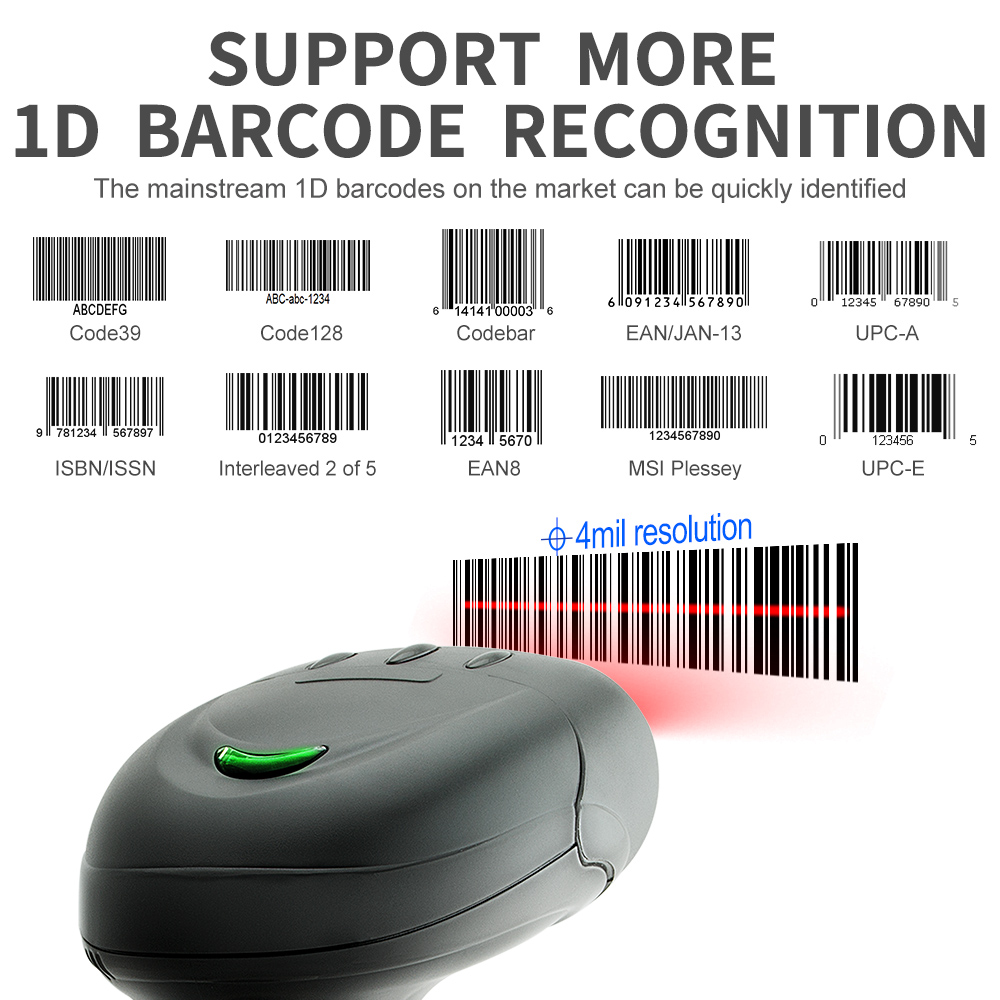

| Decoding Capability | Code25-Interleaved Code25-Standard Code25-Matri Code39-Regular Code39-FullASCII Code32 Code93-Regular Code93-FullASCII Code128 EAN/GSL/UCC-128Auto Codabar MSI EAN/JAN-13 UPC-A JAN-8 Code11 UPCE0 | ||||||
| Scanning Angle | Roll 30°、Pitch 75°、Yew 75° | ||||||
| Scanning Depth | Code39（4mil）：4 - 7 cm Code39（10mil）：6 - 28 cm | ||||||
| Environment Parameter | |||||||
| Environment Parameter | IP52 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||
| Earthquake resistance | Free fall 1.5m (concrete floor) | ||||||
| Solutions FAQ | |||||||||
| Q：Can not turn on or turn off immediately after turning on | |||||||||
| A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged) | |||||||||
| Q：Barcode data is not uploaded | |||||||||
| A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range) | |||||||||
| Q：There is a laser line, but can't read the bar code. | |||||||||
| A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual. | |||||||||
| Q：The scanned data is displayed incorrectly on the host | |||||||||
| A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center. | |||||||||
| Q：Other cases cannot be decoded | |||||||||
| A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again. |
