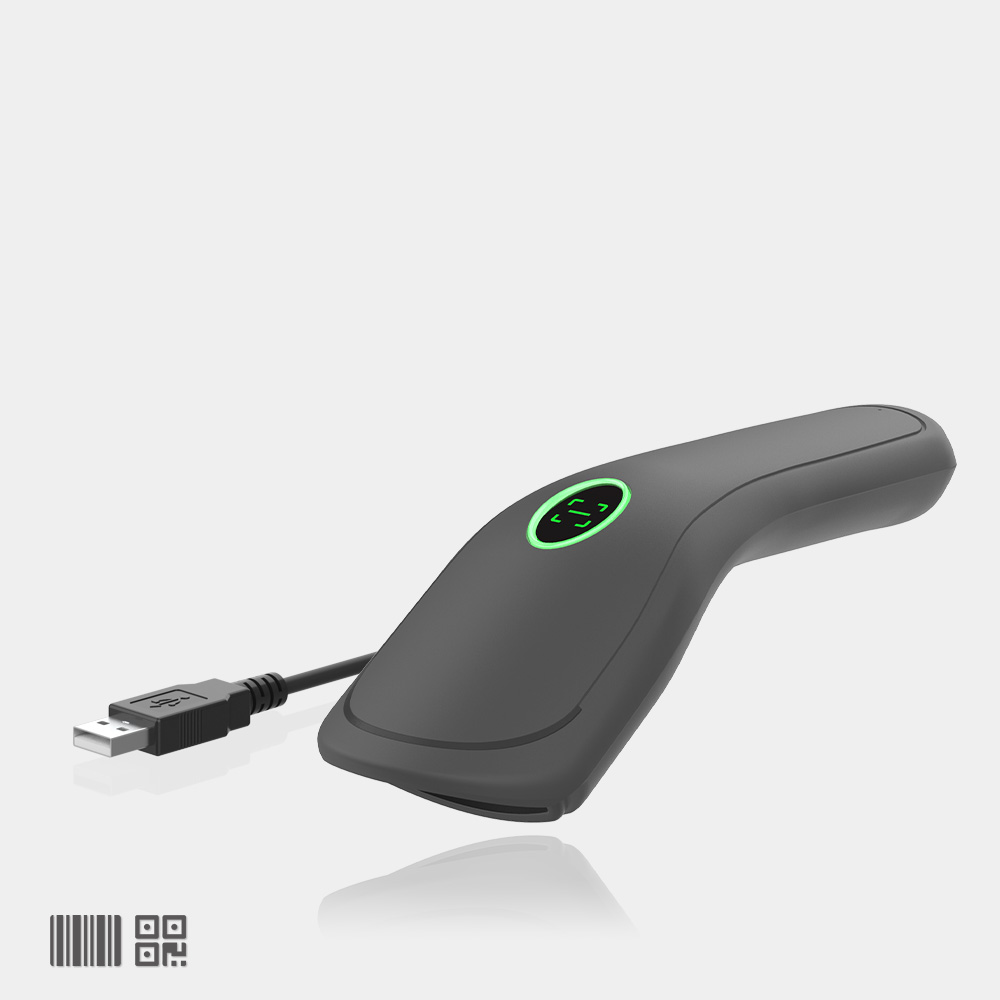

GT-3310E Wired 2D Barcode Scanner
Application Industry
Medical treatment / Supermarket / Catering / Mobile payment

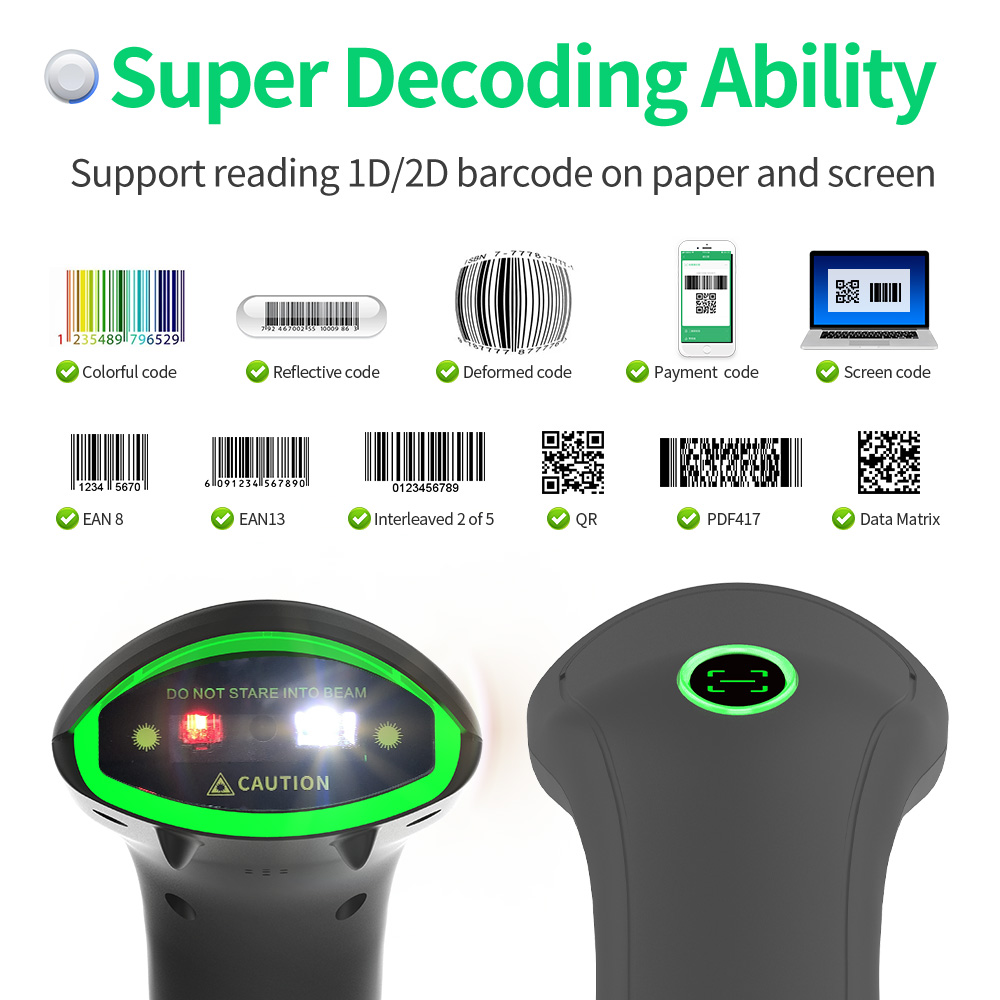

● Read common 1D/2D bar codes on screen or paper.
● Simple and fast screen payment code capture ability, which can accurately cope with
various mobile payment scenarios.
● Drive-free, plug and play.
● Support manual, auto-sensing,continuous scanning, can switch freely
| X-3310E Technical Specifications | |||||||
| Model | X-3310E | ||||||
| Product Name | 2D Wired Barcode Scanner | ||||||
| Physical Specifications | |||||||
| Material | ABS+PC | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Power Consumption | 0.85W(operating);0.55W(standby);1.05W(peak) | ||||||
| Operating Current | 168mA(operating);109mA(standby);200mA(peak) | ||||||
| Weight | 92.0g±5g(excluding cable) | ||||||

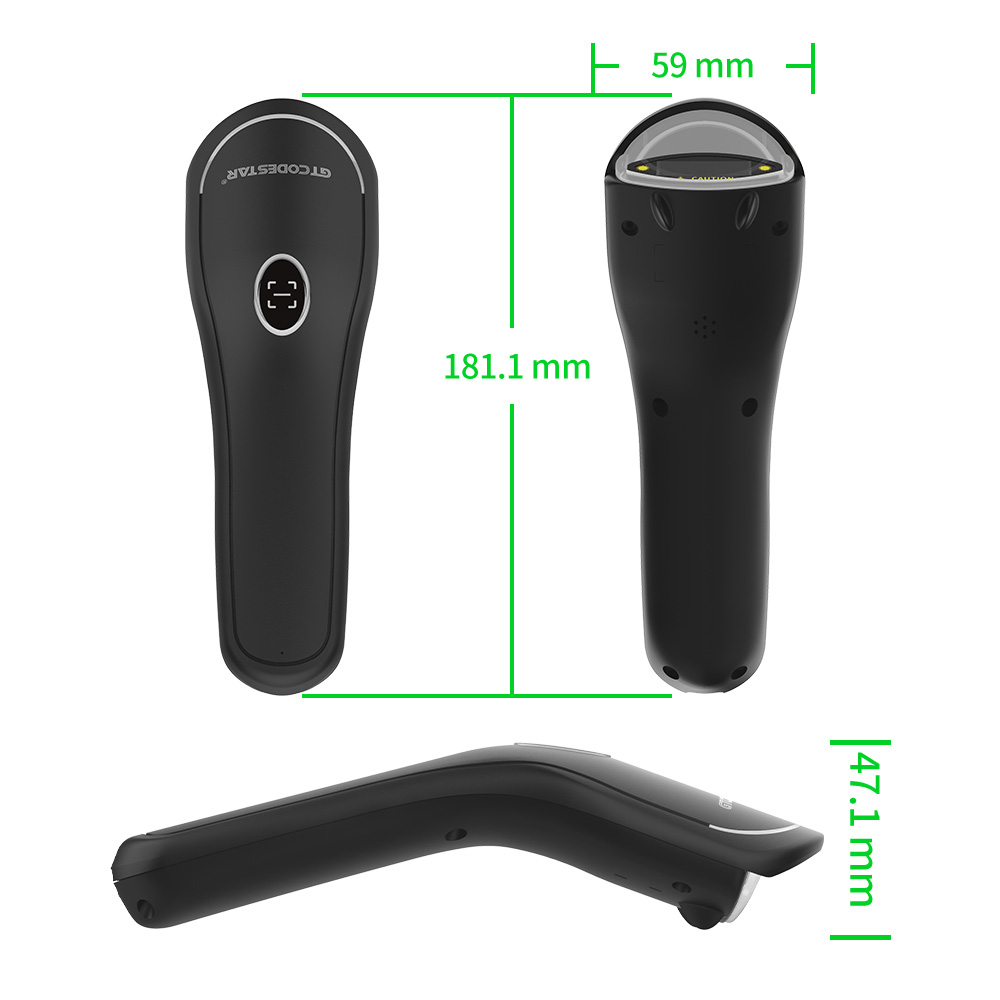

| Dimensions | L × W × H:181.1 * 59.0 * 47.1(unit: mm) | ||||||
| Color | Black ;White | ||||||
| Button Life | >100,000 presses | ||||||
| Performance Specifications | |||||||
| Interface | USB;(RS232customizable) | ||||||
| Supported Operating Systems | Linux,Android,Windows XP, 7, 8, 10,MAC | ||||||
| Supported Keyboard Languages | US English;Czech;French;German;Hungarian;Italian;Japanese;Spanish;TurkeyF;TurkeyQ [Supports virtual keyboard] | ||||||
| Light Source | Red LED aiming + White LED illumination | ||||||
| Resolution | ≥4mil | ||||||
| Bit Error Rate | 1/5,000,000 | ||||||
| Motion Tolerance | code 128:20cm/sec QR:25cm/sec | ||||||

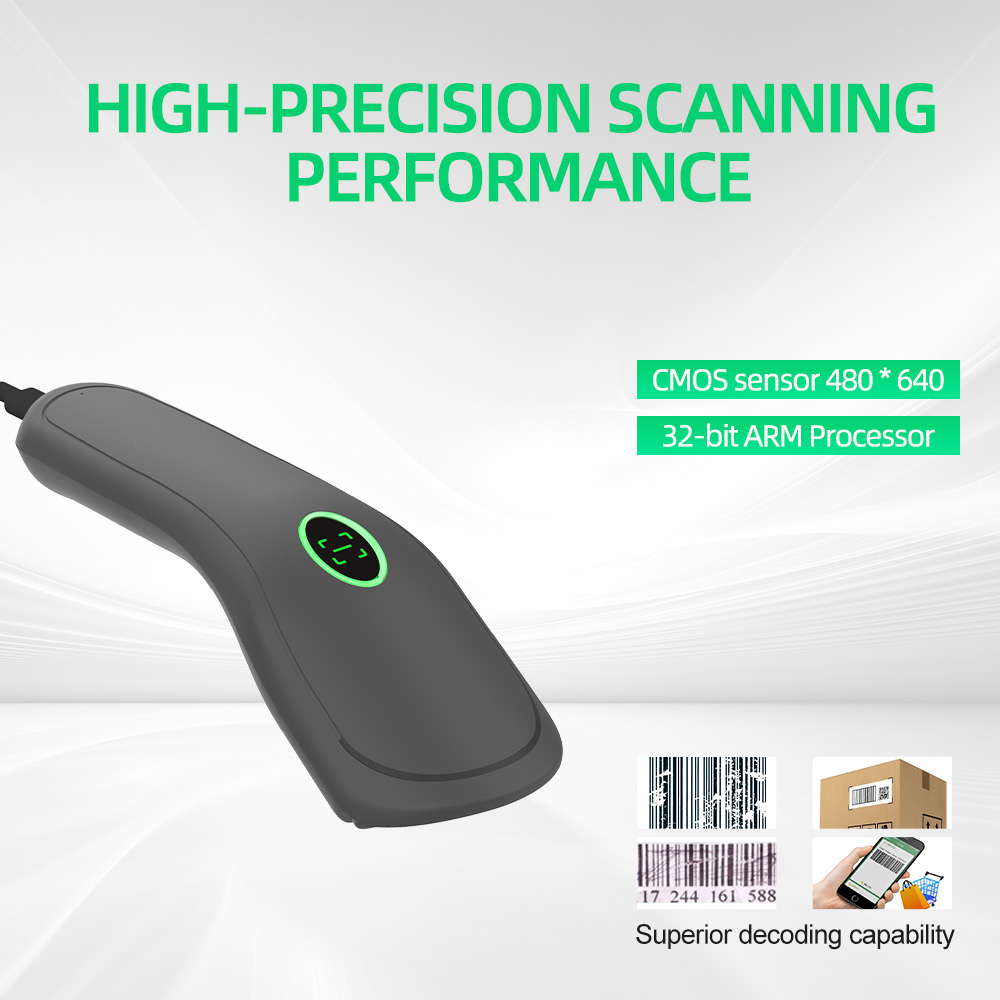

| Sensor | CMOS sensor 480 * 640 | ||||||
| Scanning Method | Image | ||||||
| Trigger Mode | Manual Trigger Mode;Continuous Scan Mode;Auto-sensing Mode | ||||||
| Feedback | Buzzer+indicator light(LED) | ||||||
| Print Contrast | ≥30% | ||||||
| Scan Angle | Roll360°,Horizontal42°,Vertical37° | ||||||
| Supported Symbologies | 1D | ● Code25-Interleaved ● Code25-Standard ● Code25-Matrix ● RSS-14 ● Code39-Regular ● Code39-FullASCII ● Code93-Regular ● Code93-FullASCII ● Code128 ● Code11 ● UPCE0/E1 ● EAN/GSL/UCC-128Auto ● Codabar ● MSI ● EAN/JAN-13 ● UPC-A ● JAN/EAN-8 ● ChinaPost 25 ● Plessey | |||||
| 2D | ● Data Matrix ● QR ● PDF417 ● Micro QR ●HanXin ● Micro PDF 417 ● Maxi Code ●Aztec | ||||||
| Depth of Field | QR 9.17 mil(7 bytes):6cm - 10cm Data Matrix 9.17mil(7 bytes):7cm - 10cm code93 5.83mil(14 bytes):7cm - 10cm refund code 28 bytes:10cm - 15cm WeChat Pay QR code:9cm - 45cm | ||||||
| Environmental Specifications | |||||||
| IP Rating | IP42 | ||||||
| Operating Temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85% (non-condensing) | ||||||
| Storage Humidity | 20% to 85% (non-condensing) | ||||||
| ESD Protection | 15 kV air discharge | ||||||
| Drop Resistance | free fall1.5m(onto concrete) | ||||||
| Ambient Light | 0~100000LUX | ||||||
| Certifications | |||||||
| EMC:EN55032,55035,FCC:Part 15 Class B,Rohs | |||||||
| Note: Specifications are subject to change without notice. | |||||||
| Prepared by: Yang Wulue Reviewed by: Approved by: | |||||||
| Solutions FAQ | |||||||||
| Q：Can not turn on or turn off immediately after turning on | |||||||||
| A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged) | |||||||||
| Q：Barcode data is not uploaded | |||||||||
| A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range) | |||||||||
| Q：There is a laser line, but can't read the bar code. | |||||||||
| A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual. | |||||||||
| Q：The scanned data is displayed incorrectly on the host | |||||||||
| A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center. | |||||||||
| Q：Other cases cannot be decoded | |||||||||
| A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again. |
