● Support reading 1D/2D barcode

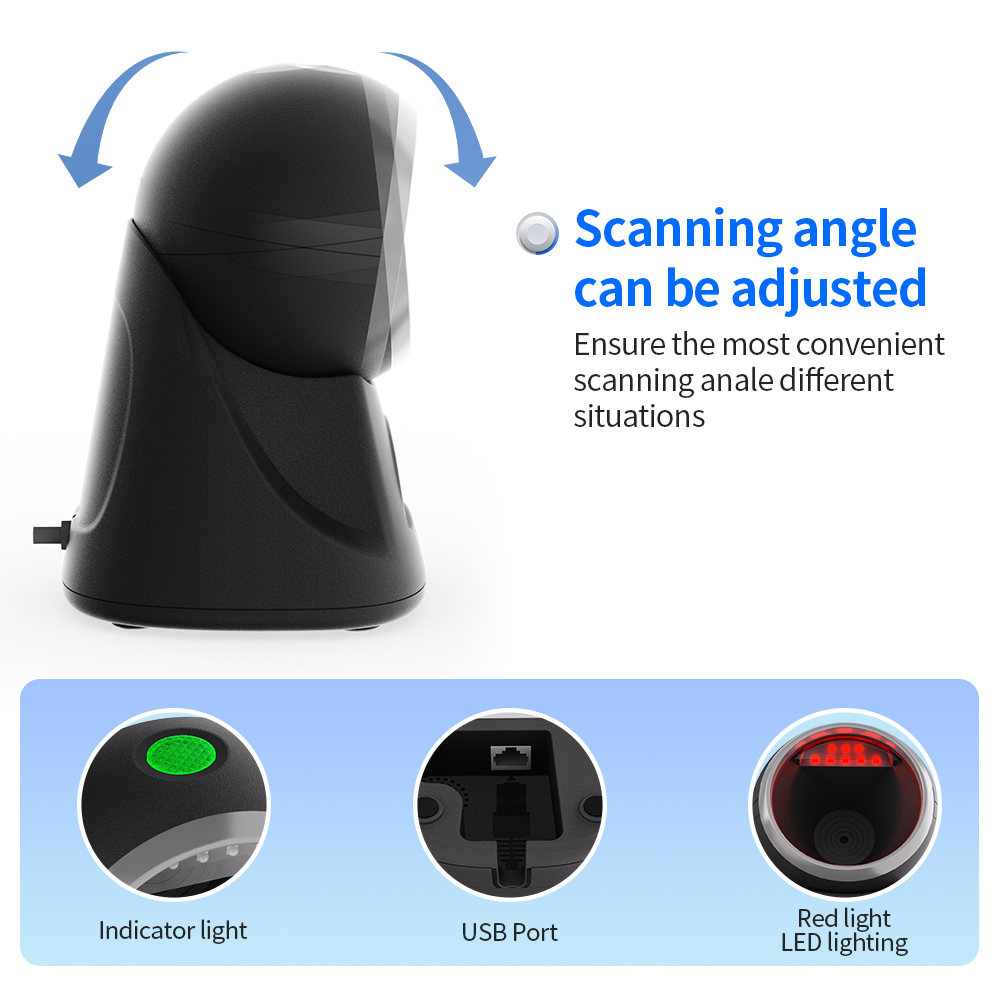

● Unique appearance design, adjustable angle up and down, can better compatible to
usage scenarios such as cash register and payment

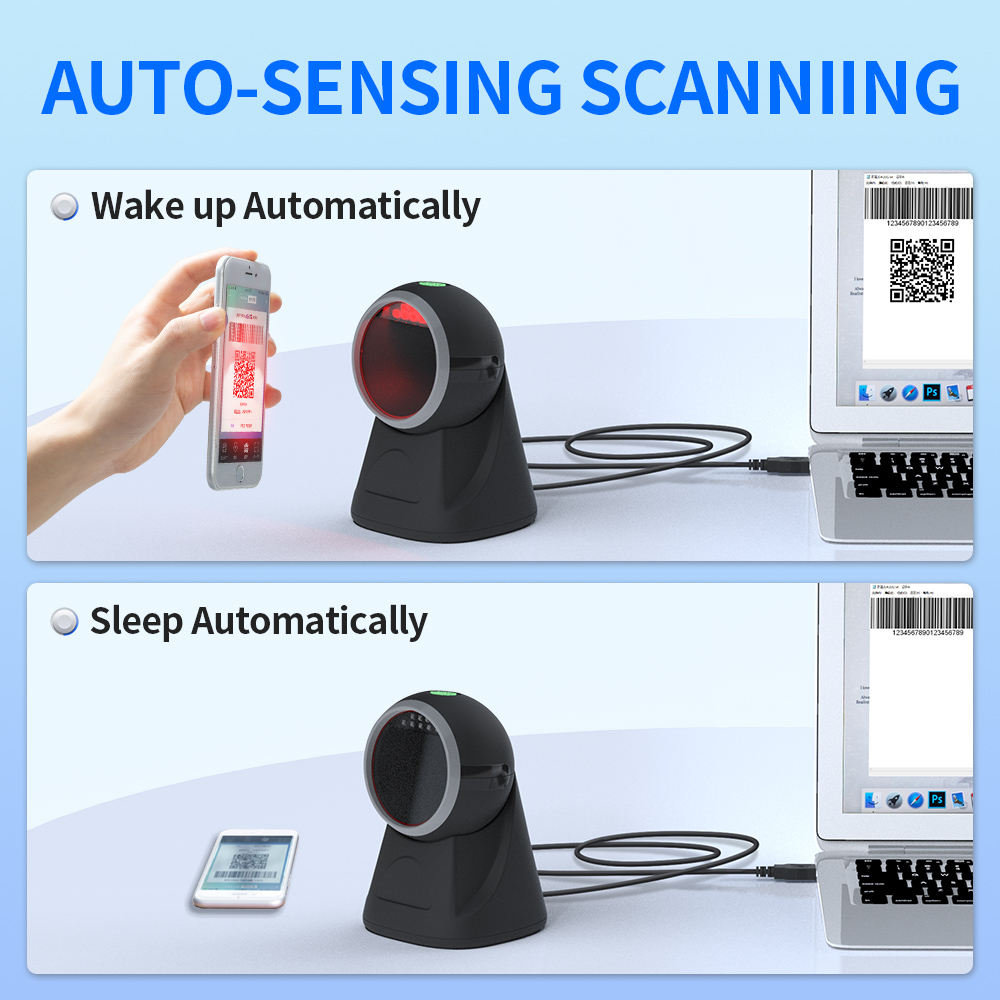

● Automatic wake-up function, reduce power consumption
| GT-8801D Technical Specifications | |||||||
| Model | GT-8801D Technical Specifications | ||||||
| Product Name | 2D Imager Presentation Scanner | ||||||
| Physical Specifications | |||||||
| Material | ABS+PC+TPU+PMMA | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Operating Current | 0.12A(standby);0.18A(operating);0.26A(peak) | ||||||
| Power Consumption | 0.60W(standby);0.90W(operating);1.30W(peak) | ||||||
| Weight | 280g±3g(excluding cable) | ||||||

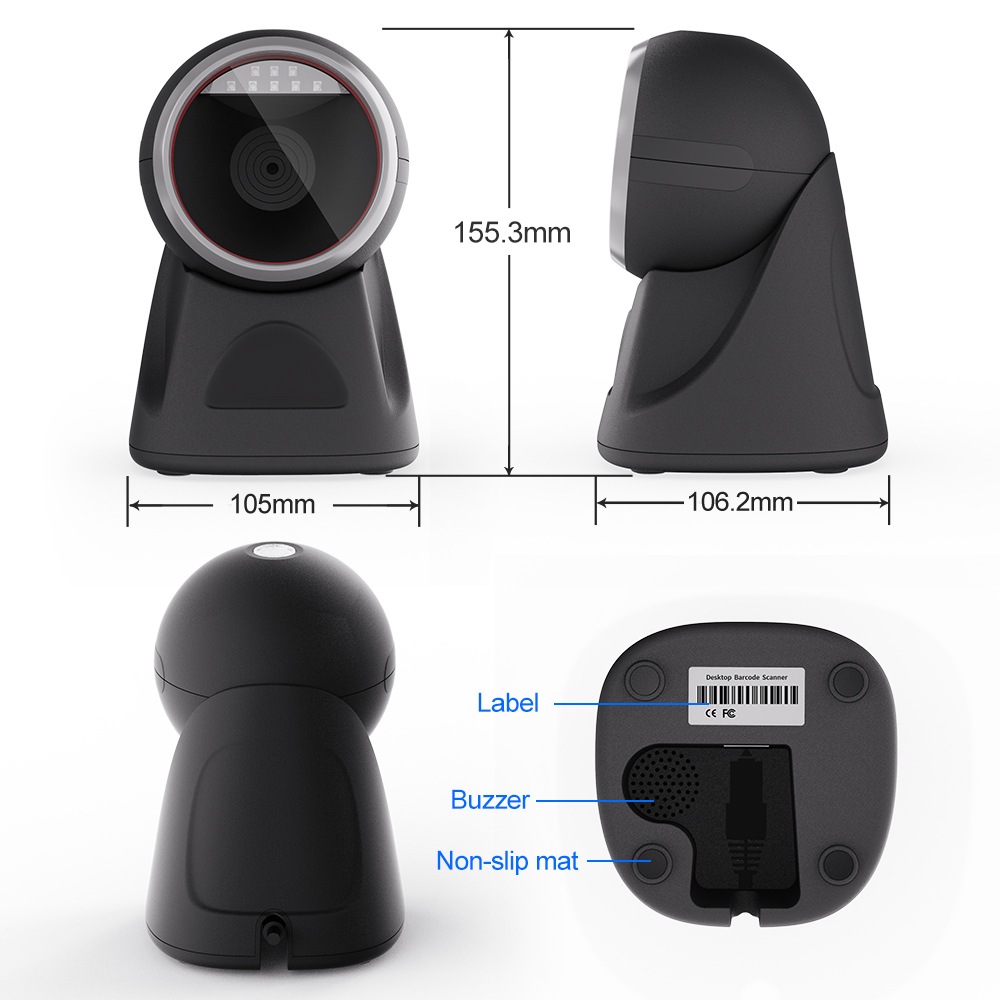

| Dimensions | L × W × H:105.0 * 155.4 * 106.3(unit: mm) | ||||||
| Color | Black, White | ||||||
| Performance Specifications | |||||||

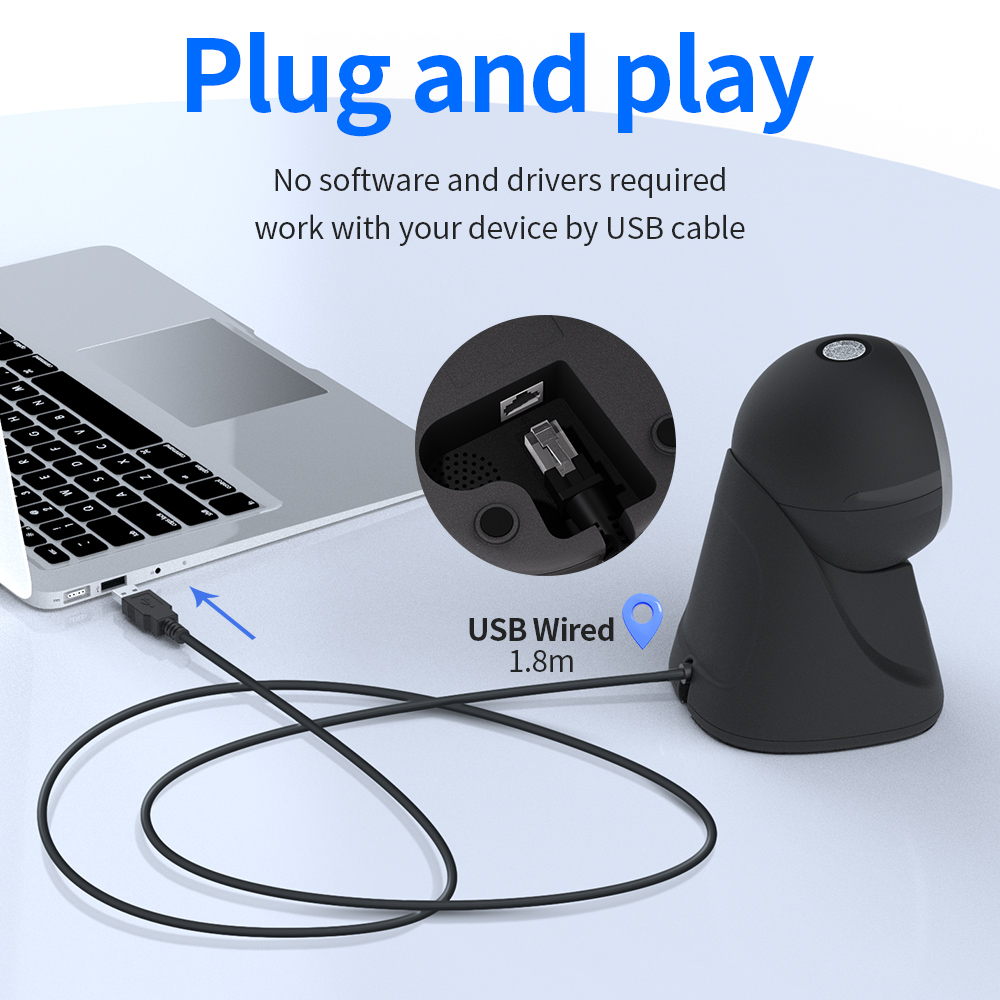

| Interface | USB | ||||||

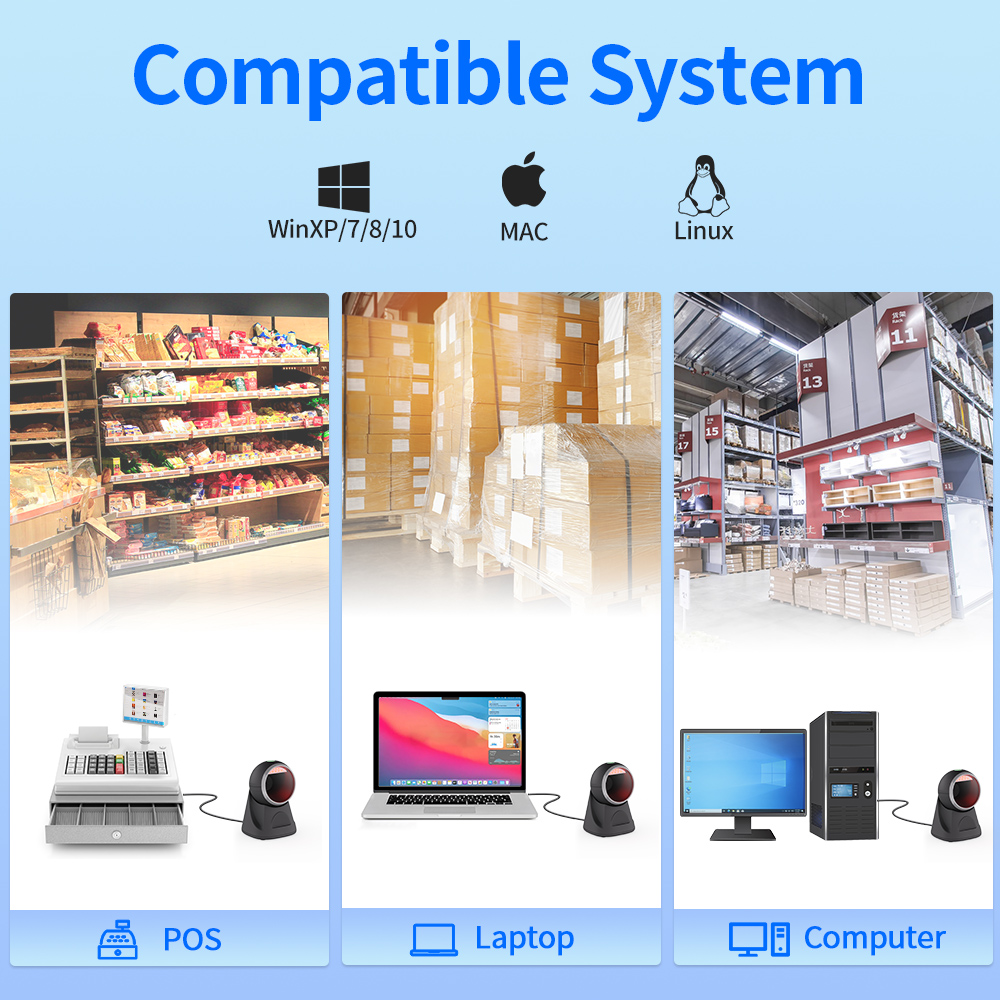

| Supported Operating Systems | Linux,Android,Windows XP, 7, 8, 10,MAC | ||||||
| Supported Keyboard Languages | English;Belgium;Finland;France;Germany;Italy;Sweden;United Kingdom;Denmark;Norway;Spain;Portugal;TurkeyQ;TurkeyF;Japan;Russia;Czech Republic;Thailand;Ukraine;Brazil;Greece;Hungary;Netherlands;Poland;Romania;Slovakia; [Supports virtual keyboard] | ||||||
| Sensor | global-shutterCMOSsensor 480 * 640 | ||||||
| Light Source | illumination LED:redLED indicator light:greenLED | ||||||
| Processor | 32-bit ARM MCU + DSP | ||||||
| Motion Tolerance | Code39: 0.95m/sec QR: 1.02m/sec | ||||||
| Resolution | Code39 ≥4mil | ||||||
| Bit Error Rate | 1/5,000,000 | ||||||
| Scanning Method | Image-based Scanning | ||||||
| Trigger Mode | Sensing Mode | ||||||
| Feedback | Buzzer+indicator light(greenLED) | ||||||
| Scan Angle | Roll 360°,Pitch ± 65°,Skew ± 65° | ||||||
| Invoice Barcode Support | Supported | ||||||
| Print Contrast | ≥25% | ||||||

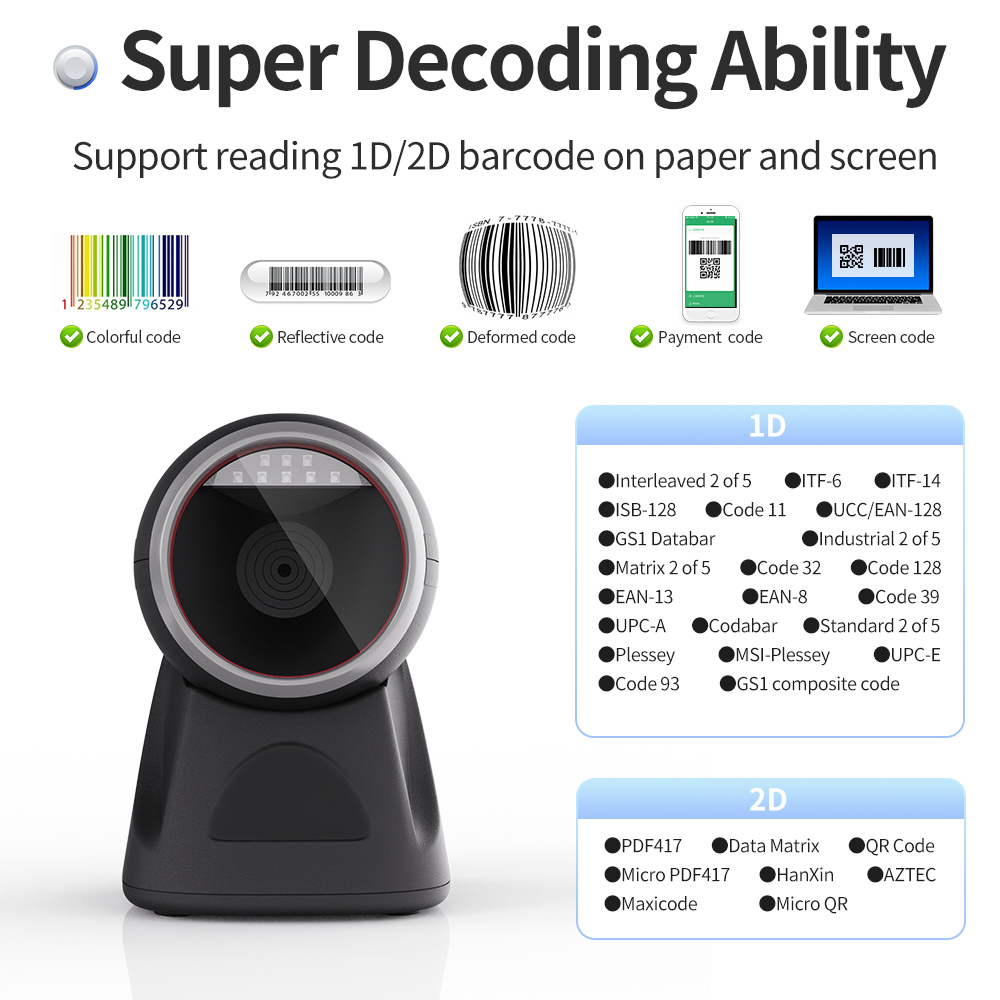

| Supported Symbologies | 1D | ◎Interleaved 2 of 5 ◎ITF-6 ◎ITF-14 ◎ISB-128 ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Industrial 2 of 5 ◎Matrix 2 of 5 ◎Code 32 ◎Code 128 ◎EAN-13 ◎EAN-8 ◎Code 39 ◎UPC-A ◎Codabar ◎Standard 2 of 5 ◎Plessey ◎MSI-Plessey ◎UPC-E ◎Code 93 ◎GS1 composite code | |||||
| 2D | ◎PDF417 ◎Data Matrix ◎QR Code ◎Micro PDF417 ◎HanXin ◎AZTEC ◎Maxicode ◎Micro QR | ||||||
| Depth of Field | QR Code 10.83mil:2cm - 9cm QR Code 20.83mil:2cm - 21cm Code 39 5.83mil:1cm - 12cm Code 39 10.83mil:1cm - 21cm EAN13 9.17:1cm - 15cm EAN13 10.83:2cm - 21cm WeChat Pay:0cm - 43cm Alipay:0cm - 43cm | ||||||
| Environmental Specifications | |||||||
| IP Rating | IP42 | ||||||
| Operating Temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85% (non-condensing) | ||||||
| Storage Humidity | 20% to 85% (non-condensing) | ||||||
| ESD Protection | 15 kV air discharge | ||||||
| Drop Resistance | free fall1.2m(onto concrete) | ||||||
| Ambient Light | 0~100000LUX | ||||||
| Certifications | |||||||
| Solutions FAQ | |||||||||
| Q：Can not turn on or turn off immediately after turning on | |||||||||
| A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged) | |||||||||
| Q：Barcode data is not uploaded | |||||||||
| A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range) | |||||||||
| Q：There is a laser line, but can't read the bar code. | |||||||||
| A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual. | |||||||||
| Q：The scanned data is displayed incorrectly on the host | |||||||||
| A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center. | |||||||||
| Q：Other cases cannot be decoded | |||||||||
| A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again. |
