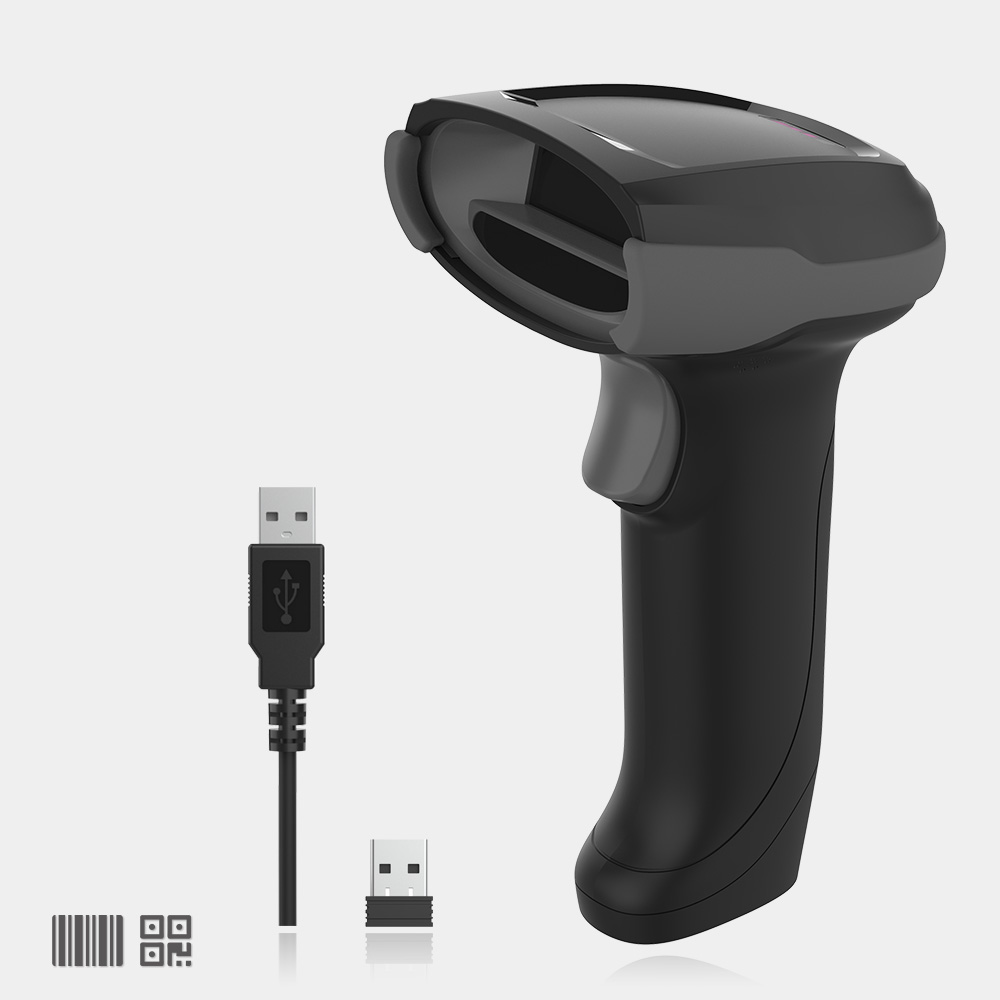

X-1601C Wireless 2D Barcode Scanner
Application Industry
Medical treatment / Supermarket / Catering / Mobile payment

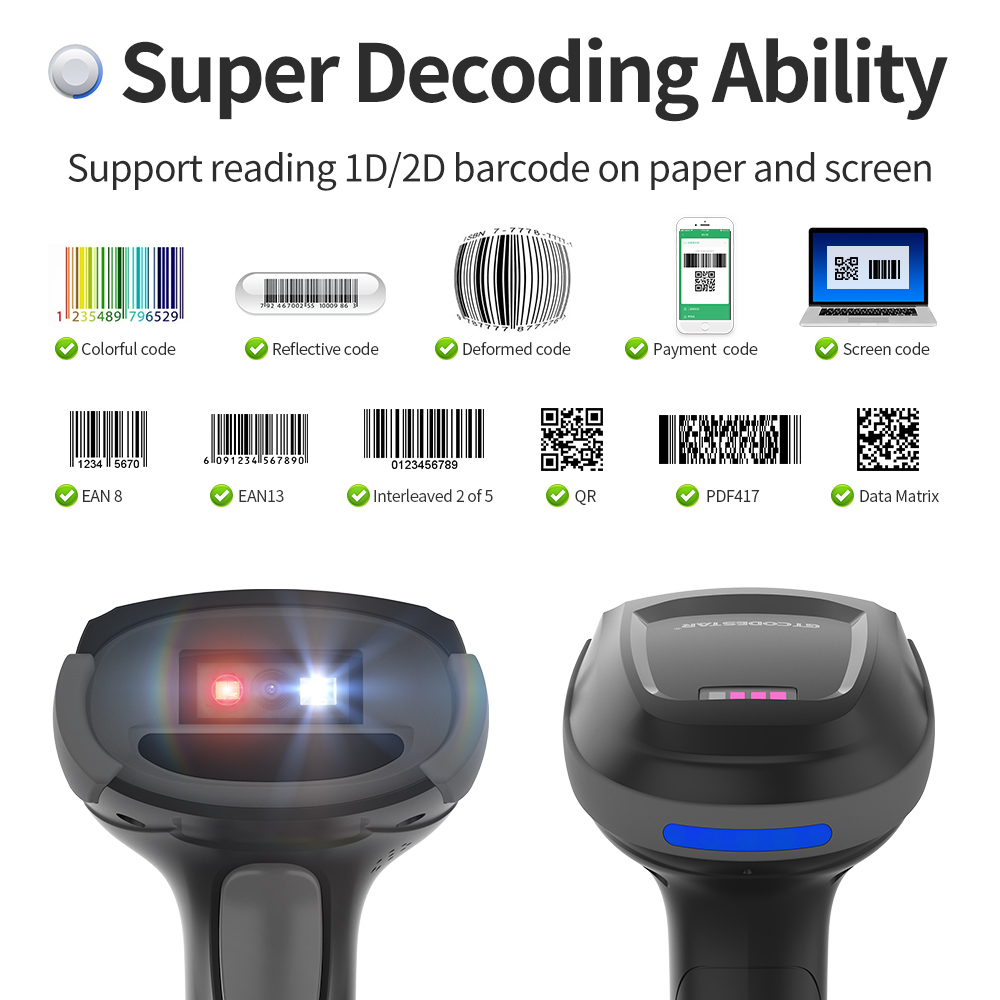

● Read common 1D/2D bar codes on screen or paper.
● White LED illumination + Red LED positioning. Automatically locks the light color
upon detecting a suitable fill‑ light condition for improved scanning performance.

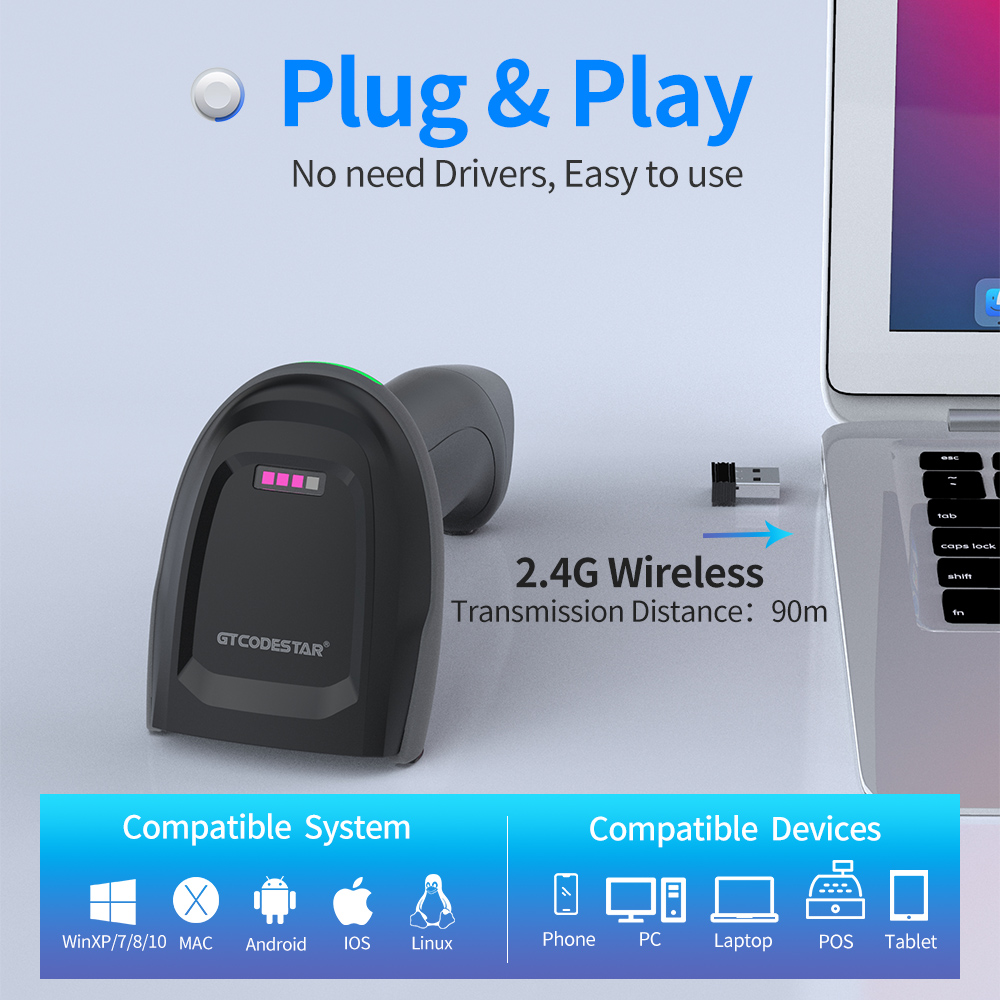

● Drive-free, plug and play.
● Support continuous scanning and automatic scanning.
| X-1501397 Technical Specifications | |||||||
| Model | X-1501397 | ||||||
| Product Name | 2D Wireless Barcode Scanner | ||||||
| Physical Specifications | |||||||
| Material | ABS + PC + TPU | ||||||

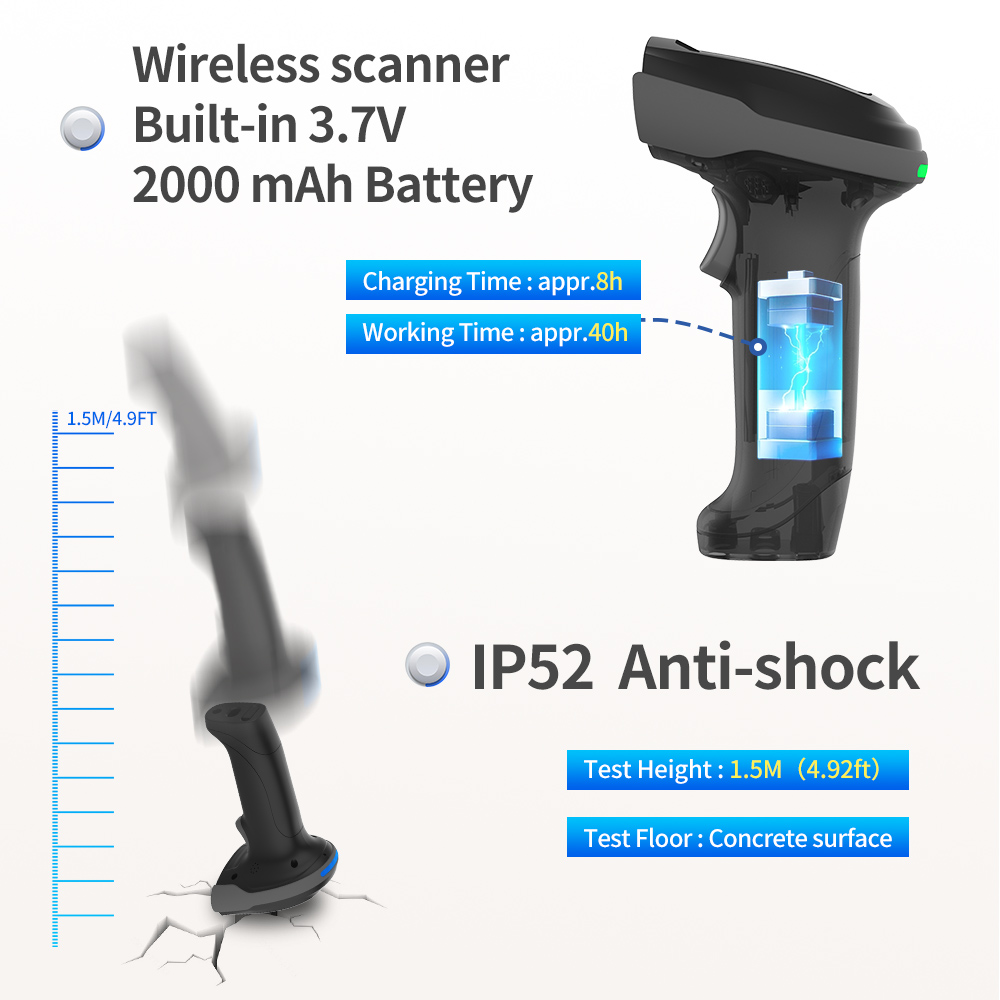

| Power Supply | Charging DC 5V ±5% ; built-in 3.7V 2000mA lithium battery | ||||||
| Power | 0.50W(operating); 0.25W(standby); 1.00W(peak) | ||||||
| Weight | Barcode Scanner | 168g±3g(excluding cable) | |||||
| Charging Cradle | 68g±3g(excluding cable) | ||||||
| Dimensions | Barcode Scanner | L × W × H:157.6*72.5*89.5(unit: mm) | |||||
| Charging Cradle | L × W × H:111.3*86.5*57.3(unit: mm) | ||||||
| Color | Black/Gray | ||||||

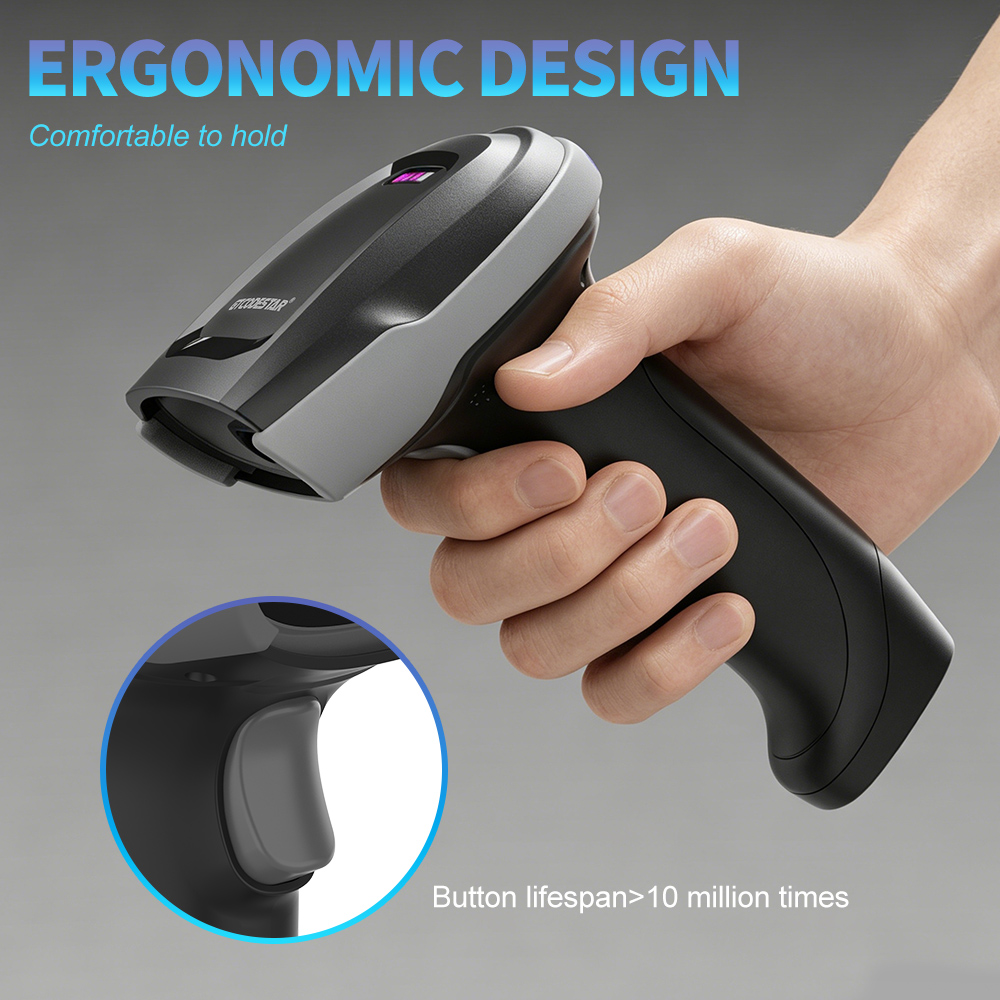

| Button Life | >10,000,000 presses | ||||||
| Performance Specifications | |||||||
| Data Upload | USB;2.4G;Bluetooth | ||||||
| Supported Operating Systems | Linux,Android,Windows XP, 7, 8, 10,MAC | ||||||
| Supported Keyboard Languages | English-United States;French-Canada;Dutch-Netherlands;Spanish-International;Latin American Spanish-Argentina;Portuguese-Brazil;Danish-Denmark;English-United Kingdom;Italian-Italy142;French-France;German-Germany;Portuguese-Portugal;Finnish-Finland;Turkish-F;Japanese; Russian-Russia;Northern Sami-Norway [Supports multiple keyboard layouts] | ||||||
| Sensor | 640×480 CMOS sensor | ||||||
| Processor | 32-bit ARM MCU | ||||||
| Memory Capacity | 512 KB(custom capacity available) | ||||||
| Light Source | White LED illumination + red LED aiming | ||||||
| Motion Tolerance | Code128: 50cm/sec QR: 55cm/sec | ||||||

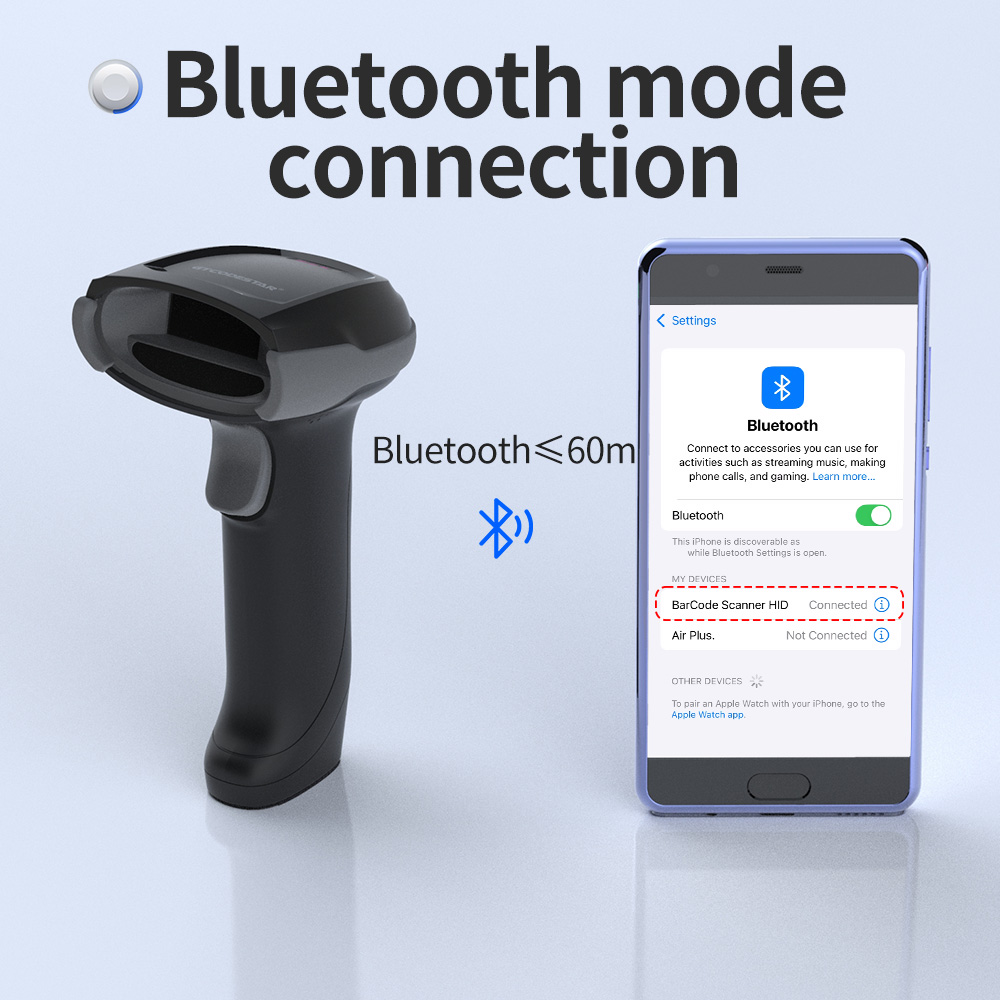

| Wireless Transmission Range | 2.4G≤90m(line of sight) Bluetooth≤60m(line of sight) | ||||||
| Scanning Method | Image | ||||||
| Resolution | ≥4mil | ||||||
| Bit Error Rate | 1/5,000,000 | ||||||
| Scanning Method | Image | ||||||
| Trigger Mode | Manual Trigger Mode;Continuous Scan Mode;Auto-sensing Mode | ||||||
| Feedback | Buzzer + indicator light | ||||||
| Scan Angle | Horizontal 42°,Vertical 34°,Roll 360° | ||||||
| Print Contrast | ≥25% | ||||||
| Charging Time | appr.6h | ||||||
| Continuous Operating Time | appr.12h | ||||||
| Supported Symbologies | 1D | ◎Interleaved 2 of 5 ◎ITF-6 ◎ITF-14 ◎ISBN ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Matrix 2 of 5 ◎Industrial 2 of 5 ◎Code 128 ◎EAN-13 ◎EAN-8 ◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar ◎Standard 2 of 5 ◎Plessey ◎MSI ◎Code 93 | |||||
| 2D | ◎PDF417 ◎Data Matrix ◎QR Code ◎Maxi code ◎AZTEC ◎Micro QR ◎Hanxin ◎Micro PDF417 | ||||||
| Depth of Field | EAN-13 | 60mm-320mm (12.50mil) | |||||
| Code39 | 50mm-180mm (7.50mil) | ||||||
| QR Code | 20mm-200mm (20mil) | ||||||
| Data Marix | 20mm-80mm (12mil) | ||||||
| PDF 417 | 20mm-140mm (7.50mil) | ||||||
| Environmental Specifications | |||||||
| IP Rating | IP42 | ||||||
| Operating Temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85% (non-condensing) | ||||||
| Storage Humidity | 20% to 85% (non-condensing) | ||||||
| ESD Protection | 15 kV air discharge | ||||||
| Drop Resistance | free fall1.5m | ||||||
| Ambient Light | 0→100000Lux | ||||||
| Certifications | |||||||
| Solutions FAQ | |||||||||
| Q：Can not turn on or turn off immediately after turning on | |||||||||
| A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged) | |||||||||
| Q：Barcode data is not uploaded | |||||||||

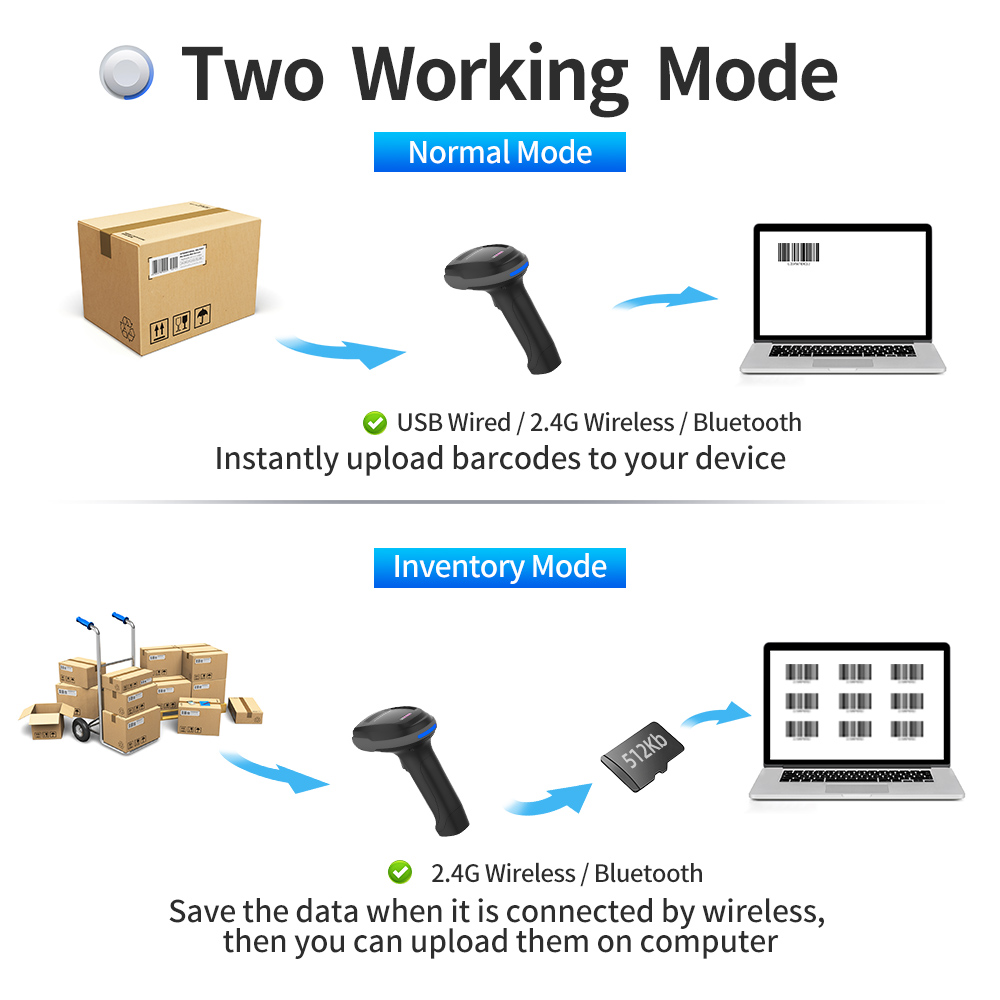

| A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range) | |||||||||
| Q：There is a laser line, but can't read the bar code. | |||||||||
| A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual. | |||||||||
| Q：The scanned data is displayed incorrectly on the host | |||||||||
| A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center. | |||||||||
| Q：Other cases cannot be decoded | |||||||||
| A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again. |
