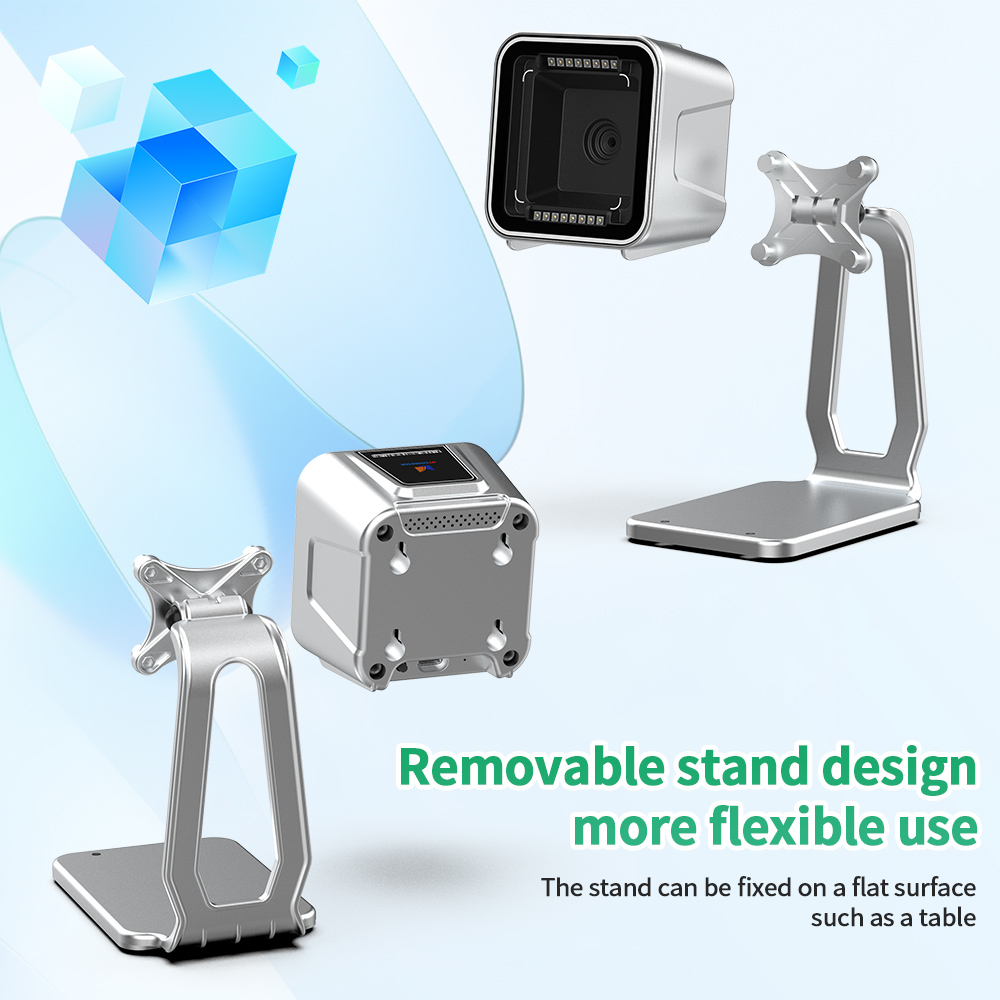

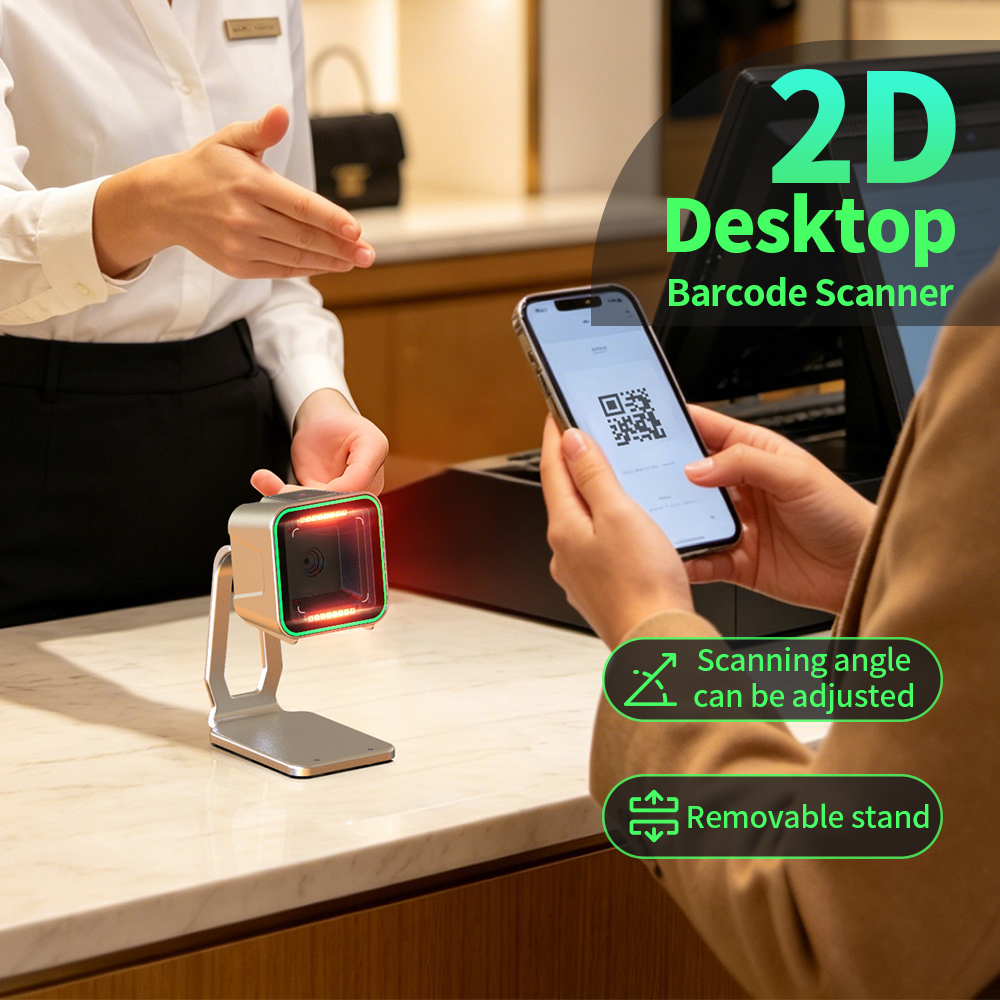

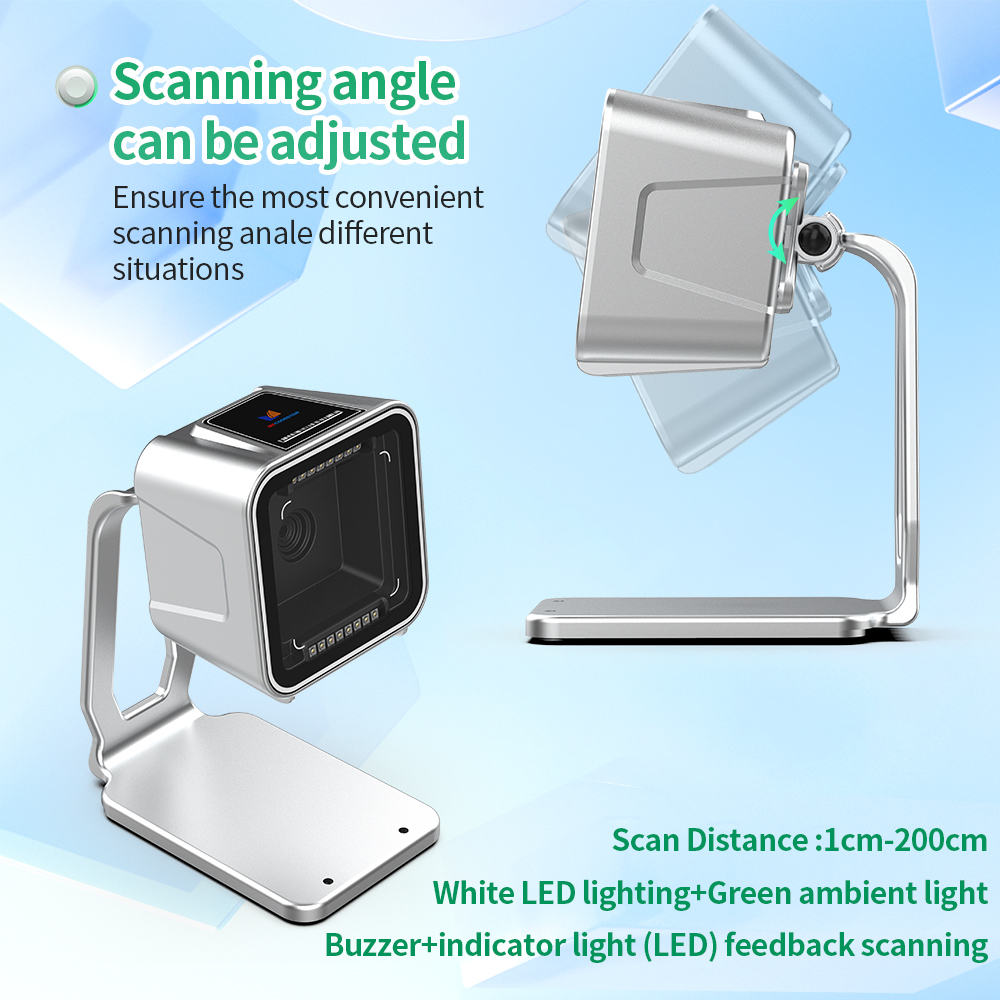

l Unique appearance design, adjustable angle up and down，Removable stand
design more flexible use,
l Powerful CMOS image decoding capability.Support reading 1D/2D barcode &
mobile payment code,
l The lighting automatically adjusts brightness based on the scanning distance.Can
better compatible to usage scenarios such as cash register and payment.
| GT-8900G Technical Specifications | |||||||
| Model | GT-8900G | ||||||
| Product Name | 2D Wired Presentation Scanner | ||||||
| Physical Specifications | |||||||
| Material | ABS + PVC + SIL + PPM | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Operating Current | 383.3mA(operating);331mA(standby)405.4mA(peak) | ||||||
| Power Consumption | 1.79W(operating);1.53W(standby);1.88W(peak) | ||||||
| Weight | 195.0g±5g(excluding cable) | ||||||

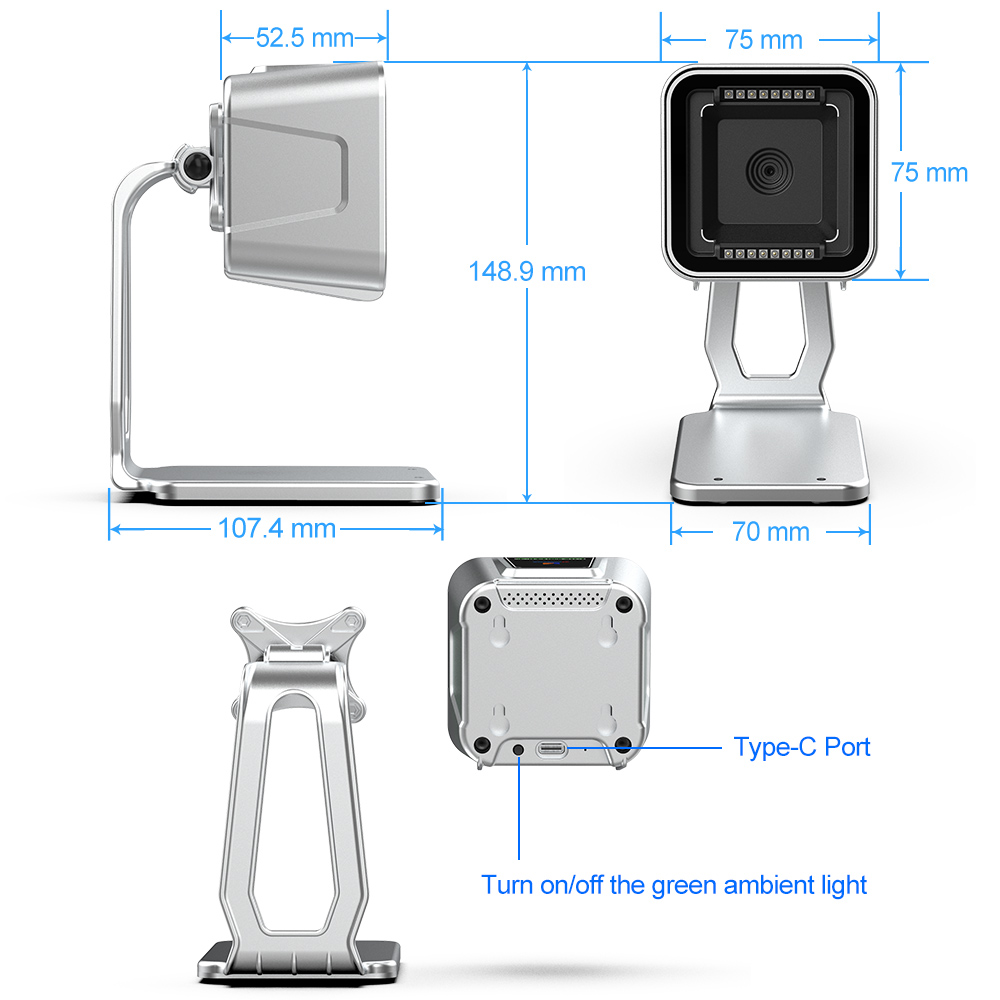

| Dimensions | Dimensions with Stand | L × W × H:75*107.5*148.8(unit: mm) | |||||
| Scanner Dimensions | L × W × H:75*78.4*52.5(unit: mm) | ||||||
| Color | Silver | ||||||
| Performance Specifications | |||||||

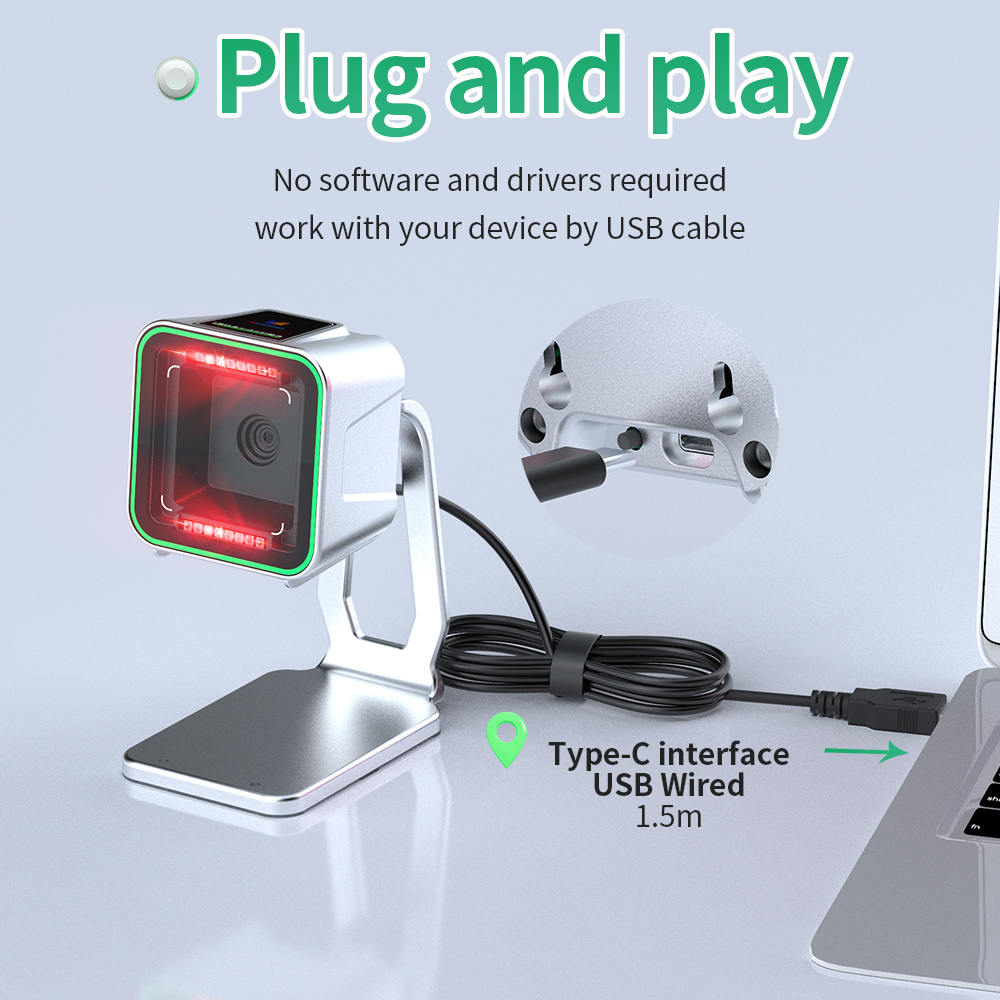

| Interface | USB ;USB COM | ||||||

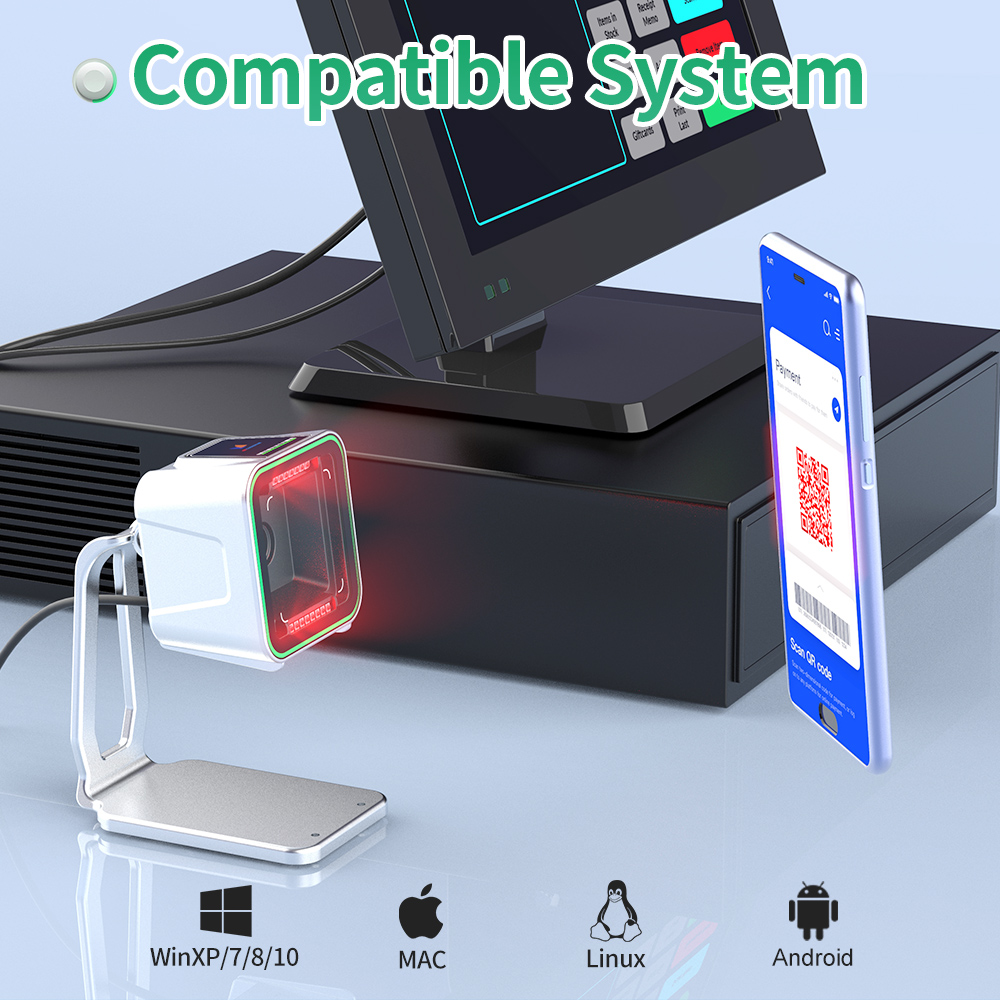

| Supported Operating Systems | Linux,Android,Windows XP, 7, 8, 10,MAC | ||||||
| Supported Keyboard Languages | United States;Czechoslovakia;Belgium; Denmark; Canada;Finland;France;Germany;Greece;Hungary;Italy;Latin America(Spanish);Netherlands;Norway;Portugal;Poland;Russia;Romania;Spain;Japan; United Kingdom;Sweden;Turkey F;Turkey Q;Brazil; | ||||||

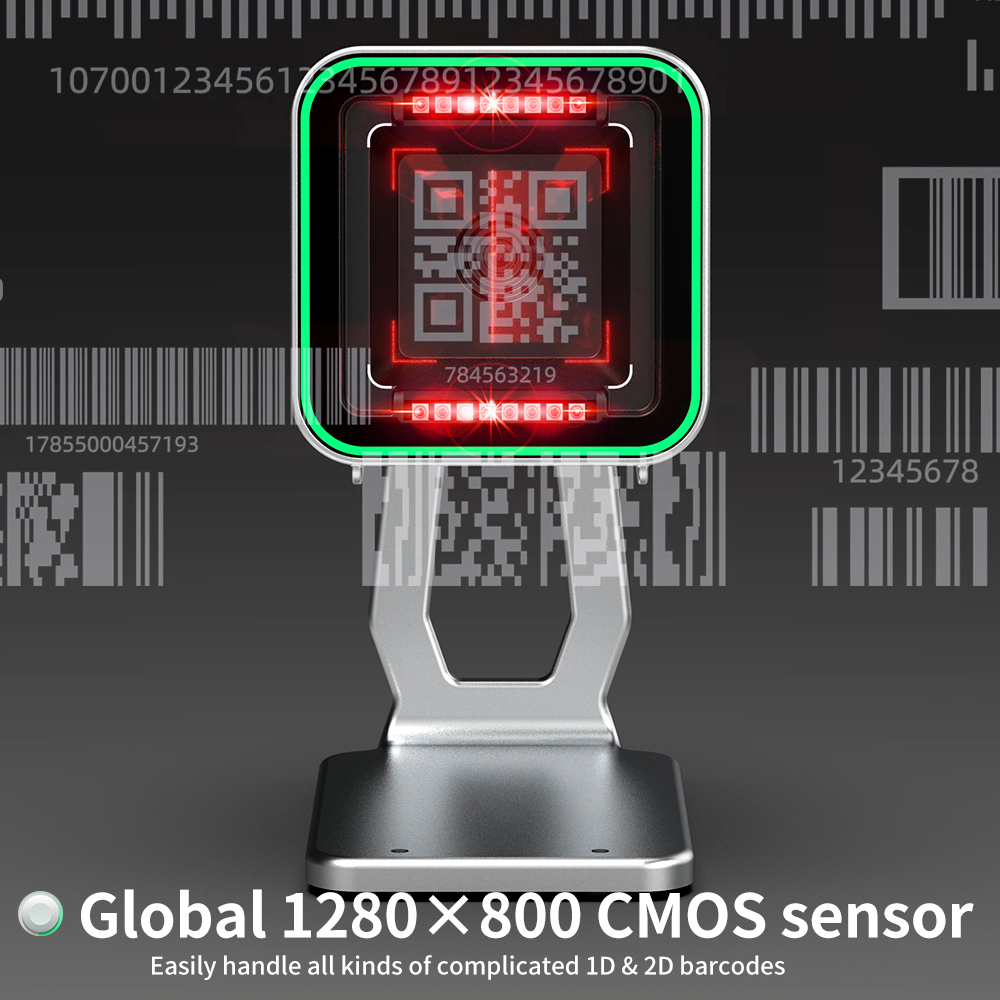

| Sensor | CMOS sensor global-shutter 1280x800 | ||||||
| Light Source | Red LED illumination+green ambient light | ||||||
| Processor | 32-bit ARM MCU + DSP | ||||||
| Motion Tolerance | Code128: 92cm/sec QR: 97cm/sec | ||||||
| Minimum Resolution | 1D barcodes≥4mil 2D barcodes≥5mil | ||||||
| Bit Error Rate | 1/5,000,000 | ||||||
| Scanning Method | Image | ||||||
| Trigger Mode | Sensing Mode;Continuous Mode;Normal Mode | ||||||
| Feedback | Buzzer+indicator light(LED) | ||||||
| Print Contrast | ≥25% | ||||||
| Scan Angle | Roll 360°,Horizontal 37°,Vertical 26° | ||||||

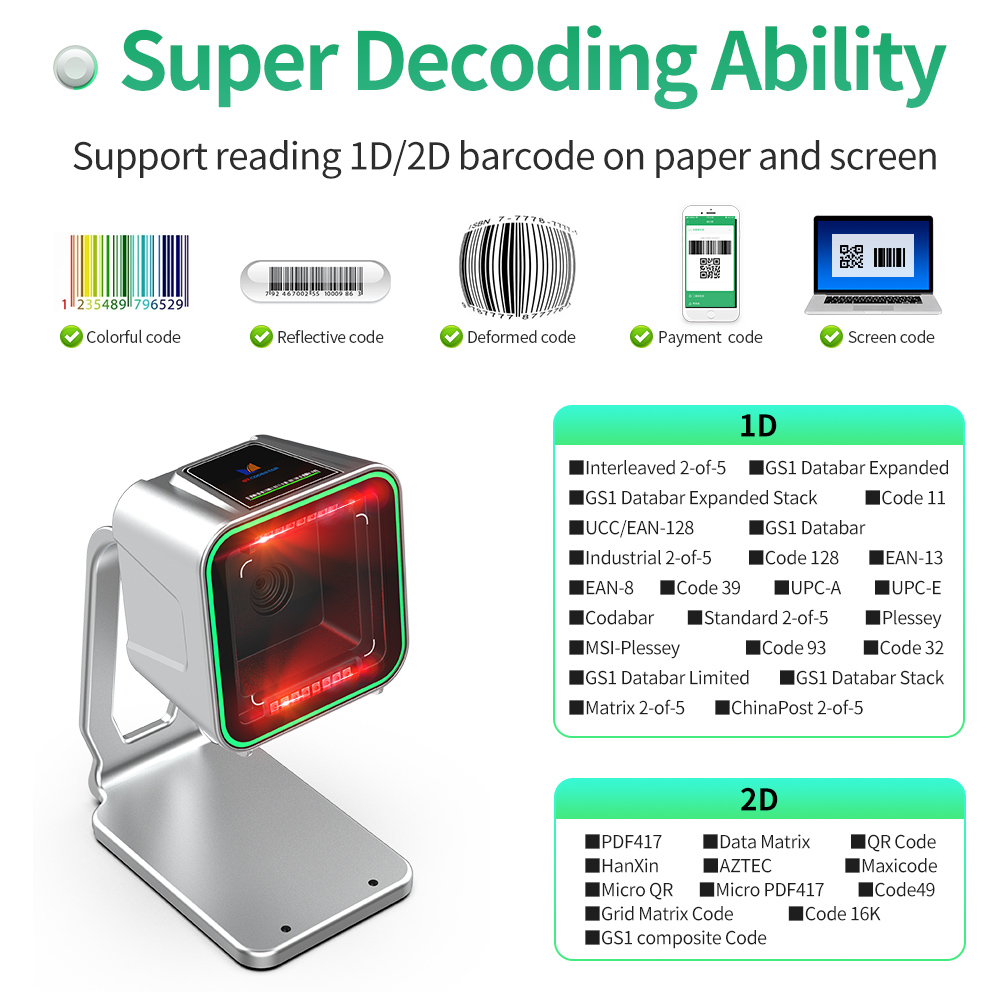

| Supported Symbologies | 1D | ◎Interleaved 2-of-5 ◎GS1 Databar Expanded Stack ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Industrial 2-of-5 ◎Code 128 ◎EAN-13 ◎EAN-8 ◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar ◎Standard 2-of-5 ◎Plessey ◎MSI-Plessey ◎Code 93 ◎GS1 Databar Limited ◎GS1 Databar Expanded ◎GS1 Databar Stack ◎Matrix 2-of-5 ◎ChinaPost 2-of-5 ◎Code 32 | |||||
| 2D | ◎PDF417 ◎Data Matrix ◎QR Code ◎HanXin ◎AZTEC ◎Maxicode ◎Micro QR ◎Micro PDF417 ◎GS1 composite Code | ||||||
| Depth of Field (Reference) | QR 14mil:1cm - 15cm PDF417 11mil: 1cm - 20cm EAN-13 10mil:1cm - 18cm Code128 8mil: 1cm - 17cm WeChat Pay code :1cm - 24.5cm | ||||||
| Environmental Specifications | |||||||
| IP Rating | IP42 | ||||||
| Operating Temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85% (non-condensing) | ||||||
| Storage Humidity | 20% to 85% (non-condensing) | ||||||
| ESD Protection | 15 kV air discharge | ||||||
| Drop Resistance | free fall1.2m(onto concrete) | ||||||
| Ambient Light | 0→100000Lux | ||||||
| Certifications | |||||||
| Solutions FAQ | |||||||||
| Q：Can not turn on or turn off immediately after turning on | |||||||||
| A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged) | |||||||||
| Q：Barcode data is not uploaded | |||||||||
| A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range) | |||||||||
| Q：There is a laser line, but can't read the bar code. | |||||||||
| A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual. | |||||||||
| Q：The scanned data is displayed incorrectly on the host | |||||||||
| A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center. | |||||||||
| Q：Other cases cannot be decoded | |||||||||
| A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again. |
