• Super wide-angle window, long-distance reading. Quickly read all kinds of
1D/2D codes and support scanning by mobile payment devices
• Can be embedded in various retail/ticketing and other self-service terminal
equipment
• Support China ID and passport MRZ, POST CODE and Invoice Function
| GT-9800F Technical Specifications | |||||||
| Model | GT-9800F | ||||||

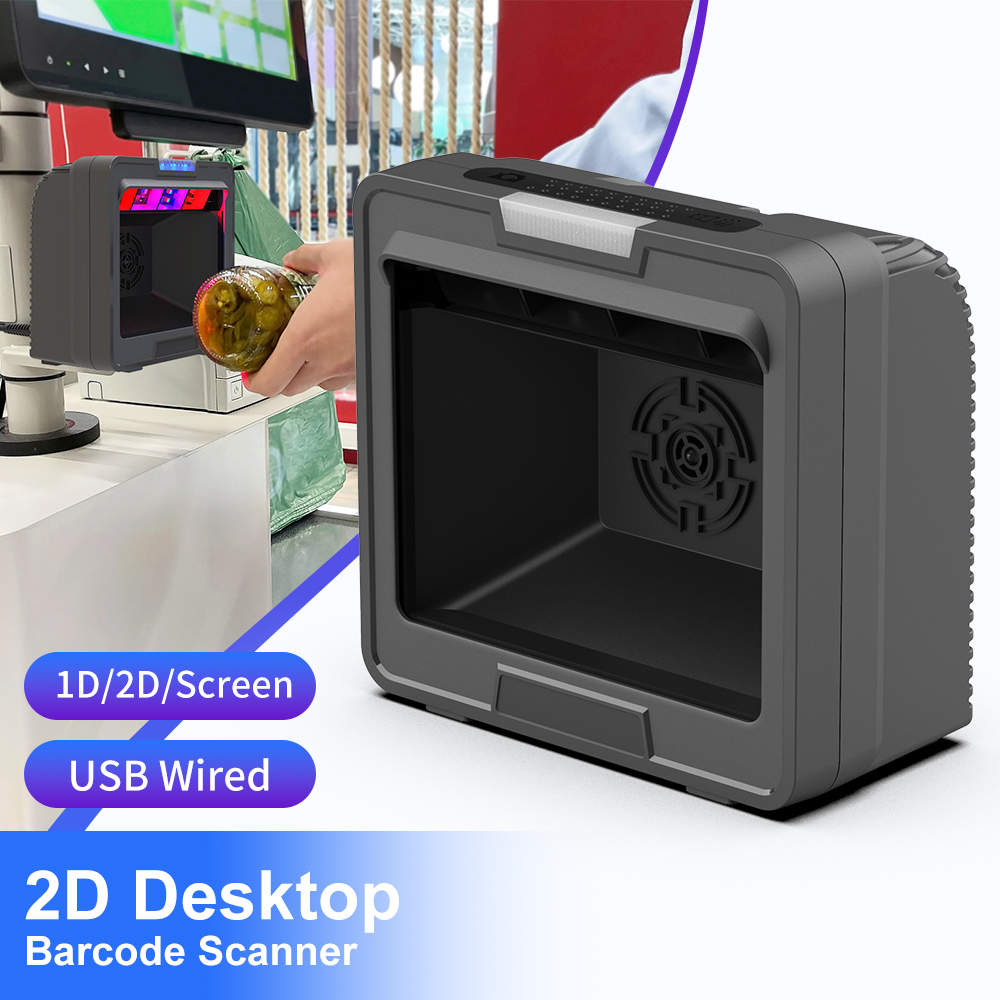

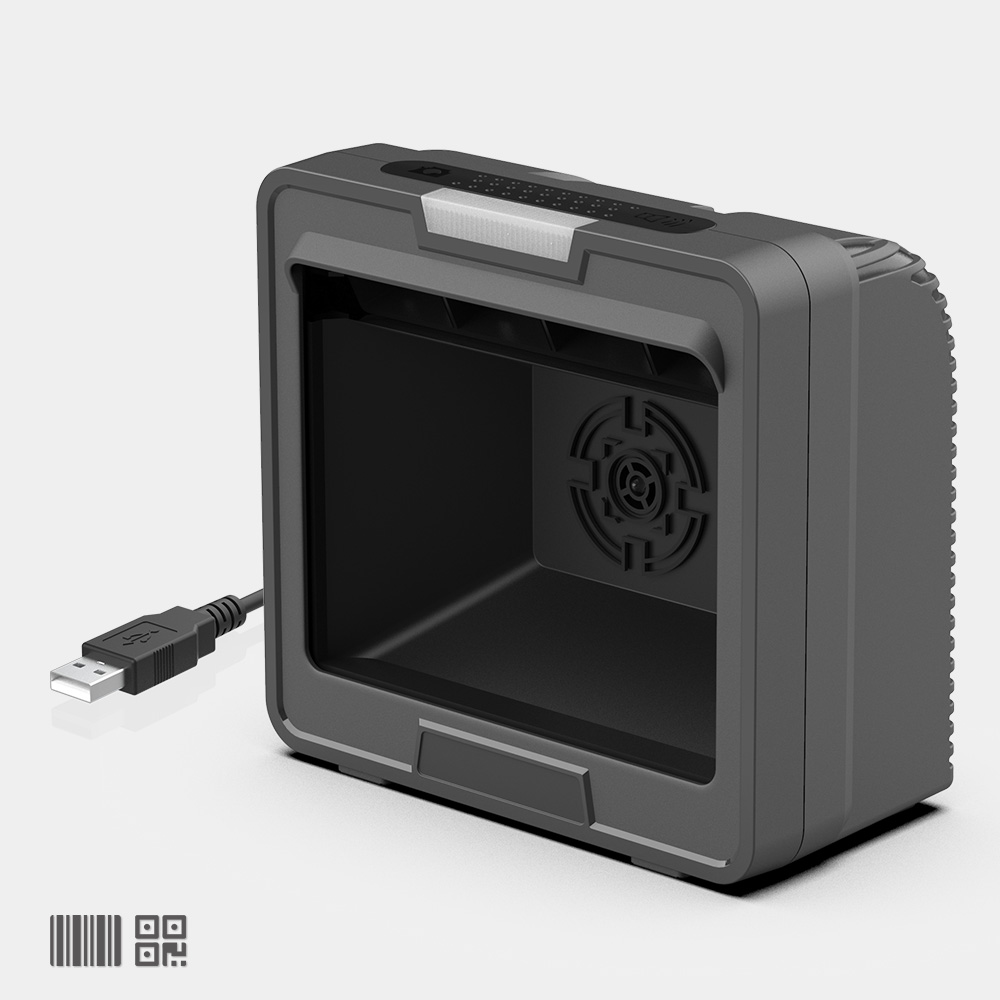

| Product Name | Large-format 2D Red-light Presentation Scanner | ||||||
| Physical Specifications | |||||||
| Material | ABS + PC | ||||||
| Power Supply | DC 5V 2A | ||||||
| Power Consumption | 1.15W(operating);0.80W(standby);1.80W(peak) | ||||||
| Weight | 285.0g±5g(excluding cable) | ||||||

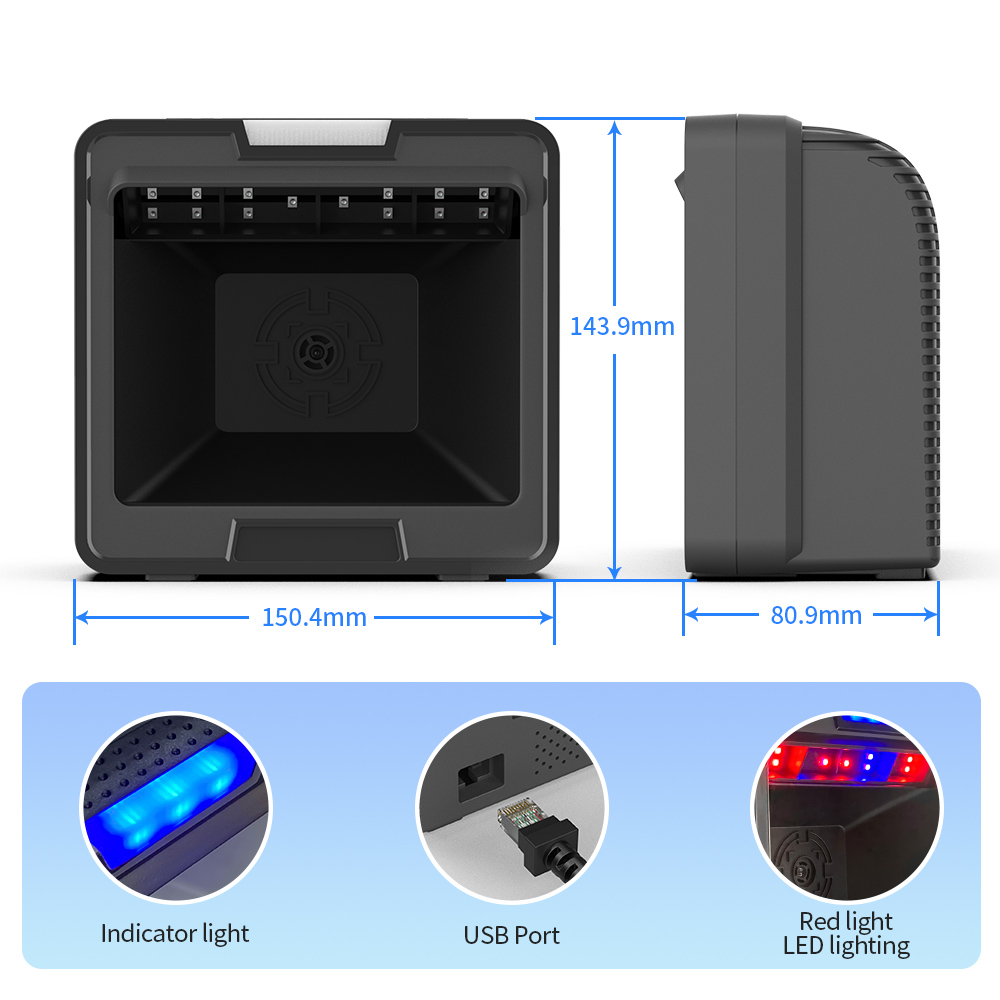

| Dimensions | L × W × H:150.4*143.9*81.4mm | ||||||
| Color | Black | ||||||
| Performance Specifications | |||||||

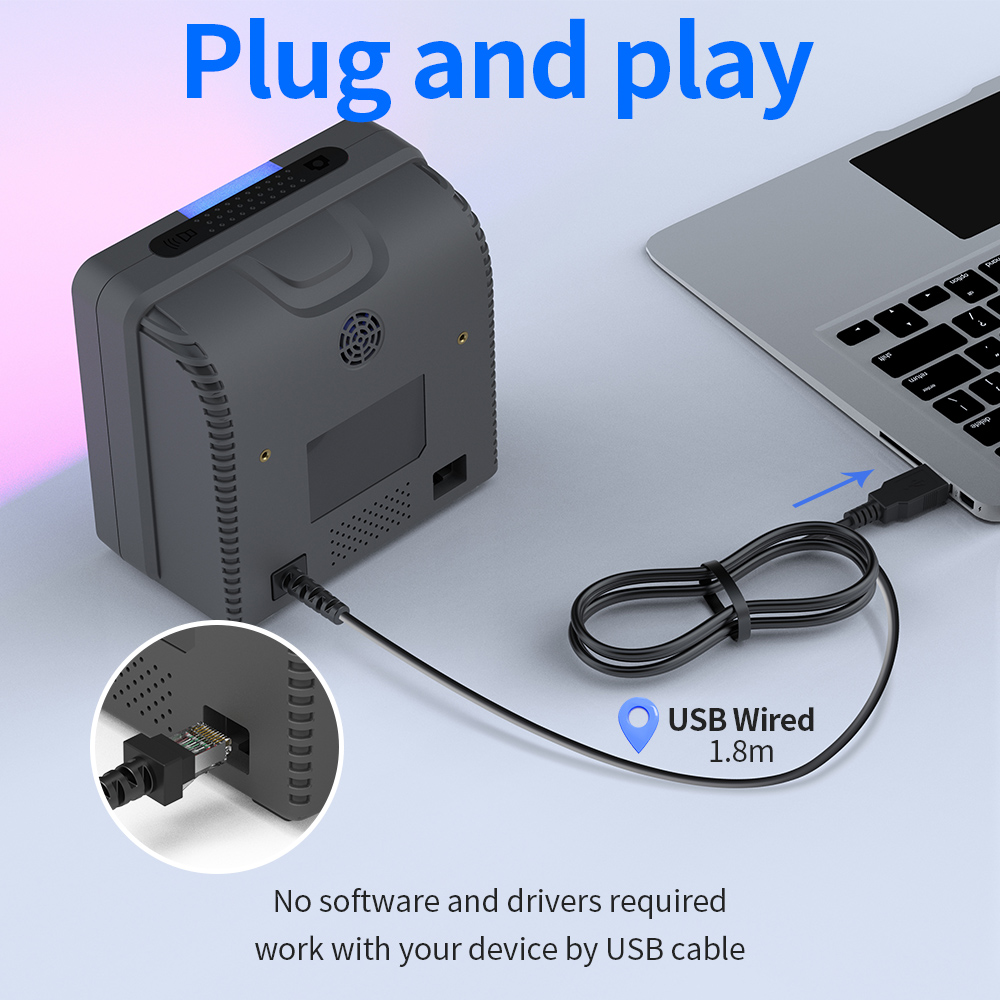

| Interface | USB;(customizable RS-232 port) | ||||||
| Supported Operating Systems | Linux,Android,Windows XP, 7, 8, 10,MAC | ||||||
| Supported Keyboard Languages | United States/China(US English);Greece (Greek);Netherlands(Dutch);Spain(Spanish );Switzerland(German);Brazil(Portuguese);Denmark;United Kingdom(UK English);Italy(Italian);France(French);Germany(German);Hungary;Sweden(Swedish);Slovakia;Portugal(Portuguese);Romania;Belgium(French);Turkish-F;Turkish-Q;Poland(Polish);Russia(Russian);Arabic;Thailand(Thai); [Supports virtual keyboard] | ||||||
| Sensor | CMOS global shutter 1280×800 | ||||||
| Light Source | Red LED | ||||||
| Processor | 32-bit ARM MCU + DSP | ||||||
| Motion Tolerance | Code39: 2.35m/sec QR: 2.63m/sec | ||||||
| Resolution | ≥4mil | ||||||
| Bit Error Rate | 1/5,000,000 | ||||||
| Scanning Method | Image | ||||||
| Trigger Mode | Image Mode | ||||||
| Feedback | Buzzer+indicator light(LED) | ||||||
| Mirrored Barcodes | Supported | ||||||
| ID Card Reading | Supports Chinese mainland ID card reading | ||||||
| Invoice Barcode Support | Supported | ||||||
| postal codes | Supported | ||||||

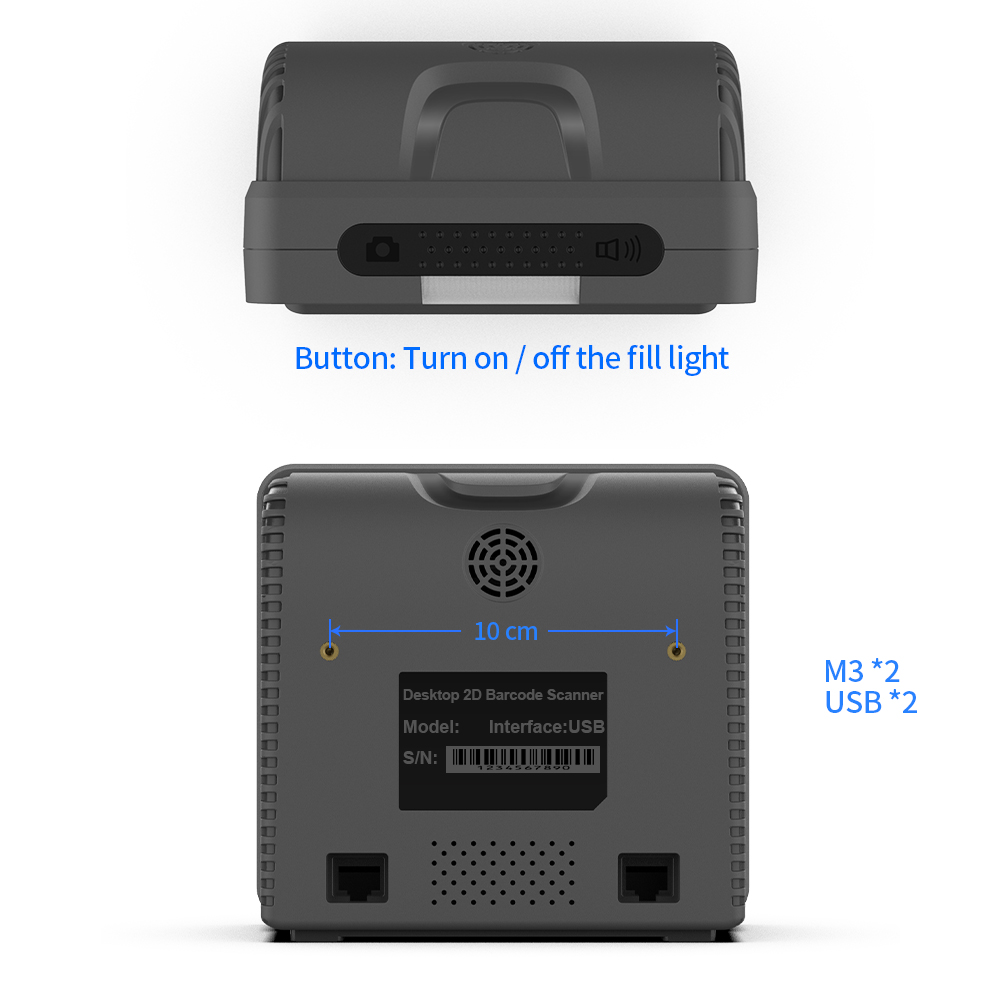

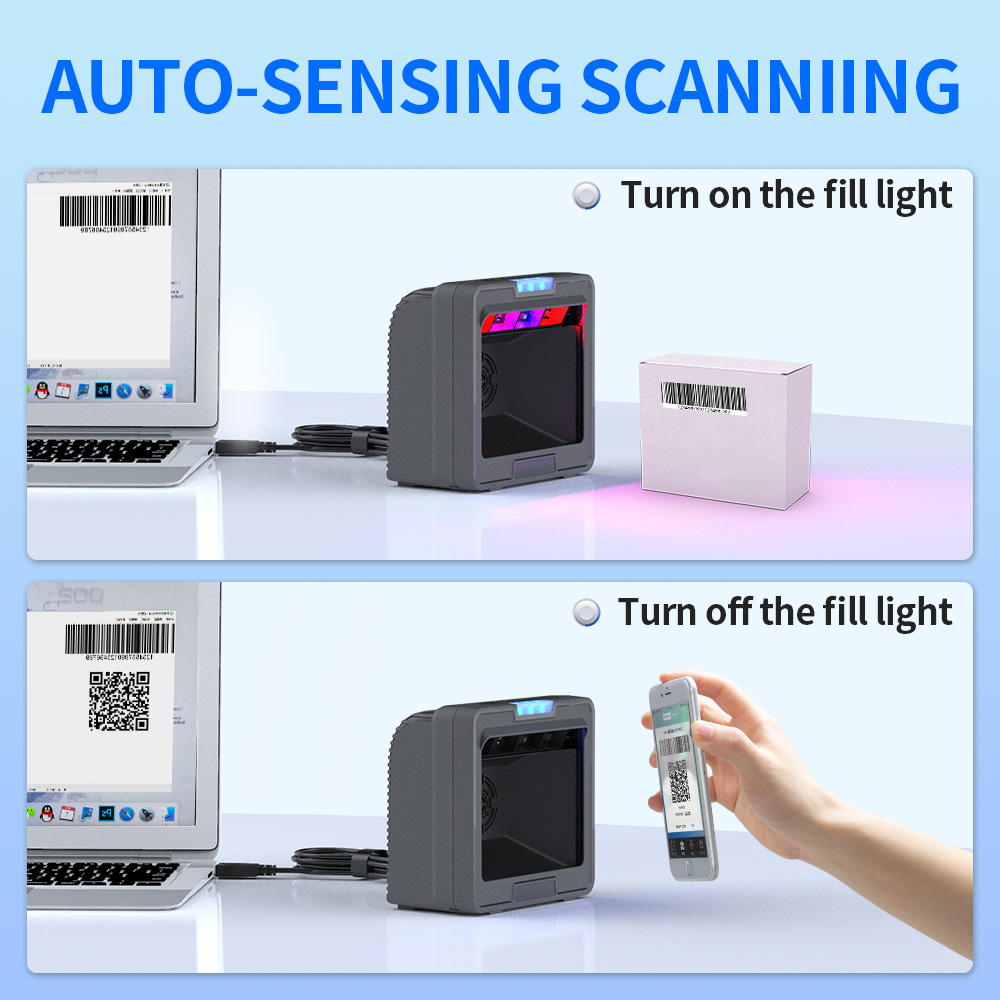

| Button | Illumination On/Off | ||||||
| Print Contrast | ≥25% | ||||||
| Field of View | Roll360°,Horizontal43°,Vertical58° | ||||||

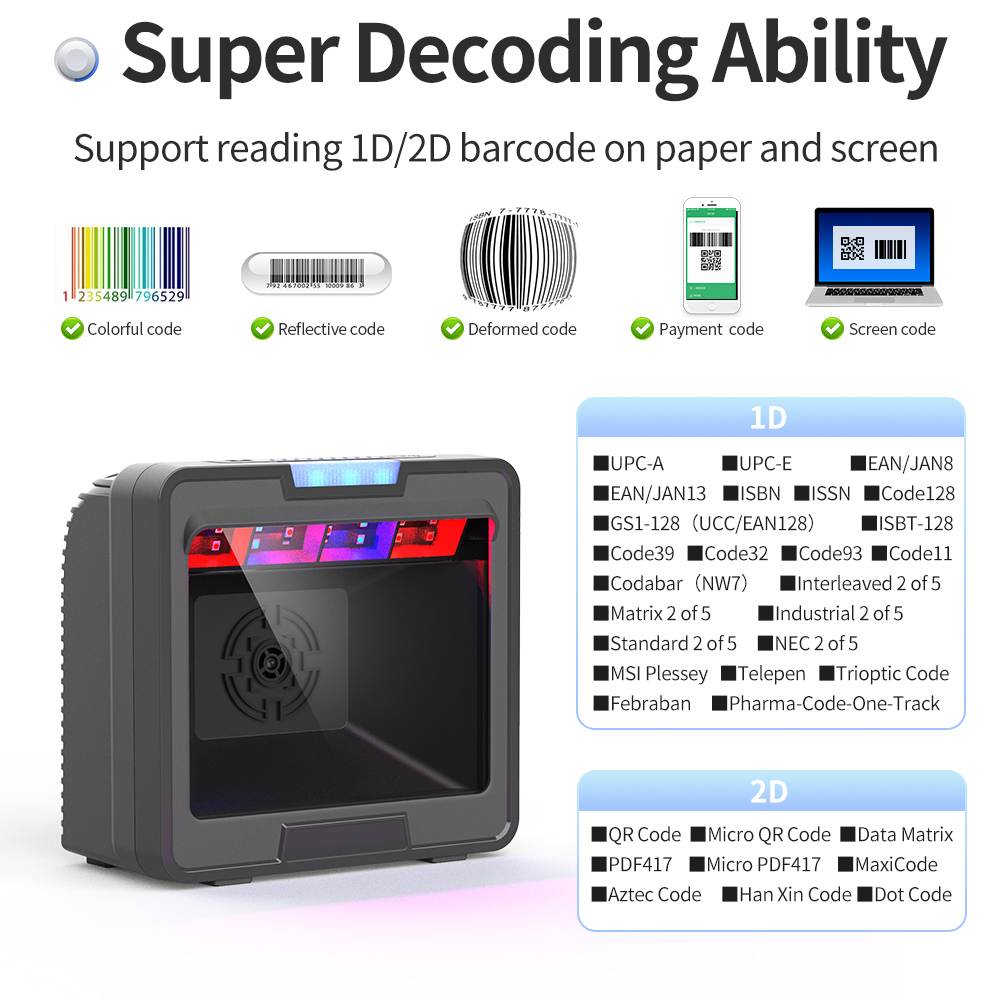

| Supported Symbologies | 1D | ■UPC-A ■UPC-E ■EAN/JAN8 ■EAN/JAN13 ■ISBN ■ISSN ■Code128 ■GS1-128(UCC/EAN128) ■ISBT-128 ■Code39 ■Code32 ■Code93 ■Code11 ■Codabar(NW7) ■Interleaved 2of5 ■Matrix 2of5 ■Industrial 2of5 ■Standard 2of5 ■NEC 2of5 ■MSI Plessey ■Telepen ■Trioptic Code ■Febraban(Brazilian bank code) | |||||
| 2D | ■QR Code ■Micro QR Code ■Data Matrix ■PDF417 ■Micro PDF417 ■MaxiCode ■Aztec Code ■Han Xin Code | ||||||
| Other Symbologies | ■GS1 DataBar 14 ■GS1 DataBar Limited ■GS1 DataBar Expanded ■GS1 Composite Code ■OCR ■China Post Code ■Korea Post ■Australian Post ■British Post ■USPS Interlligent Mail ■Janpanese Post ■Planet Code ■Planet Code ■Postnet ■UPU 4-State ■KIX Code | ||||||
| Depth of Field | 5mil Code39: 1 cm -- 9 cm 13mil UPC-A : 1 cm -- 16 cm 10mil Code39 : 1 cm -- 16 cm 20mil QR Code : 1 cm -- 15 cm 10mil Data Matrix : 2 cm -- 10 cm Alipay payment code : 1 cm -- 50 cm WeChat Pay code : 1 cm -- 50 cm | ||||||
| Environmental Specifications | |||||||
| IP Rating | IP42 | ||||||
| Operating Temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85% (non-condensing) | ||||||
| Storage Humidity | 20% to 85% (non-condensing) | ||||||
| ESD Protection | 15 kV air discharge | ||||||
| Drop Resistance | free fall1.5m(onto concrete) | ||||||
| Note: Specifications are subject to change without notice. | |||||||
| Prepared by: Yang Wulue Reviewed by: Approved by: | |||||||
| Solutions FAQ | |||||||||
| Q：Can not turn on or turn off immediately after turning on | |||||||||
| A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged) | |||||||||
| Q：Barcode data is not uploaded | |||||||||
| A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range) | |||||||||
| Q：There is a laser line, but can't read the bar code. | |||||||||
| A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual. | |||||||||
| Q：The scanned data is displayed incorrectly on the host | |||||||||
| A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center. | |||||||||
| Q：Other cases cannot be decoded | |||||||||
| A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again. |
