X-1602B Wireless 2D Barcode Scanner
Application Industry
Medical treatment / Supermarket / Catering / Mobile payment

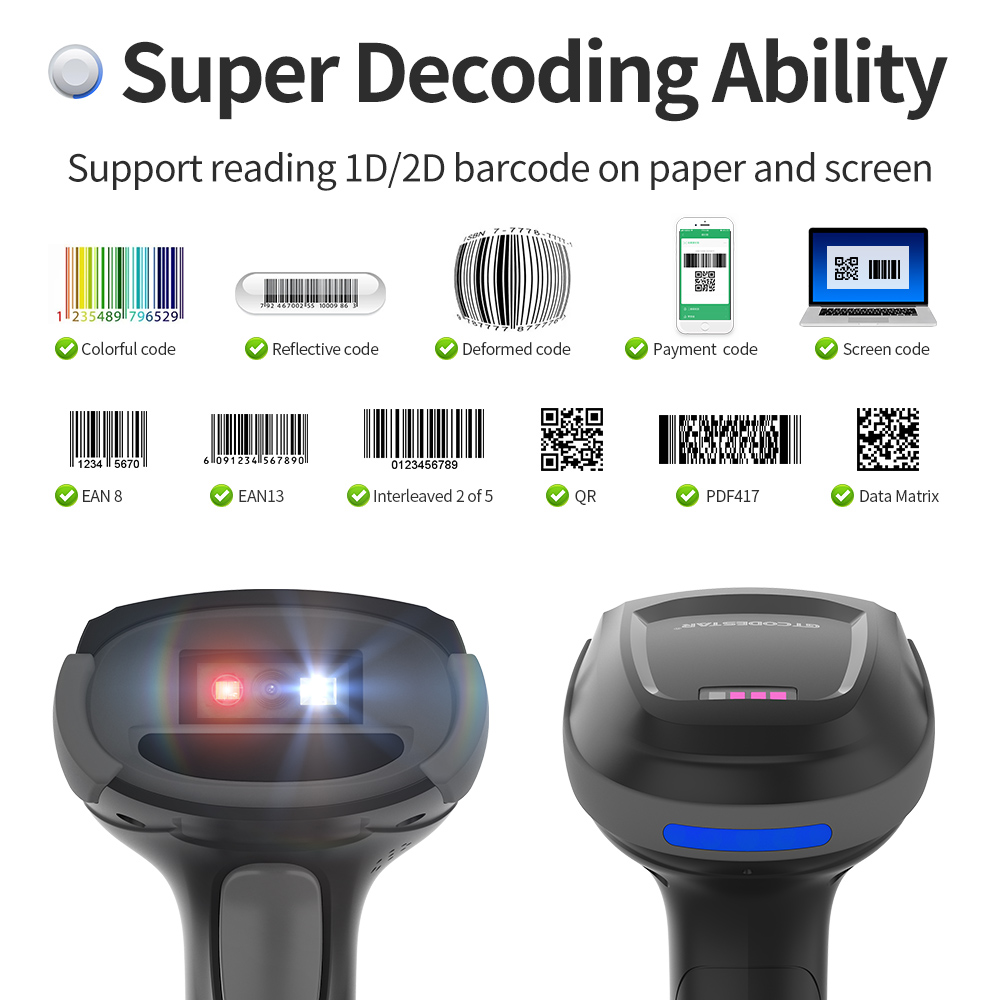

● Read common 1D/2D bar codes on screen or paper.
● White LED illumination + Red LED positioning. Automatically locks the light color
upon detecting a suitable fill‑ light condition for improved scanning performance.

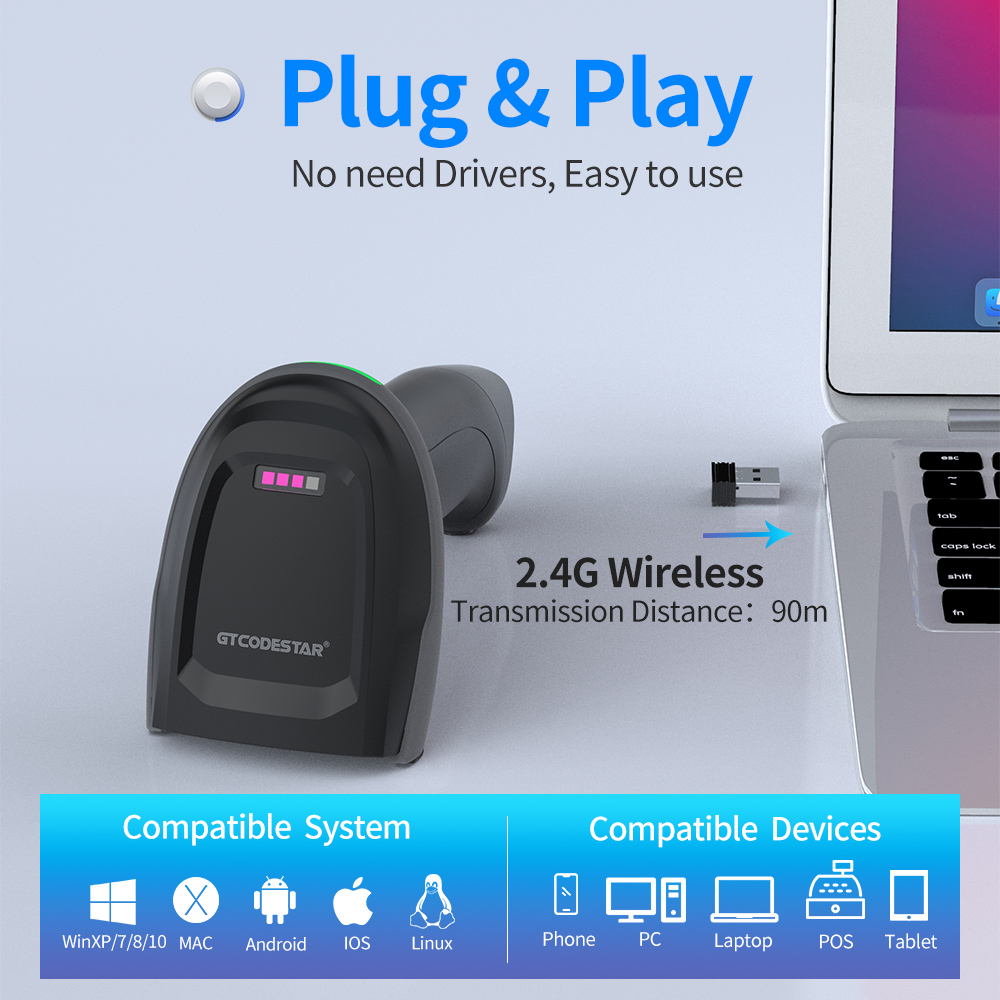

● Drive-free, plug and play.
● Support continuous scanning and automatic scanning.
| X-1501374 Technical Specifications | |||||||
| Model | X-1501374 | ||||||
| Product Name | 2D Wireless Barcode Scanner | ||||||
| Physical Specifications | |||||||
| Material | ABS + PC + TPU | ||||||

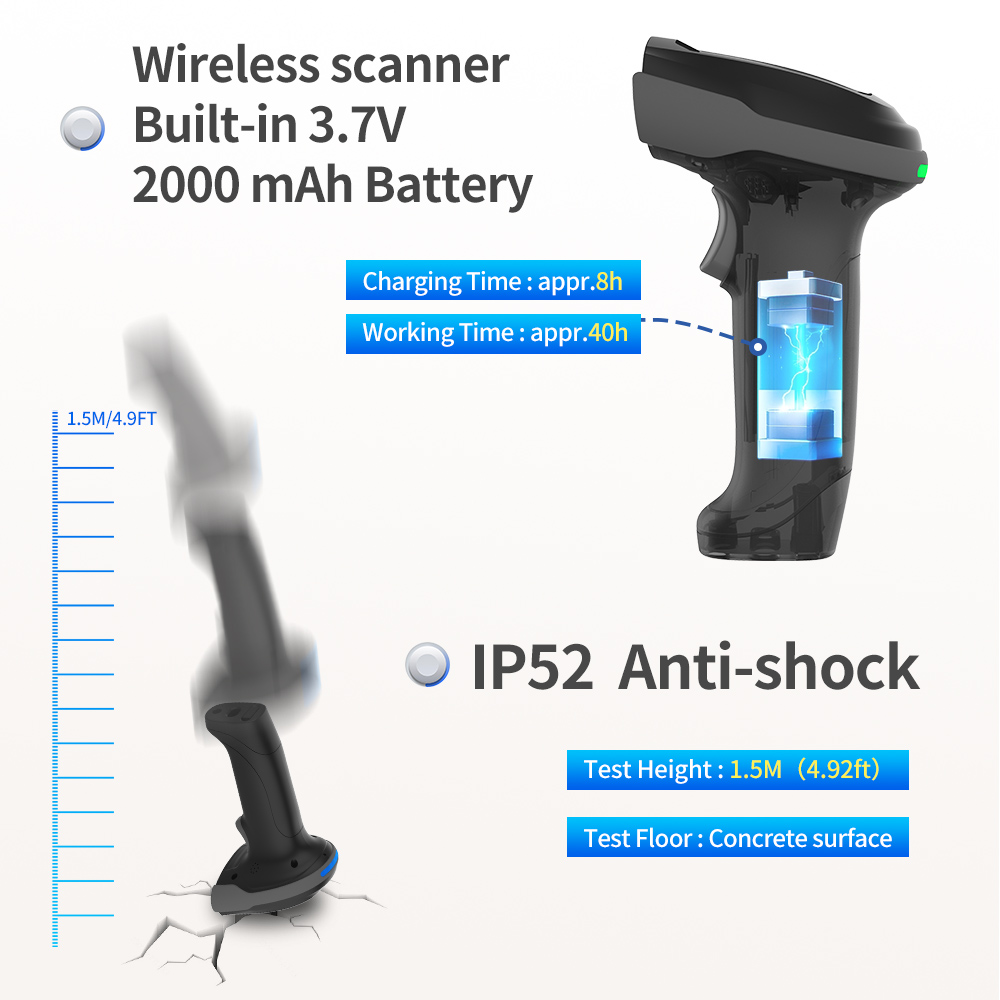

| Power Supply | Charging DC 5V ±5% ; built-in 3.7V 2000mA lithium battery | ||||||
| Power | 0.55W(operating); 0.35W(standby); 1.00W(peak) | ||||||
| Weight | Barcode Scanner | 169g±3g(excluding cable) | |||||
| Charging Cradle | 68g±3g(excluding cable) | ||||||
| Dimensions | Barcode Scanner | L × W × H:157.6*72.5*89.5(unit: mm) | |||||
| Charging Cradle | L × W × H:111.3*86.5*57.3(unit: mm) | ||||||
| Color | Black/Gray | ||||||

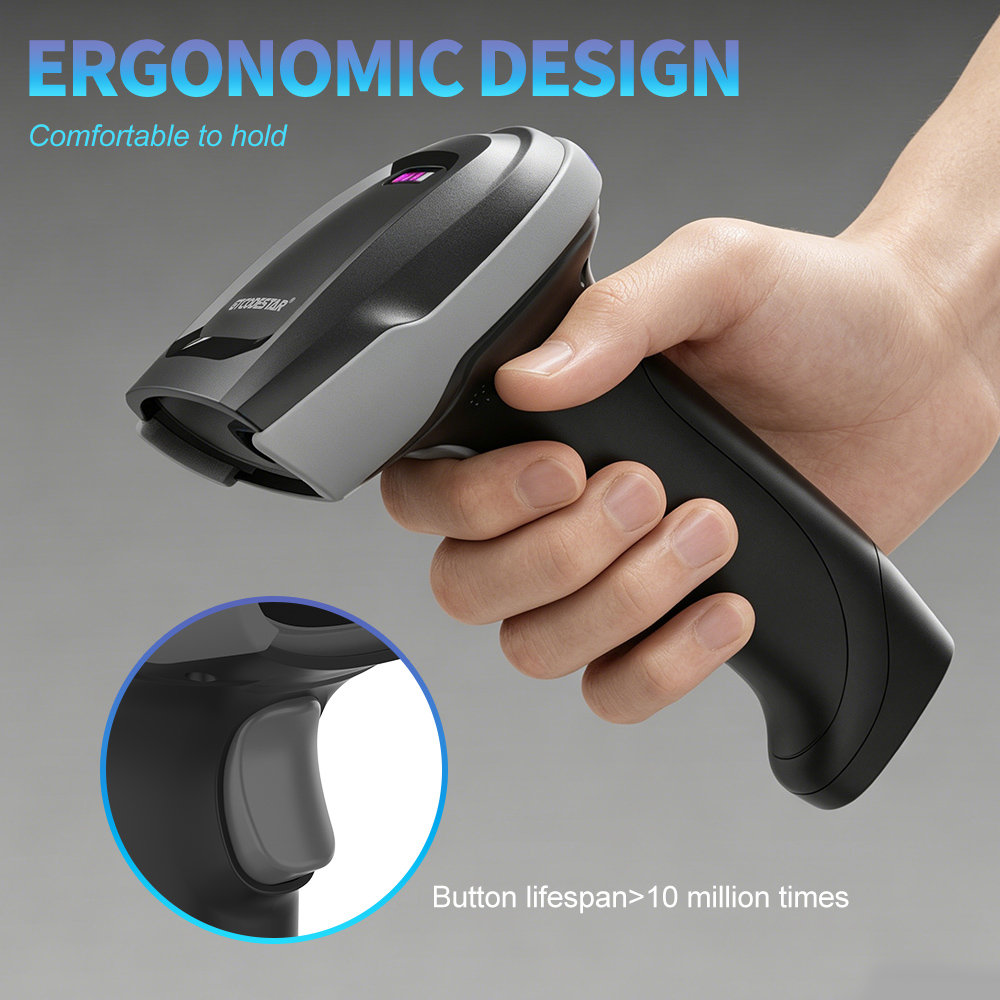

| Button Life | >10,000,000 presses | ||||||
| Performance Specifications | |||||||
| Data Upload | USB;2.4G;Bluetooth | ||||||
| Supported Operating Systems | Linux,Android,Windows XP, 7, 8, 10,MAC | ||||||
| Supported Keyboard Languages | English-United States;French-Canada;Dutch-Netherlands;Spanish-International;Latin American Spanish-Argentina;Portuguese-Brazil;Danish-Denmark;English-United Kingdom;Italian-Italy142;French-France;German-Germany;Portuguese-Portugal;Finnish-Finland;Turkish-F;Japanese; Russian-Russia;Northern Sami-Norway [Supports multiple keyboard layouts] | ||||||
| Sensor | CMOS sensor 1280×800 | ||||||
| Processor | 32-bit ARM MCU + BGA | ||||||
| Memory Capacity | 512 KB(custom capacity available) | ||||||
| Light Source | White LED illumination + red LED aiming | ||||||
| Motion Tolerance | Code128: 75cm/sec QR: 80cm/sec | ||||||

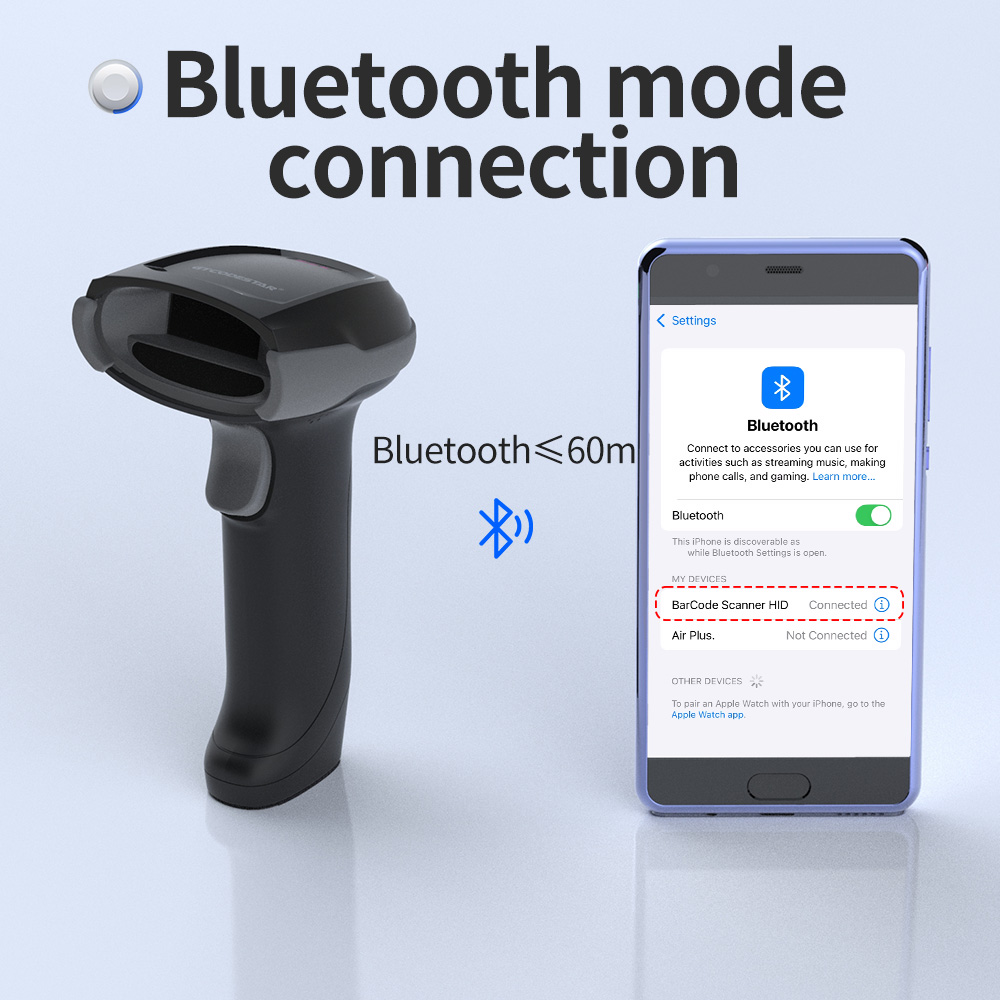

| Wireless Transmission Range | 2.4G≤90m(line of sight) Bluetooth≤60m(line of sight) | ||||||
| Scanning Method | Image | ||||||
| Resolution | 1D barcodes≥3mil 2D barcodes≥6mil | ||||||
| Bit Error Rate | 1/5,000,000 | ||||||
| Scanning Method | Image | ||||||
| Trigger Mode | Manual Trigger Mode;Continuous Scan Mode;Auto-sensing Mode | ||||||
| Feedback | Buzzer + indicator light | ||||||
| Scan Angle | Roll 360°,Horizontal 32°,Vertical 24° | ||||||
| Print Contrast | ≥25% | ||||||
| Charging Time | appr.6h | ||||||
| Continuous Operating Time | appr.12h | ||||||
| Supported Symbologies | 1D | ◎Interleaved 2-of-5 ◎GS1 Databar Expanded Stack ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Industrial 2-of-5 ◎Code 128 ◎EAN-13 ◎EAN-8 ◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar ◎Standard 2-of-5 ◎Plessey ◎MSI-Plessey ◎Code 93 ◎GS1 Databar Limited ◎GS1 Databar Expanded ◎GS1 Databar Stack ◎Matrix 2-of-5 ◎ChinaPost 2-of-5 ◎Code 32 | |||||
| 2D | ◎PDF417 ◎Data Matrix ◎QR Code ◎HanXin ◎AZTEC ◎Maxicode ◎Micro QR ◎Micro PDF417 ◎Grid Matrix Code ◎Code 16K ◎Code49 ◎GS1 composite Code | ||||||
| Depth of Field | QR 14.17mil 8 bytes:1cm - 20cm PDF417 7.50mil: 1cm - 19cm EAN-13 10mil:3cm - 30cm Code128 7.50mil 15 bytes: 5cm - 23cm WeChat Pay code :4cm - 50cm+ | ||||||
| Environmental Specifications | |||||||
| IP Rating | IP42 | ||||||
| Operating Temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85% (non-condensing) | ||||||
| Storage Humidity | 20% to 85% (non-condensing) | ||||||
| ESD Protection | 15 kV air discharge | ||||||
| Drop Resistance | free fall1.5m(onto concrete) | ||||||
| Ambient Light | 0→100000Lux | ||||||
| Certifications | |||||||
| Solutions FAQ | |||||||||
| Q：Can not turn on or turn off immediately after turning on | |||||||||
| A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged) | |||||||||
| Q：Barcode data is not uploaded | |||||||||

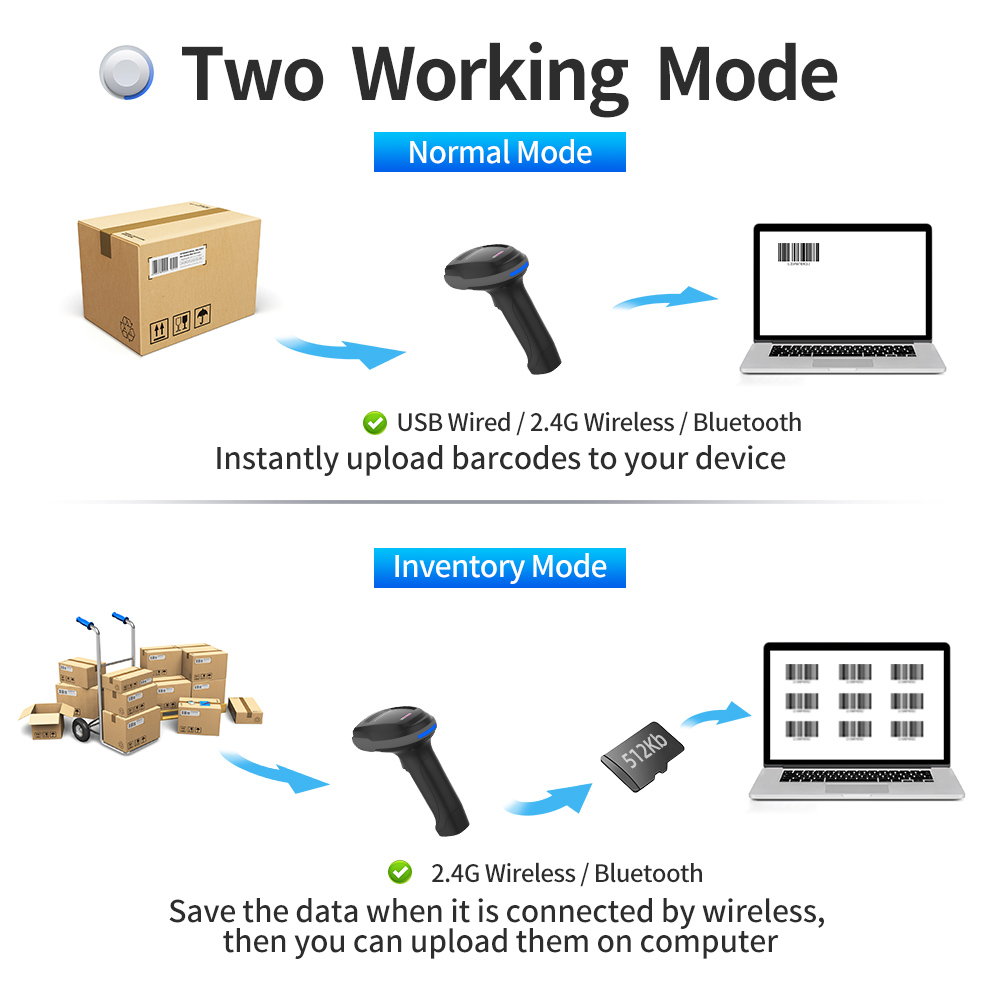

| A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range) | |||||||||
| Q：There is a laser line, but can't read the bar code. | |||||||||
| A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual. | |||||||||
| Q：The scanned data is displayed incorrectly on the host | |||||||||
| A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center. | |||||||||
| Q：Other cases cannot be decoded | |||||||||
| A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again. |
