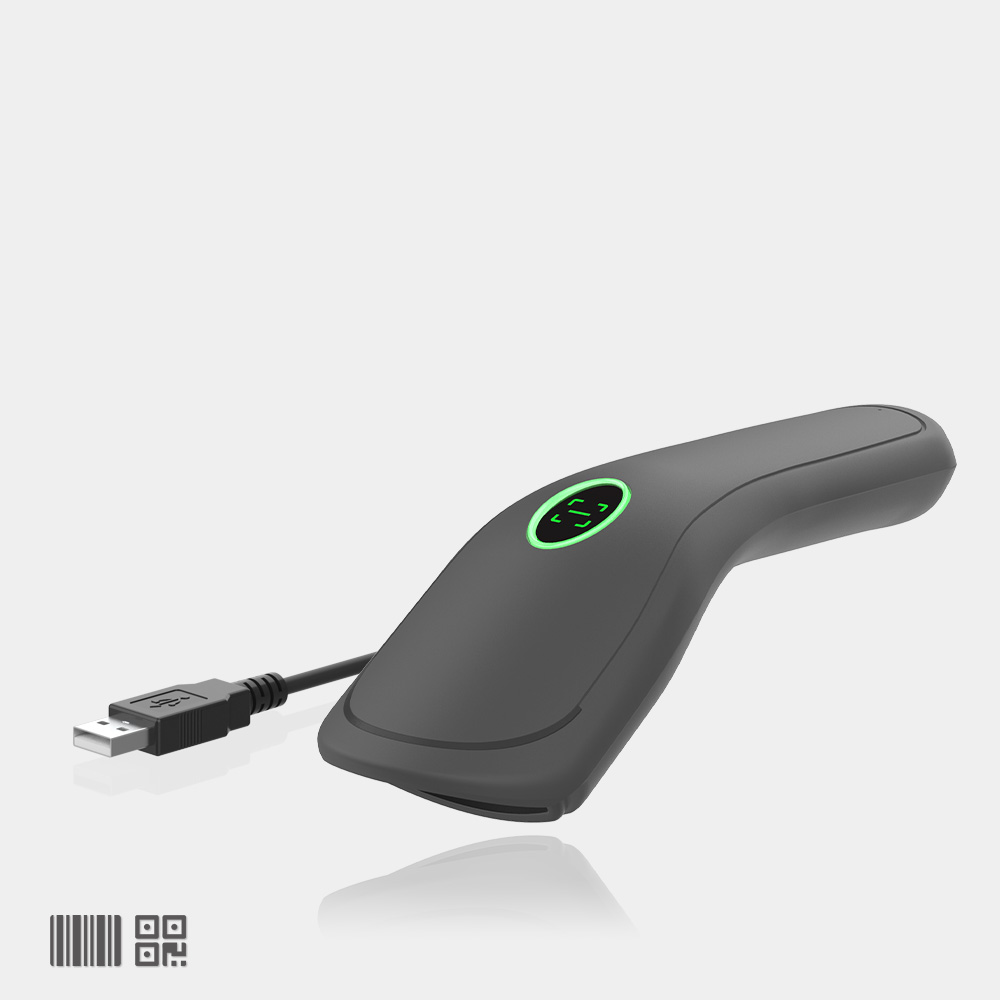

X-36181A CCD Wired Barcode Scanner
Application Industry
Medical treatment / Supermarket / Warehouse / Logistics

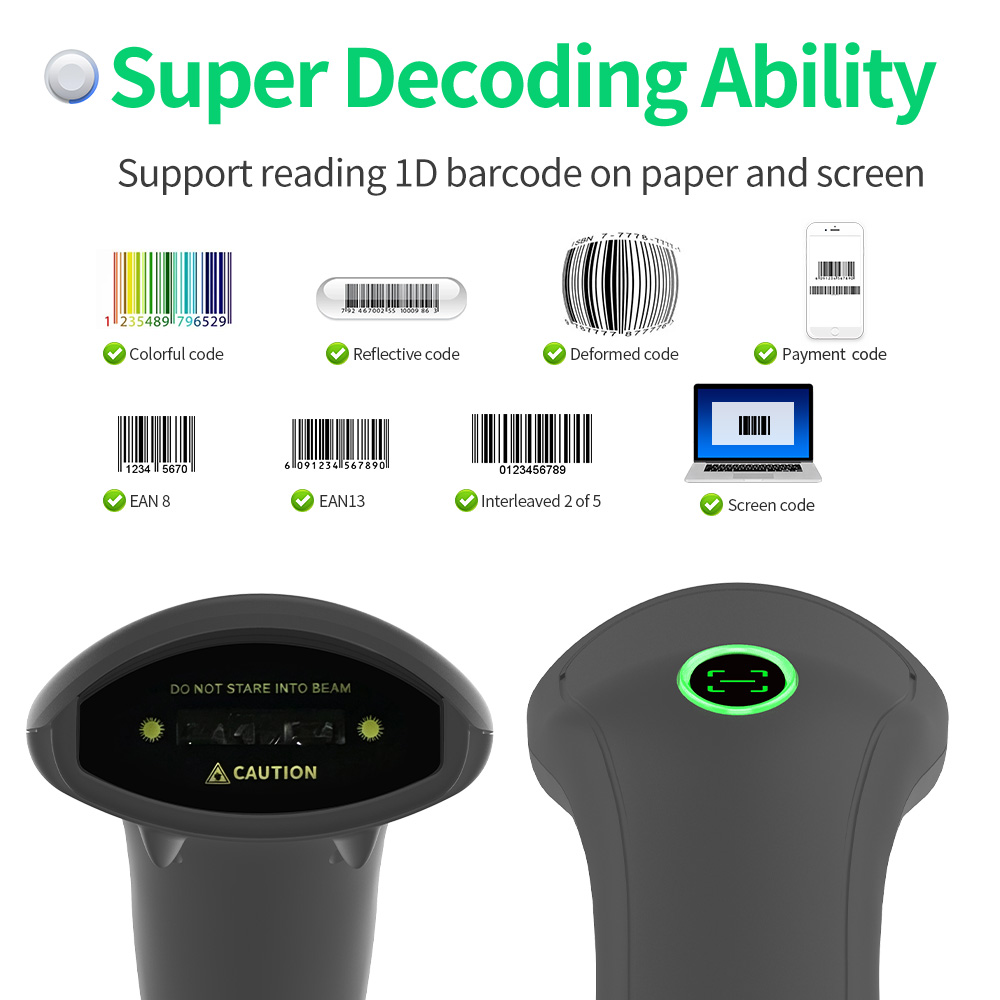

● Support reading 1D/2D barcode on paper and screen
● Hall switch with self-sensing.It will be auto detecting when the scanner put on the
stand,and it becomes to manual trigger mode when the scanner is picked up from the
stand
● Ultra long communication distance, 2.4G wireless distance is 90m(open area).
Bluetooth distance is 60m
| X-36181 Technical Specifications | |||||||
| Model | X-36181 | ||||||
| Product Name | Wired CCD Barcode Scanner | ||||||
| Physical Specifications | |||||||
| Material | ABS + PC | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Power Consumption | 125mA(operating);12.3mA(standby);134mA(peak) | ||||||
| Operating Current | 0.66W(operating);0.064W(standby);0.70W(peak) | ||||||
| Weight | 79g±5g(excluding cable) | ||||||
| Dimensions | L × W × H:181.1 * 59.0 * 47.1(unit: mm) | ||||||
| Color | Gray; White; Black | ||||||
| Button Life | >100,000 presses | ||||||
| Performance Specifications | |||||||
| Interface | USB;(RS232customizable) | ||||||
| Supported Operating Systems | Linux,Android,Windows XP, 7, 8, 10,MAC | ||||||
| Supported Keyboard Languages | United States(English);French;Dutch;Spanish(International);Latin American Spanish;Portuguese;Northern Sami;Danish;Canada;United Kingdom(English);Swedish;Slovak;Dutch;Finnish;Slovak;TurkeyQ;TurkeyF;Czech;Polish214;Croatian;Hungarian;Japanese;Russian;Italian(Italy142);German;Egypt;Virtual keyboard | ||||||
| Light Source | 632nm red laser diode(LED) | ||||||
| Resolution | ≥4mil | ||||||
| Bit Error Rate | 1/5,000,000 | ||||||
| Scan Speed | 300 scans/sec | ||||||

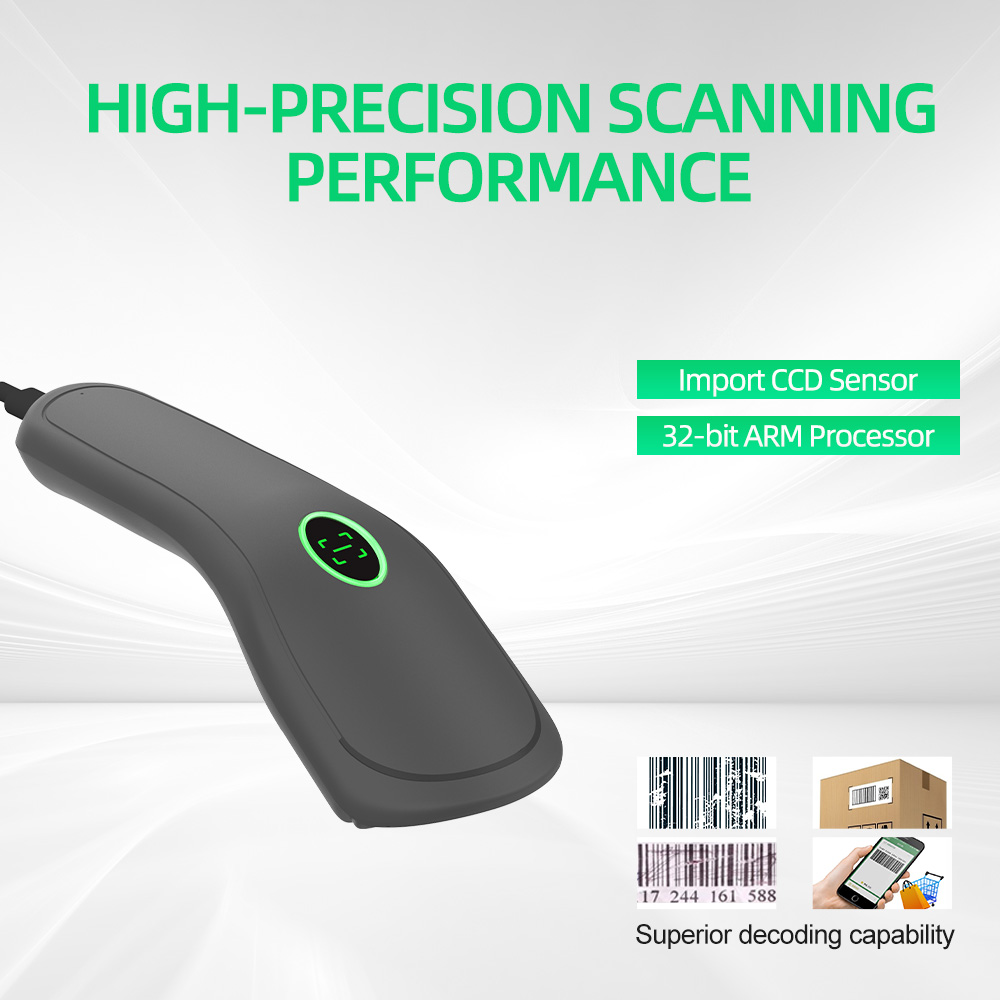

| Sensor | linear CCD sensor 1500pixels | ||||||
| Scanning Method | CCD | ||||||
| Trigger Mode | Manual Mode, Continuous Scan Mode, Auto-sensing Mode | ||||||
| Feedback | Buzzer+indicator light(LED) | ||||||
| Print Contrast | ≥30% | ||||||
| Scan Angle | Roll30°, Pitch65°, Skew65° | ||||||
| Supported Symbologies | ●Code25-Interleaved ●Code25-Standard ●Code25-Matri ●Code39-Regular ●Code39-FullASCII ●Code32 ●Code93-Regular ●Code93-FullASCII ●Code128 ●Datalogic 25 ●Codabar ●Datalogic 25 ●EAN/JAN-13 ●UPC-A ●JAN-8 ●Code11 ●UPCE | ||||||
| Depth of Field | Code39 5.83mil | 4.5 - 14 cm | |||||
| Code 128 4.17mil | 3.5 - 10 cm | ||||||
| Code 128 14.17mil | 8 - 37 cm | ||||||
| UPC-A 4.17mil | 3.5 - 7.5 cm | ||||||
| UPC-A 5.83mil | 4 - 13 cm | ||||||
| EAN/JAN-13 | 3 - 14 cm | ||||||
| Environmental Specifications | |||||||
| IP Rating | IP42 | ||||||
| Operating Temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temperature | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85% (non-condensing) | ||||||
| Storage Humidity | 20% to 85% (non-condensing) | ||||||
| ESD Protection | 15 kV air discharge | ||||||
| Drop Resistance | free fall1.5m(onto concrete) | ||||||
| Ambient Light | 0~10000LUX | ||||||
| Certifications | |||||||
| Solutions FAQ | |||||||||
| Q：Can not turn on or turn off immediately after turning on | |||||||||
| A：This situation is mostly caused by insufficient battery power, please charge in time to ensure sufficient power (the red light is on when charging, and the red light is off when fully charged) | |||||||||
| Q：Barcode data is not uploaded | |||||||||
| A：The scanner and receiver are not successfully matched, please match the machine according to the instructions; maybe the distance between the scanner and the receiver is far, please set it to inventory mode in advance (the barcode will be automatically uploaded within the acceptance range) | |||||||||
| Q：There is a laser line, but can't read the bar code. | |||||||||
| A：Maybe the barcode system is not turned on, follow the instructions to open it; try other barcodes to confirm whether the barcode has been damaged; it is also possible that the scanning angle is irregular,please adjust it according to the manual. | |||||||||
| Q：The scanned data is displayed incorrectly on the host | |||||||||
| A：Maybe the input method is wrong, please convert the input method to standard English or you can reset the barcode scanner, or contact the manufacturer's service center. | |||||||||
| Q：Other cases cannot be decoded | |||||||||
| A：It may be an error in the switching device, turn off the power of the device and connect the device and the scanner correctly, then turn on the power of the device, reset the scanner to the factory default state and scan the barcode again. |
